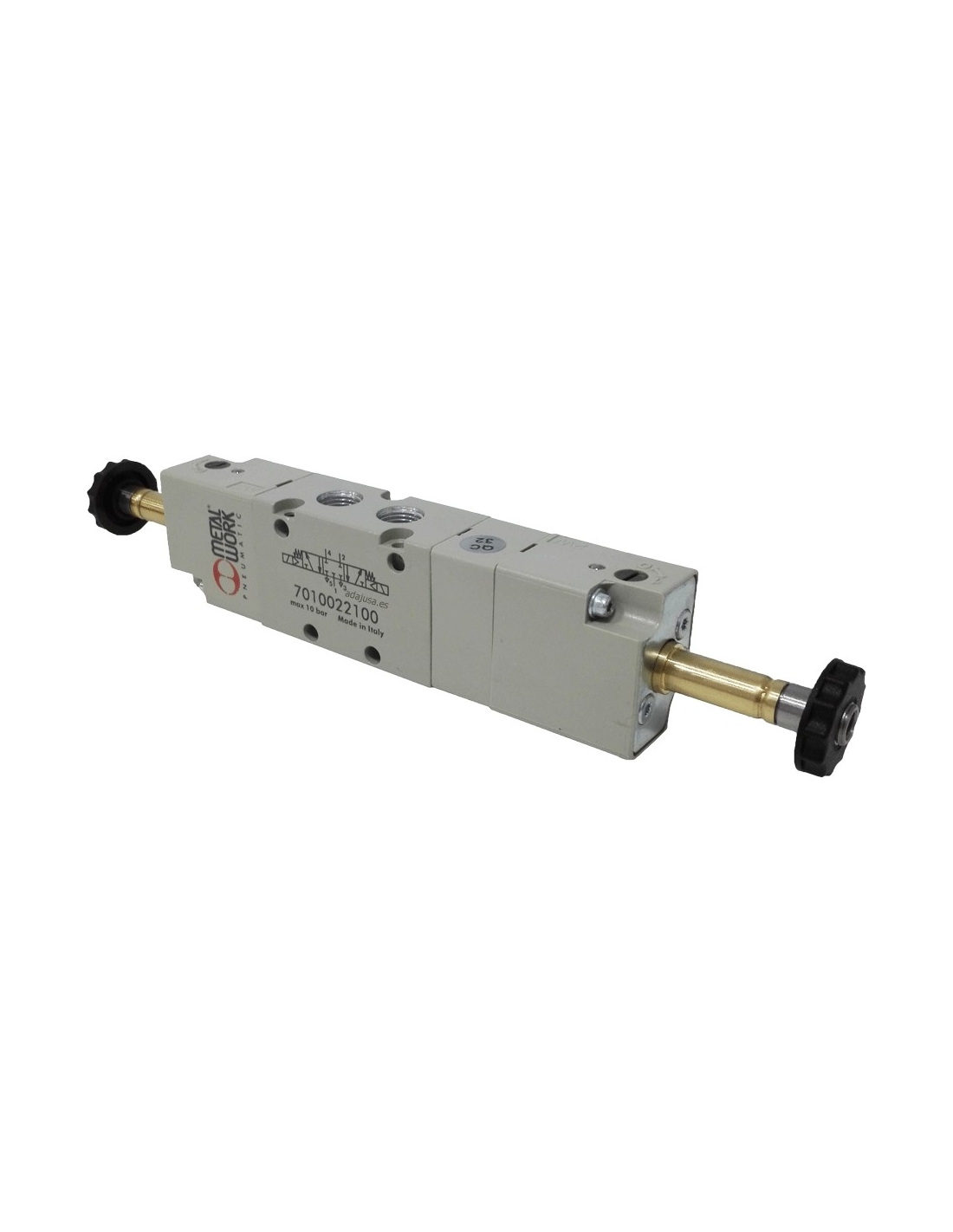

Solenoid valve 1/8 5-way 3 positions closed centres - Metal Work - ADAJUSA

Solenoid valve 1/8 5-way 3 positions closed centers - Metal Work

Name: Solenoid valve 1/8 5-way 3 positions closed centers - Metal Work
Brand: Metal Work
SKU: 7010022100
Price: 95.6747 EUR
Availability: PreOrder

€95.67 Tax included

€79.07 tax excl.

Solenoid valves 1/8", 5 ways and 3 positions, closed centers, metal body, for pneumatic applications for industrial or general use.

Part number: 7010022100

Esquema neumático electroválvula 5 vías 3 posciones centros cerrados

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valves of 1/8", 5 ways and 3 positions, closed centers, metallic body, for pneumatic applications of industrial or general use, the most common application is to control double acting cylinders. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if one coil is fed the cylinder moves forward, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, so the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder retracts.

Coil and connector not included.

Technical characteristics:

Manufacturer of the solenoid valve : Metal work.
Part number of the solenoid valve : 7010022100 - SOV 26 SOS CC
Working pressure of the solenoid valve : 2,5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
Manual operation: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work
Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
