Solenoid valve 1/8 5 ways bistable differential 230 Vac - Metal Work

€100.77 Tax included

€83.28 tax excl.

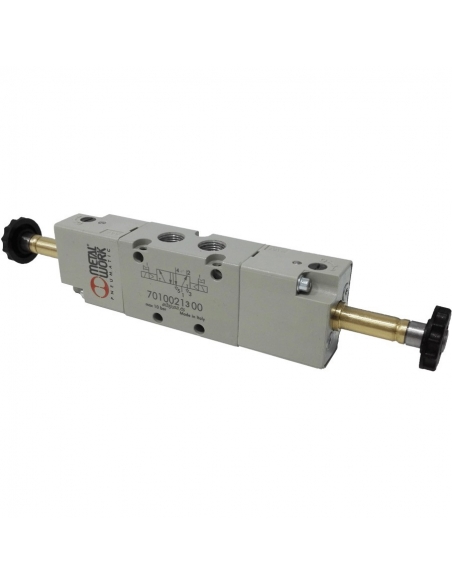

Solenoid valve 1/8 5 ways bistable differential with connectors and coils voltage 230Vca

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€8.28

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.36

1x

Solenoid valve 1/8 5 ways bistable differential - Metal Work - ADAJUSA

Solenoid valve 1/8 5 ways bistable differential - Metal Work

€81.51

No queries yet, leave the first!

Pneumatic solenoid valve of 1/8 5 ways bistable differential relocation with 22 mm connectors and 230Vca coils.

The supply includes:

Solenoid valve 1/8 5 ways differential bistable
2 x 22 mm connectors
2 coils 230Vca - 3.5VA

Specifications:

Manufacturer: Metal Work
Thread type: G 1/8"
Bistable bar: 1 ÷ 10
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121,43
Critical bar/bar ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
Bistable TRA/TRR at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Insulation class: F 155
Voltage: 230Vca
Rated power: 3.5VA.

electrovalvula 1/8-5/2 biestable metal work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
