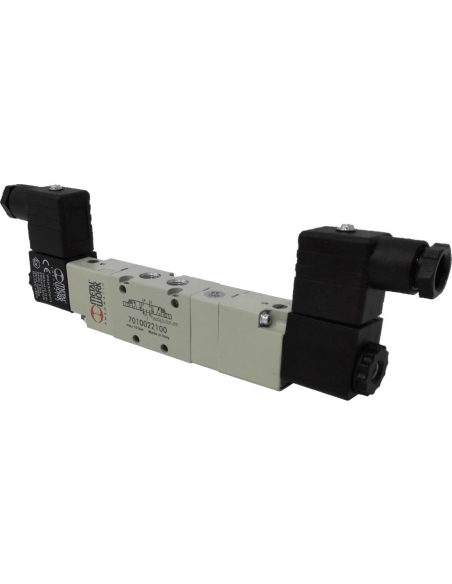

Solenoid valve 1/8 5-way 3 positions closed centres - Metal Work - ADAJUSA
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22

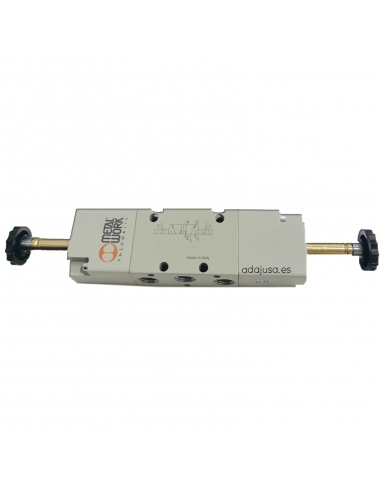

Solenoid valve 1/8 5-way 3 positions closed centers - Metal Work
Solenoid valve 1/8 5-way 3 positions closed centres - Metal Work - ADAJUSA
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/8 5-way 3 positions closed centers - Metal Work

Solenoid valve 1/8 5 vias 3 positions closed centres 230VAC 3.5VA - Metal Work

€113.22 Tax included

€93.57 tax excl.

1/8" 5-way, 3-position solenoid valves, closed centers, metal body, for pneumatic applications for industrial or general use.
Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm

Esquema neumático electroválvula 5 vías 3 posciones centros cerrados
Logo-Metal-Work
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valves of 1/8" of 5 ways and 3 positions, closed centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, with which the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder is collected.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm.
22 mm plastic connector

The supply includes:

  • 1 solenoid valve 1/8" 5 /3 closed centers
  • 2 coils 230Vac 3,5VA
  • 2 connectors 22 m

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7010022100 - SOV 26 SOS DC
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Coil voltage 230Vac
  • Consumption: 3.5VA
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
