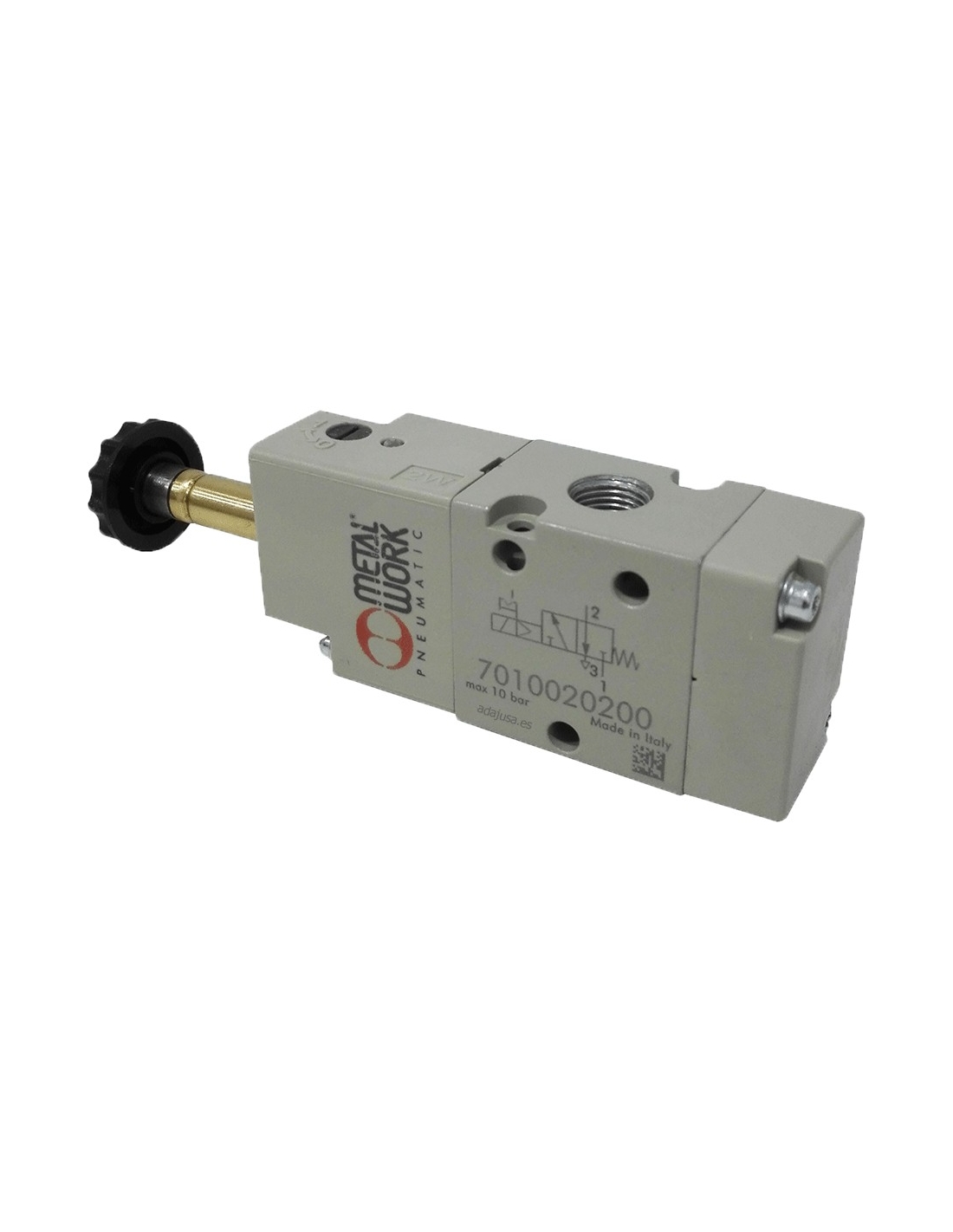

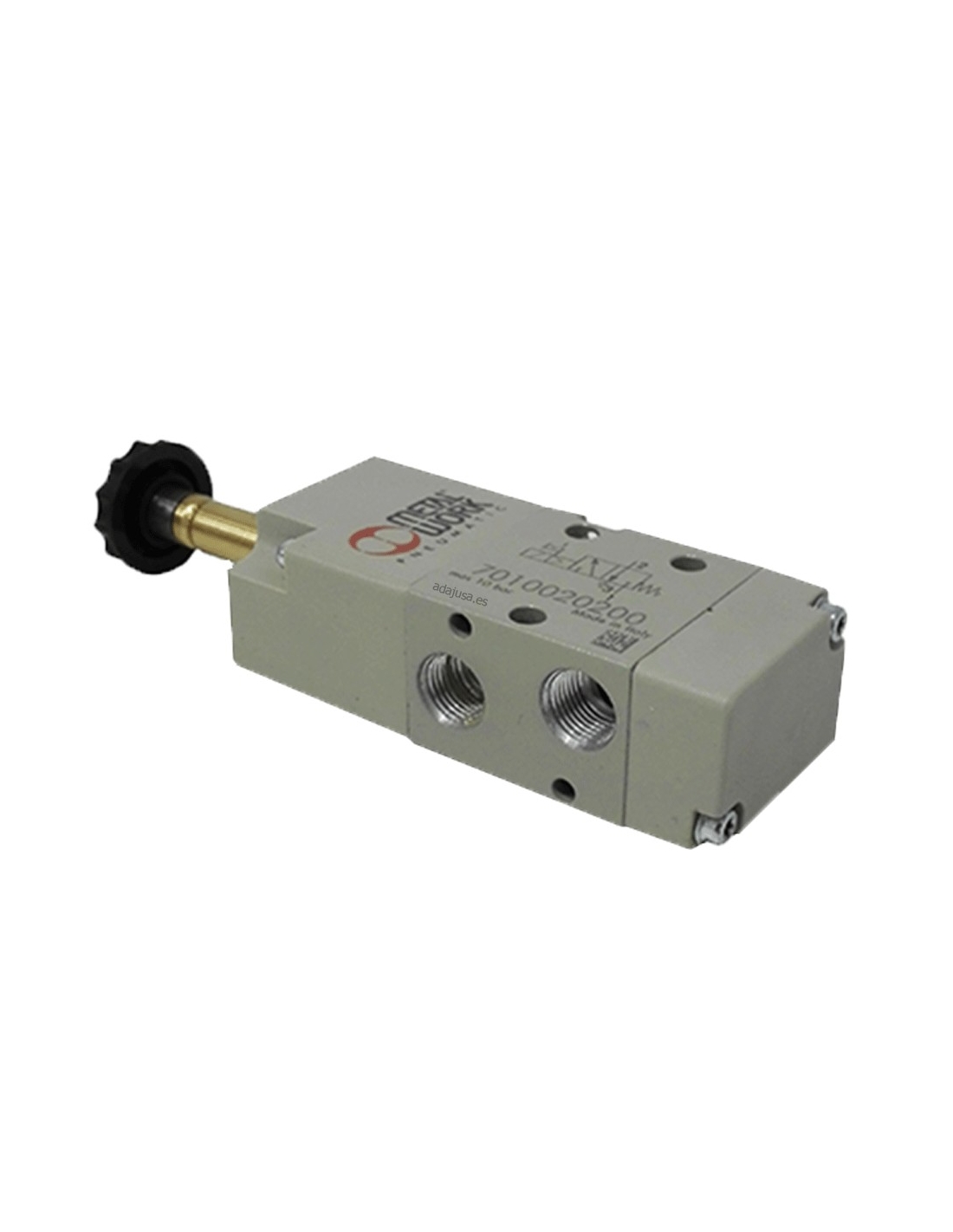

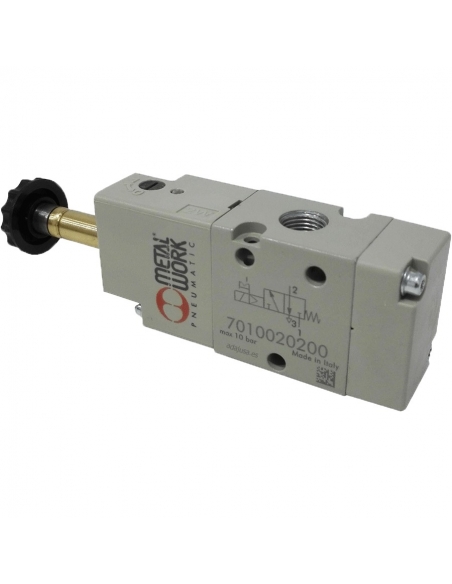

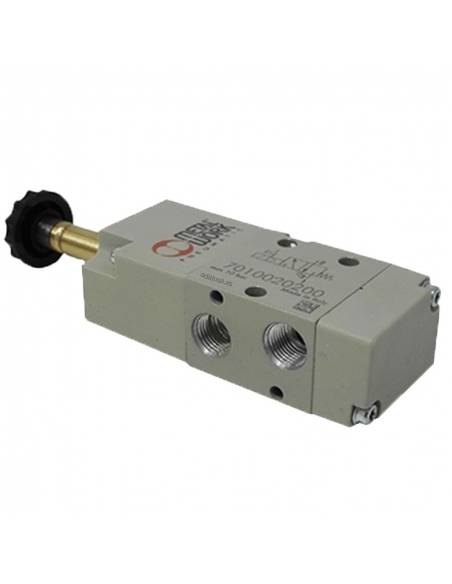

1/8 3-way monostable solenoid valve without coil - Metal Work - ADAJUSA
1/8 3-way monostable solenoid valve without coil - Metal Work - ADAJUSA
1/8 3-way monostable solenoid valve without coil - Metal Work - ADAJUSA
1/8 3-way monostable solenoid valve without coil - Metal Work - ADAJUSA

Solenoid valve 1/8 3 monostable roads without coil - Metal Work

€53.36 Tax included

€44.10 tax excl.

Solenoid valve 1/8 3 ways monostable without coil. Normally closed (NC).

Reference: 7010020200

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8 3-way pneumatic electrovalve, coil not included. For general and industrial applications. The electrovalve is normally closed (NC), that is, without tension in the coil, the inlet is not connected to the outlet, that is, there is no air pressure at the outlet, the outlet is connected to the valve exhaust. When the coil is tensioned, the electrovalve is activated, air circulation occurs between the inlet and outlet of the electrovalve.

Manufacturer: Metal Work

Reference: SOV23SOSNC Code: 7010020200

characteristics:

  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 7.5 mm
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min:1100
  • SINGLE-SEAT TRA/TRR at 6 bar ms: 19/45
  • TRA/TRR bistable at 6 bar ms: 21/21
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15

Dimensiones electrovalvula 1/8-3/2 monoestable

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
