Solenoid valve 1/8 5 ways bistable differential - Metal Work

€82.99 Tax included

€68.59 tax excl.

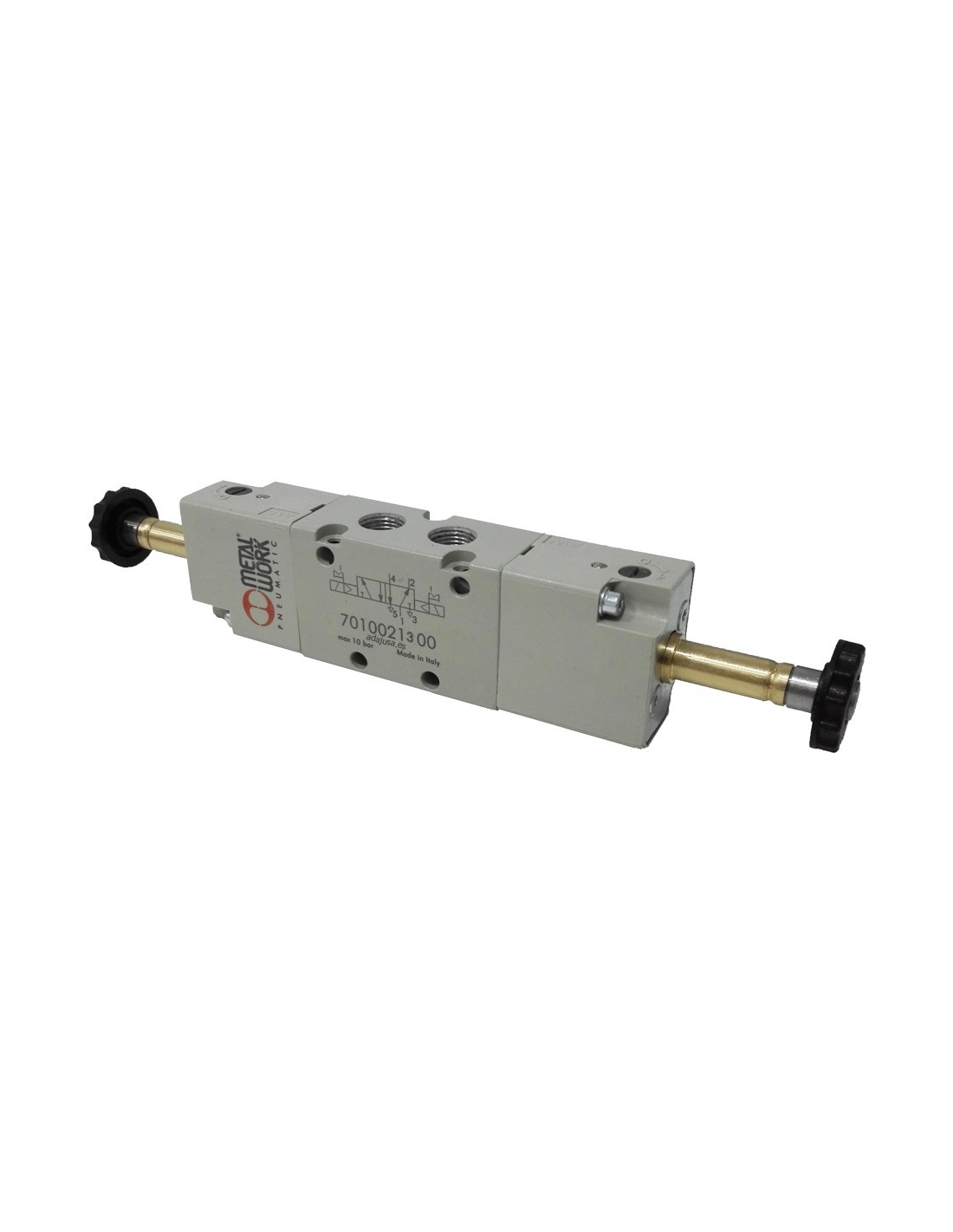

Solenoid valve 1/8 5 way bistable differential (coils not included)

Reference: 7010021300

Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve 1/8 5-way bistable bistable differential repositioning. Coil and connector not included.

Technical characteristics:

  • Manufacturer Metal Work
  • Reference solenoid valve : SOV 25 SOD 00 Code: 7010021300
  • Type of threads: G 1/8"
  • Bistable bar: 1 ÷ 10
  • Minimum assistance pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min - bar: 121,43
  • Critical ratio b bar/bar: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • TRA/TRR monostable at 6 bar ms: 15/35
  • TRA/TRR bistable at 6 bar ms: 20/20
  • Voltage tolerances %: -10 ÷ +15
  • Class of isolation: F 155

electrovalvula 1/8-5/2 biestable metal work
Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
