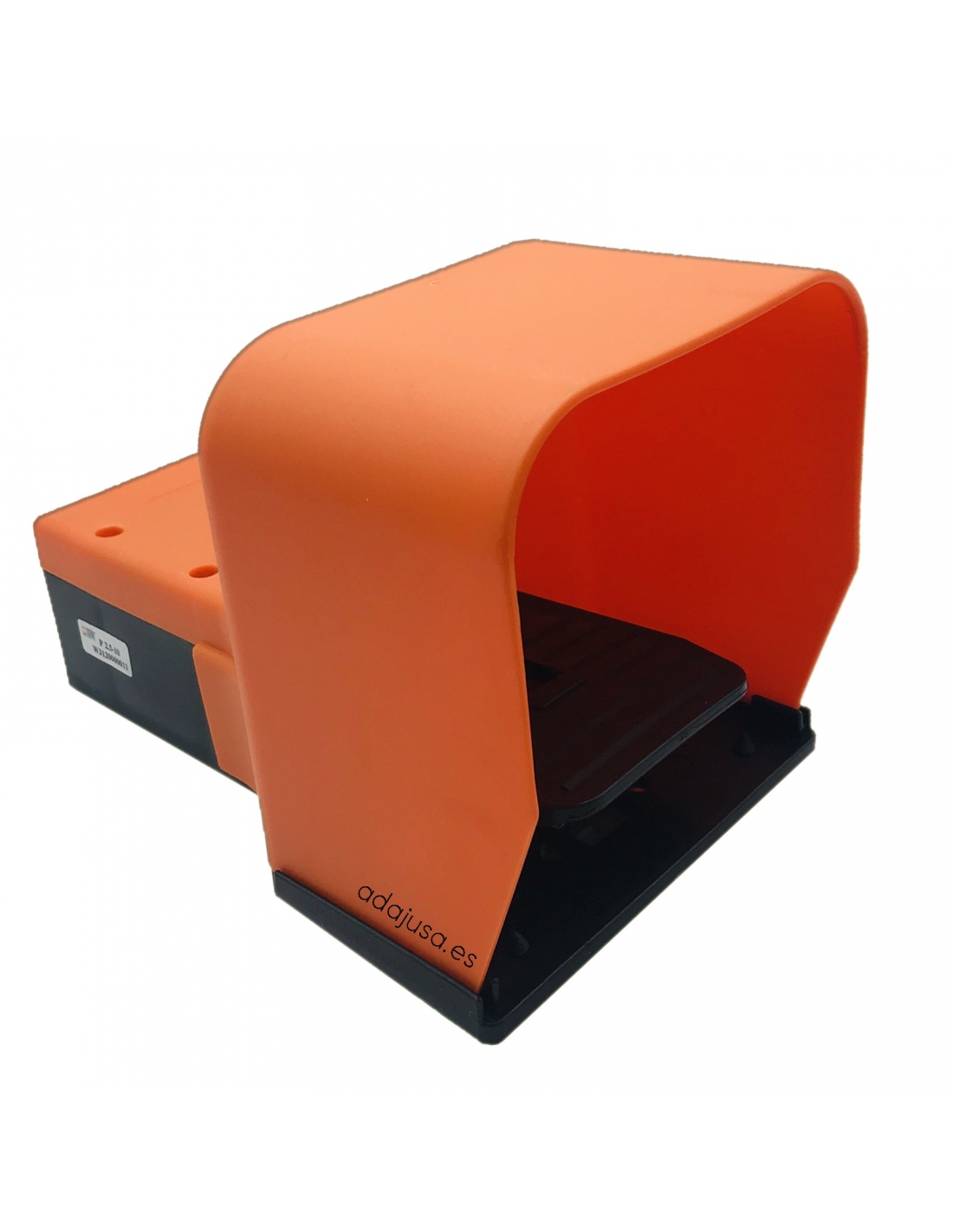

Pneumatic pedal 1/4 5/2 monostable with protection - Metal work

€76.10 Tax included

€62.89 tax excl.

Pneumatic pedal with 1/4" 5- way thread with protection cover in high-resistance plastic material, monostable operation, the pneumatic valve is activated while the pedal remains pressed, returning to the rest position when it is stopped.

Reference: W3120000001
Tire pedal symbol

Metal Work Logo

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

monostable 5- way pneumatic pedal with G 1/4" thread. The pedal is equipped with protection cover to prevent accidental activation, the pedal body is made of high-resistance plastic material, in orange color, and the pneumatic valve is made of aluminum. In monostable operation, the pneumatic valve is activated while the pedal remains pressed, returning to the rest position when the pedal is released.

Technical characteristics:

Manufacturer: Metal Work .
Reference: W3120000001.
Valve thread: 1/4".
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 5 way , 2 monostable positions with protection.
Working pressure: 2.5..10 bar . 0.25..1 MPa. 36..145 psi.
Nominal diameter: 7.5mm.
Conductance C: 264.26 Nl/min- bar .
Critical ratio: 0.32 bar / bar .
Flow rate at 6.3 bar ΔP 0.5bar: 660 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar : 840 Nl/min.

Metal Work pneumatic pedal dimensions
Material for professional use, install in compliance with the regulations in force at the installation site.

Download (128.23KB)
