Pneumatic foot pedal 1/4 5/2 bistable without protection cover - Aignep

Pneumatic foot pedal 1/4 5/2 bistable without protection cover - Aignep

€62.79 Tax included

€51.89 tax excl.

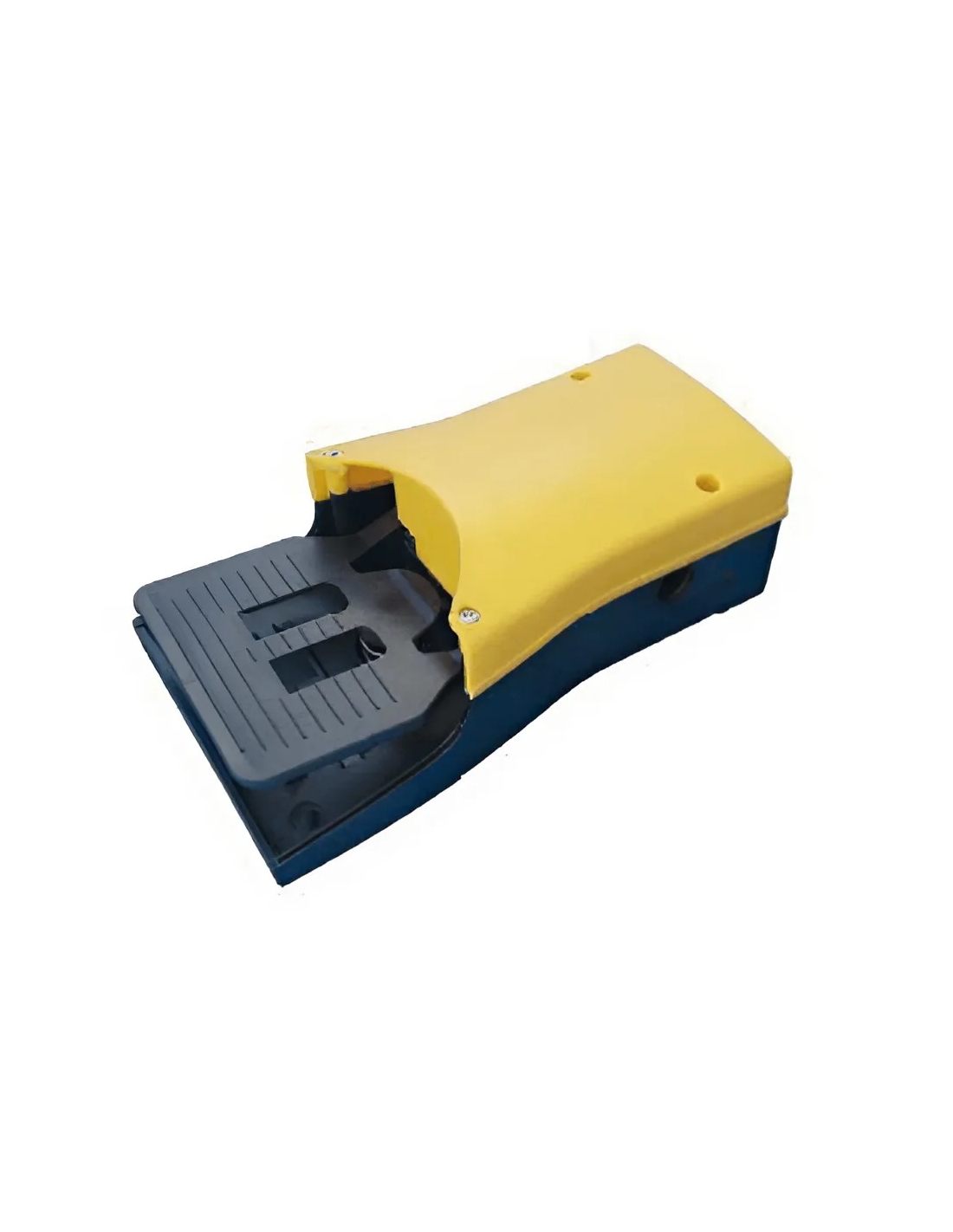

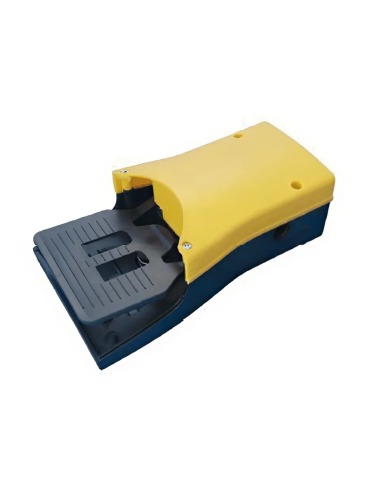

Pneumatic pedal with thread 1/4" of 5 way without protection cover in plastic material of high resistance, of operation bistable, the pneumatic valve is activated in the first pulsation and will remain activated even if the foot is withdrawn, it will remain activated until a new actuation with the foot.

Part number: 06V0000006


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max
  • optional 250 char. max
  • optional 250 char. max

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic pedal with thread G 1/4" of 5 way bistable . The body of the pedal is made of high resistance plastic material, in yellow color and the pneumatic valve is made of aluminum, of operation bistable, the pneumatic valve is activated at the first press and will remain activated even if the foot is removed, it will remain activated until a new activation with the foot.

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 06V0000005 (PS 1/4)
  • Operation: bistable
  • Valve thread: 1/4"
  • Fluid: With or without lubrication, if there is lubrication it must be continuous
  • Type: 5 way, 2 positions monostable with protection
  • Working pressure: 2...10 bar. 0,2..1
  • Nominal diameter: 7.5mm
  • Fluid type: Filtered air 50um, with or without lubrication
  • Maximum working temperature: +60ºC


Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
