Stop push-button box - Full stop ADJ-E
Stop push-button box - Full stop ADJ-E

Stop push box - Full stop

€4.85 Tax included

€4.01 tax excl.

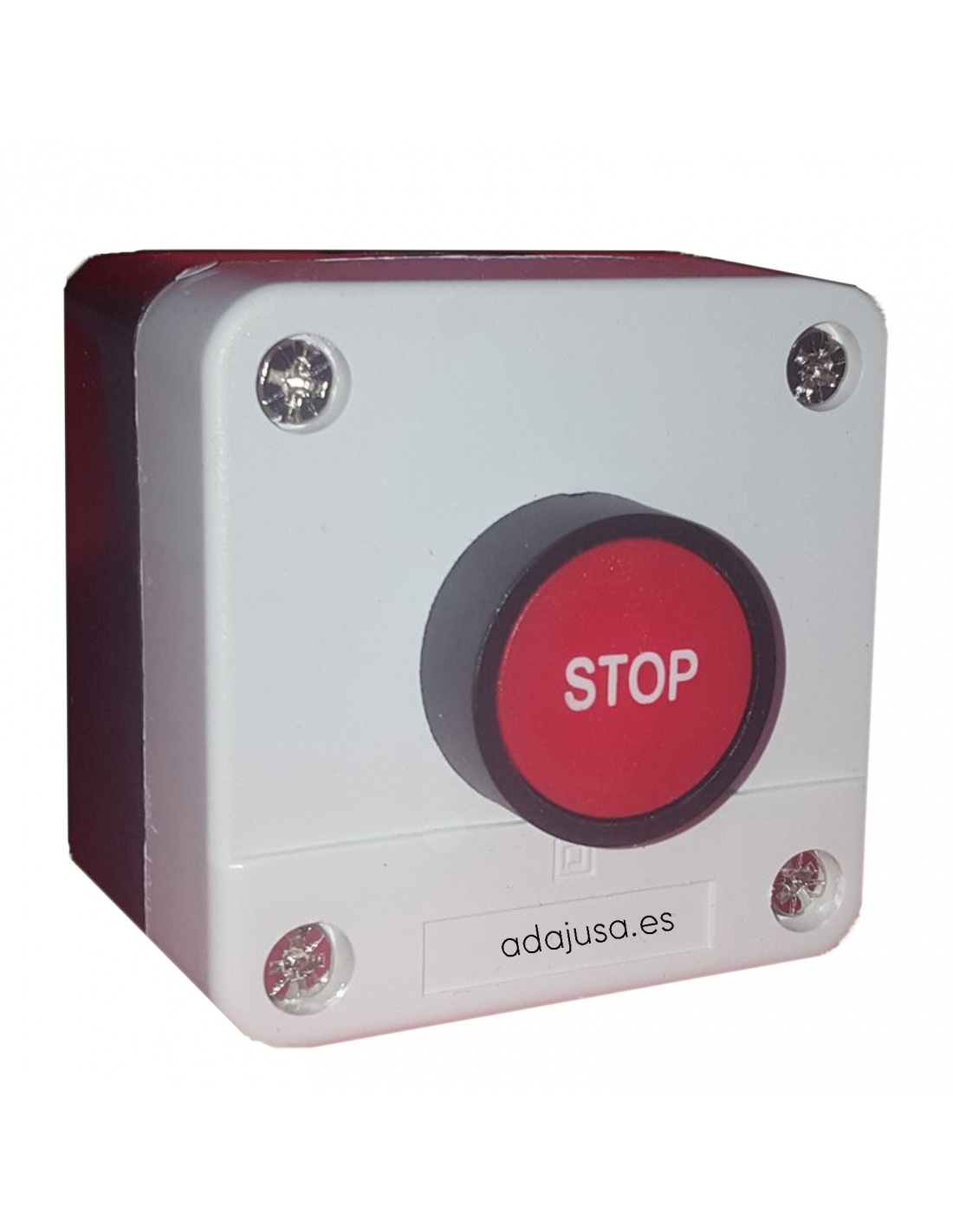

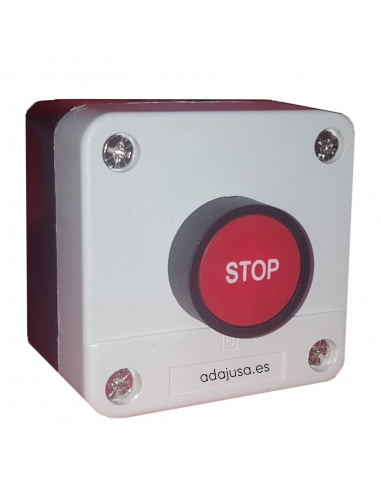

Box with stop button ADJ-E red color.

Box with full stop button. Box made and pushbutton fatricadá in white-black plastic.

The supply includes the full pushbutton, box and a closed contact, all mounted.

Ref: XAL-B114

Esquema eléctrico pulsador paro circuito cerrado

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with stop button red ADJ-E, with "stop" inscription, a closed contact (NC). Black and white case.

The supply includes the full pushbutton, box and a closed contact, all mounted.

The box supports mounting additional contact, open or closed. The maximum number of contacts per item is 2.

The dimensions of the case are: 68x68x51mm.

Features:

  • Manufacturer/Supplier: Denor
  • Ref: XAL-B114
  • Pushbutton type: Stop button.
  • Pushbutton color: Red.
  • Black-white plastic case.
  • Box height: 51mm.
  • Contact: 1 NC.
  • Hole diameter: 22mm.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 m.
  • Degree of protection: IP40.

Dimensiones cajas pulsadores montadas XAL

Material for professional use, install in compliance with the regulations in force at the installation site.
