Pneumatic logic valve AND function 1/8 - Aignep

Pneumatic logic valve AND function 1/8 - Aignep

Pneumatic logic valve AND function 1/8 - Aignep

€17.01 Tax included

€14.06 tax excl.

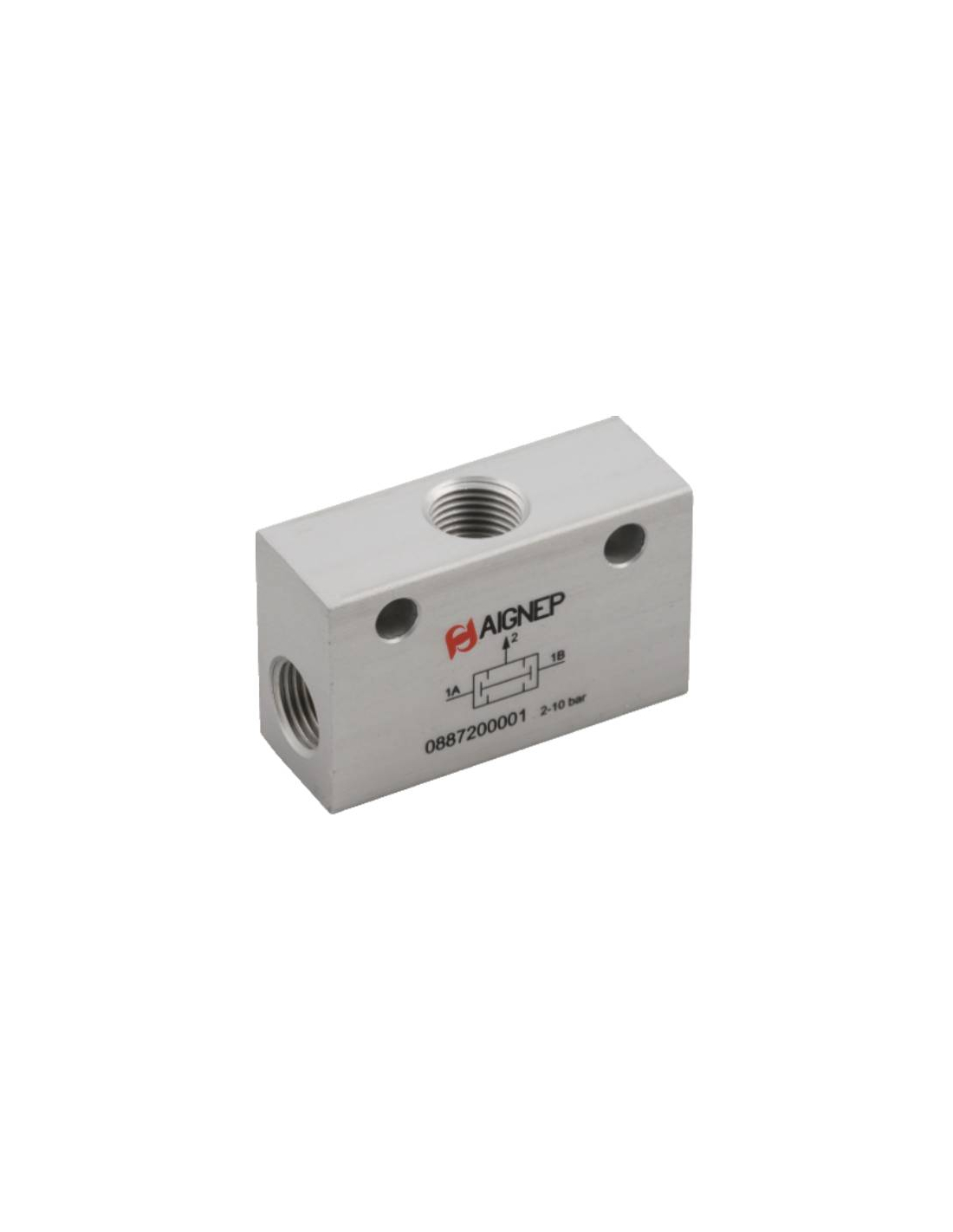

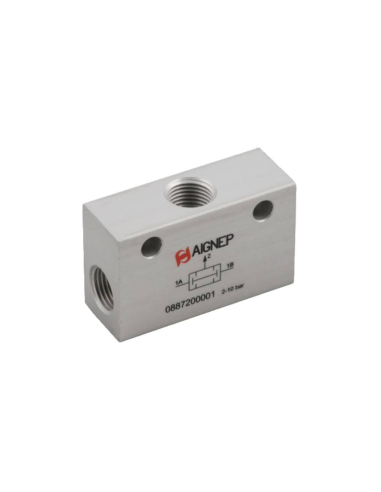

Pneumatic logic valve "AND" function with built-in quick fittings for 1/8 diameter tube.

Series: Function
Reference: 8872 1/8

8872DIAGRAM
aignep normative
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Pneumatic logic valve "AND" function, with built-in quick fittings for 1/8 diameter tube. Fixing using through screws or DIN rail.

Regulator Features:

Manufacturer: Aignep
Reference: 8872 1/8
Valve type: logic "AND" function.
Thread size: 1/8.
Body material: Anodized aluminum.
Internal components: Brass
Gaskets: NBR
Spring: Stainless steel
Working pressure: 2 to 10 bar
Working temperature: -10ºC + 60ºC
Nominal flow at 6 bar : 100 Nl/min.
Fluid: Filtered compressed air with or without lubrication.
Installation: In any position.

8872DIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

fucntion series catalog

Download (8.93MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function O Metal Work - ADAJUSA 2

Logic valves and special valves

Pneumatic logic valve function OR - Metal Work

€16.79 (€13.88 tax excl.)

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.Reference: W3604000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Tire timer

Tire timer 2

Logic valves and special valves

Pneumatic timer - Metal Work

€123.42 (€102.00 tax excl.)

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.Reference: W3604000006 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

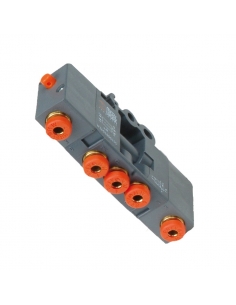

Auxiliary valve logical memory - Metal Work - ADAJUSA

Auxiliary valve logical memory - Metal Work - ADAJUSA 2

Logic valves and special valves

Auxiliary valve logical memory - Metal Work

€49.55 (€40.95 tax excl.)

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4. Reference: W360400005 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

10 other products in the same category:

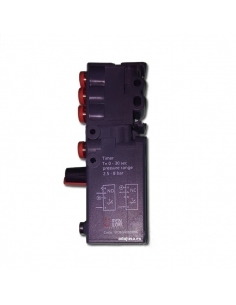

Tire timer

Tire timer 2

Logic valves and special valves

Pneumatic timer - Metal Work

€123.42 (€102.00 tax excl.)

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.Reference: W3604000006 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

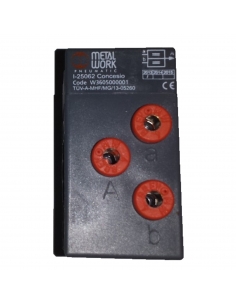

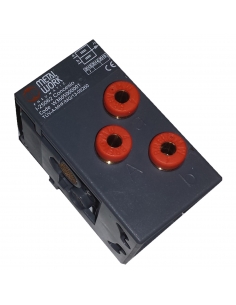

Safety valve for pneumatic bimanual control

Safety valve for pneumatic bimanual control 2

Logic valves and special valves

Safety valve for pneumatic bimanual control

€140.18 (€115.85 tax excl.)

Safety valve for pneumatic bimanual control.Reference: W3605000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve function "Y"

Logic valves and special valves

Pneumatic logic valve function AND - Metal Work

€18.30 (€15.12 tax excl.)

Pneumatic logic valve function "AND" with built-in quick fittings for 4mm diameter tube. Reference: W3604000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve OR...

Logic valves and special valves

Pneumatic logic valve OR function 1/8 - Aignep

€16.71 (€13.81 tax excl.)

Pneumatic logic valve "OR" function with built-in quick fittings for 1/8 diameter tube Series: Function Reference: 8870 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

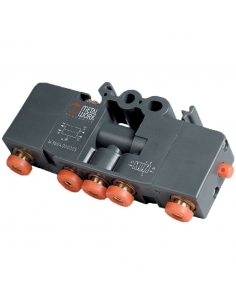

Auxiliary valve logical memory - Metal Work - ADAJUSA

Auxiliary valve logical memory - Metal Work - ADAJUSA 2

Logic valves and special valves

Auxiliary valve logical memory - Metal Work

€49.55 (€40.95 tax excl.)

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4. Reference: W360400005 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function O Metal Work - ADAJUSA 2

Logic valves and special valves

Pneumatic logic valve function OR - Metal Work

€16.79 (€13.88 tax excl.)

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.Reference: W3604000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

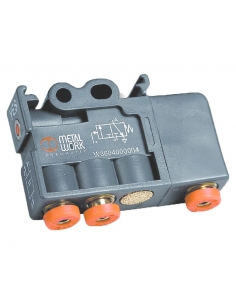

Pneumatic logic valve function YES Metal Work - ADAJUSA

Logic valves and special valves

Pneumatic logic valve function YES - Metal Work

€29.40 (€24.30 tax excl.)

Pneumatic logic valve function "YES" with built-in quick fittings for 4mm diameter tube.Reference: W3604000004 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

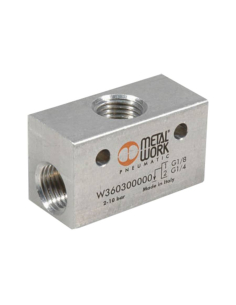

Valve 1/8 thread circuit selector - Metal Work - adajusa.es

Logic valves and special valves

Valve 1/8 thread circuit selector - Metal Work

€13.04 (€10.78 tax excl.)

Circuit selector valve, with 1/8" thread.Reference: W3603000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Threaded circuit selector valve 1/4

Logic valves and special valves

Valve 1/4 thread circuit selector - Metal Work

€13.42 (€11.09 tax excl.)

Circuit selector valve, with 1/4" thread. Reference: W3603000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

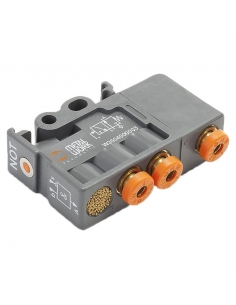

Pneumatic logic valve function NO Metal Work - ADAJUSA
