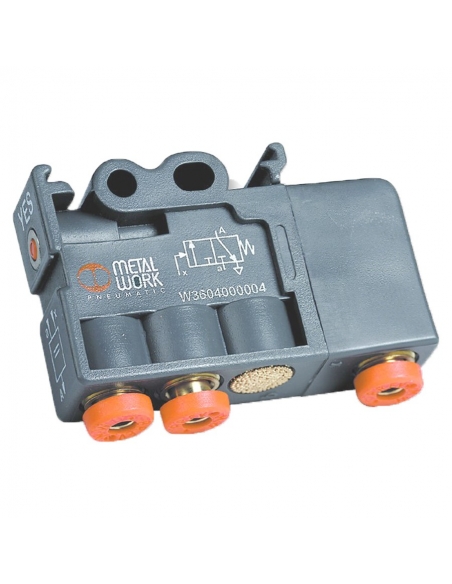

Pneumatic logic valve function YES - Metal Work

€30.58 Tax included

25.27 tax excl.

W3604000004

Pneumatic logic valve function "YES" with built-in quick fittings for 4mm diameter tube.

Reference: W3604000004

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Pneumatic logic valve function "YES", with built-in quick fittings for tube of diameter 4mm. fixation by means of through screws or for din-rail.

Manufacturer: Metal Work.

Manufacturer reference: W3604000004.

Technical features:

Valve type: "YES" logic function.
Type of fittings: Quick connection Ø4.
Type of material: Technopolymer.
Working pressure: 0 to 8 bar, piloting pressure from 1.5 to 8
Nominal diameter: 2.7 mm.
Flow rate at 6 bar: 100 Nl/min.
Fluid: Compressed air filtered with or without lubrication.
Installation: In any position.
Mounting: In DIN profile or by means of through screws diameter 4.2mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
