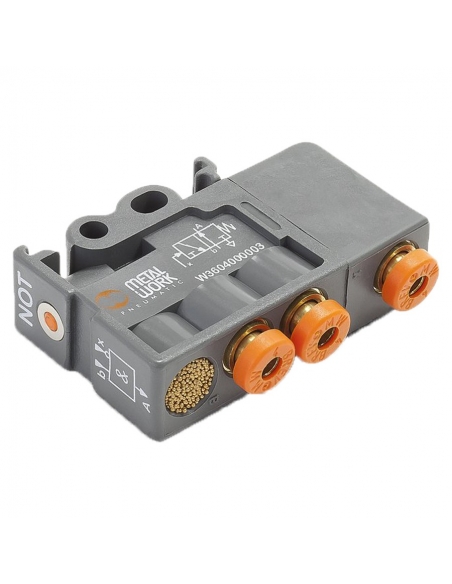

Pneumatic logic valve function NOT - Metal Work

€29.02 Tax included

23.98 tax excl.

W3604000003

Pneumatic logic valve function "NOT" with built-in quick fittings for 4mm diameter tube.

Reference: W3604000003

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic logic valve function "NOT", with built-in quick fittings for tube of diameter 4mm. fixation by through screws or for din-rail.

Manufacturer: Metal Work.

Manufacturer reference: W3604000003

Technical features:

Valve type: "NO" logic function.
Type of fittings: Quick connection Ø4.
Type of material: Technopolymer.
Working pressure: 0 to 8 bar, piloting pressure from 1.5 to 8 - 0.4 switching threshold at 6 bar
Nominal diameter: 2.7 mm.
Flow rate at 6 bar: 100 Nl/min.
Fluid: Compressed air filtered with or without lubrication.
Installation: In any position.
Mounting: In DIN profile or by means of through screws diameter 4.2mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Auxiliary valves

Download (844.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function O Metal Work - ADAJUSA 2

Logic valves and special valves

Pneumatic logic valve function OR - Metal Work

€17.46 (€14.43 tax excl.)

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.Reference: W3604000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve function "Y"

Logic valves and special valves

Pneumatic logic valve function AND - Metal Work

€19.02 (€15.72 tax excl.)

Pneumatic logic valve function "AND" with built-in quick fittings for 4mm diameter tube. Reference: W3604000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Tire timer

Tire timer 2

Logic valves and special valves

Pneumatic timer - Metal Work

€128.36 (€106.08 tax excl.)

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.Reference: W3604000006 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Auxiliary valve logical memory - Metal Work - ADAJUSA

Auxiliary valve logical memory - Metal Work - ADAJUSA 2

Logic valves and special valves

Auxiliary valve logical memory - Metal Work

€51.53 (€42.59 tax excl.)

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4. Reference: W360400005 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

10 other products in the same category:

Auxiliary valve logical memory - Metal Work - ADAJUSA

Auxiliary valve logical memory - Metal Work - ADAJUSA 2

Logic valves and special valves

Auxiliary valve logical memory - Metal Work

€51.53 (€42.59 tax excl.)

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4. Reference: W360400005 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve AND function 1/8 - Aignep | ADAJUSA | price

Logic valves and special valves

Pneumatic logic valve AND function 1/8 - Aignep

€17.21 (€14.22 tax excl.)

Pneumatic logic valve "AND" function with built-in quick fittings for 1/8 diameter tube. Series: Function Reference: 8872 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Tire timer

Tire timer 2

Logic valves and special valves

Pneumatic timer - Metal Work

€128.36 (€106.08 tax excl.)

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.Reference: W3604000006 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Threaded circuit selector valve 1/4

Logic valves and special valves

Valve 1/4 thread circuit selector - Metal Work

€13.95 (€11.53 tax excl.)

Circuit selector valve, with 1/4" thread. Reference: W3603000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Safety valve for pneumatic bimanual control

Safety valve for pneumatic bimanual control 2

Logic valves and special valves

Safety valve for pneumatic bimanual control

€145.78 (€120.48 tax excl.)

Safety valve for pneumatic bimanual control.Reference: W3605000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve OR function 1/8 - Aignep | ADAJUSA | price

Logic valves and special valves

Pneumatic logic valve OR function 1/8 - Aignep

€16.89 (€13.96 tax excl.)

Pneumatic logic valve "OR" function with built-in quick fittings for 1/8 diameter tube Series: Function Reference: 8870 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Pneumatic logic valve function "Y"

Logic valves and special valves

Pneumatic logic valve function AND - Metal Work

€19.02 (€15.72 tax excl.)

Pneumatic logic valve function "AND" with built-in quick fittings for 4mm diameter tube. Reference: W3604000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve function YES Metal Work - ADAJUSA

Logic valves and special valves

Pneumatic logic valve function YES - Metal Work

€30.58 (€25.27 tax excl.)

Pneumatic logic valve function "YES" with built-in quick fittings for 4mm diameter tube.Reference: W3604000004 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Valve 1/8 thread circuit selector - Metal Work - adajusa.es

Logic valves and special valves

Valve 1/8 thread circuit selector - Metal Work

€13.56 (€11.21 tax excl.)

Circuit selector valve, with 1/8" thread.Reference: W3603000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function O Metal Work - ADAJUSA 2

Logic valves and special valves

Pneumatic logic valve function OR - Metal Work

€17.46 (€14.43 tax excl.)

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.Reference: W3604000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Straight automatic straight fitting M5 tube 4mm Series 55000 - Aignep| ADAJUSA

Straight fittings

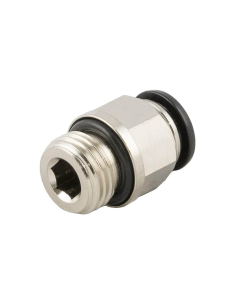

Straight automatic straight fitting M5 tube 4mm Series 55000 - Aignep

€1.29 (€1.07 tax excl.)

Straight male cylindricalfitting with M5 thread for 4mm tube with O-ring, made of chrome-plated brass and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 50020N 4 M5 Representative image...

Straight fittings

Automatic straight racor 1/8 tube 6mm - Metal Work

€1.67 (€1.38 tax excl.)

Metallic straight fitting with 1/8 cylindrical thread for 6mm xExt tube. Male cylindrical thread, with toric gasket included. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Manufacturer: METAL WORK. Reference: 2L01007 Representative image for...

Earplug 4 plastic

Earplug 4 plastic 2

Plug (R9)

Plastic spike plug 4 - Metal Work

€0.38 (€0.31 tax excl.)

Spike cap inserted diameter 4mm in plastic. This plug allows to seal an outlet of a fitting or pneumatic element of diameter 4 to avoid the exit of pressurized air.Reference: 2L10001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch tyre 3/2 diameter 4 W3501001101 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch tyre 3/2 NC side fittings diameter 4 - Metal Work

€18.60 (€15.37 tax excl.)

limit switch pneumatic with push-button drive, fittings located on the side for outer diameter tube of 4 mm. The valve type of the limit switch is normally closed (NC). Reference: W3501001101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Phase Sequence Control Relay

Phase Sequence Control Relay 2

Control and protection relays, thermostats, temperature probes

Phase sequence control relay

€130.40 (€107.77 tax excl.)

Control relay on three-phase lines, this relay detects when all phases are connected in the correct sequence and the asymmetry is less than the set value, the output relay R switches on and the yellow LED lights up. As soon as the phase sequence changes, the output relay switches off and the yellow LED goes out. Art. no.: E1PF400VSY01Picture is...

Pneumatic cylinder diameter 25mm stroke 50 simple acting MB0250050 Aignep | ADAJUSA | price

Pneumatic Cylinders

Pneumatic cylinder 25x50 simple acting MB0250050 - Aignep

€37.74 (€31.19 tax excl.)

Pneumatic cylinder Ø25 stroke 50mm, simple magnetic effect. Manufactured in Italy according to ISO 6432 standard, prepared for magnetic detectors, chrome-plated steel stem. ATEX cylinders as standard. Reference: MB0250050 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Pneumatic steerable flow regulator 1/8 diameter 4 | ADAJUSA

Flow and pressure regulators

Flow Regulator 1/8 tube 4 unidirectional adjustable technopolymer

€7.97 (€6.59 tax excl.)

Adjustable flow regulator of 1/8 with quick fitting for outer Ø4mm tube. Cylinder mounting.Reference: RRGSC.1/8.04 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

View

Intermediate "T" fittings

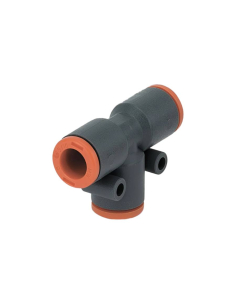

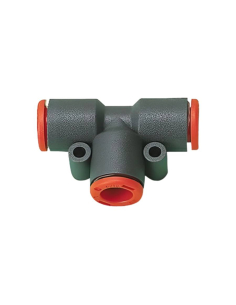

Intermediate T fitting tube 8 instant technopolymer - Metal Work
