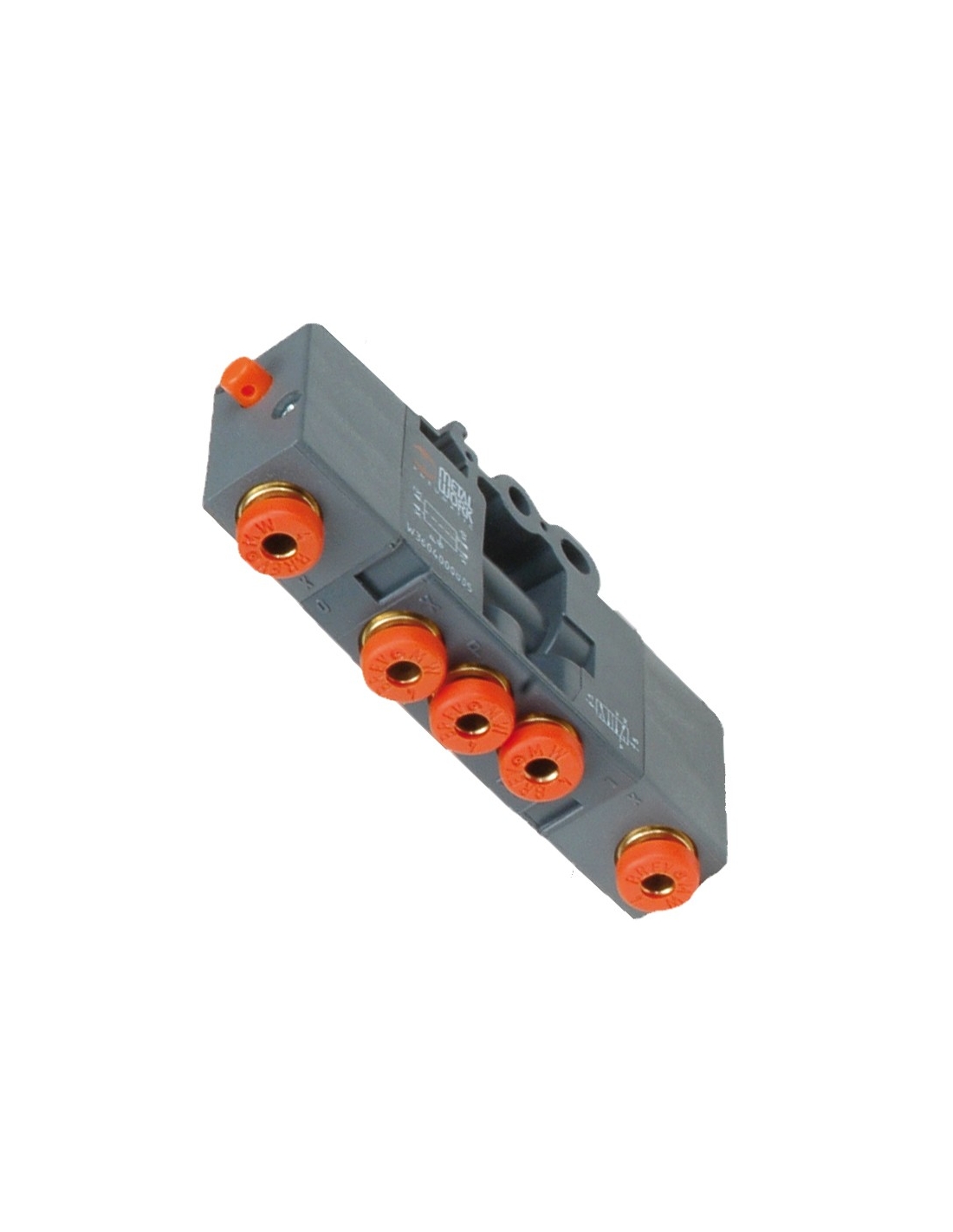

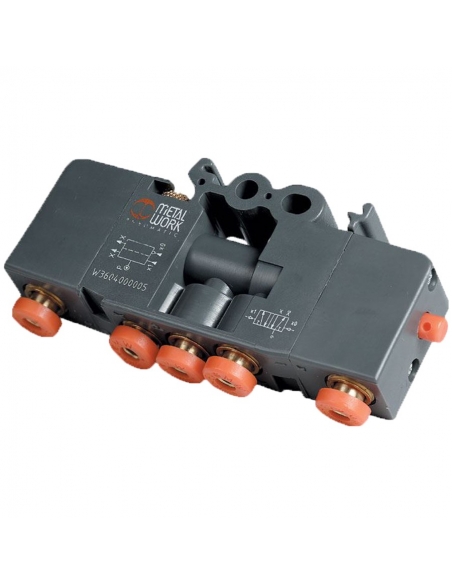

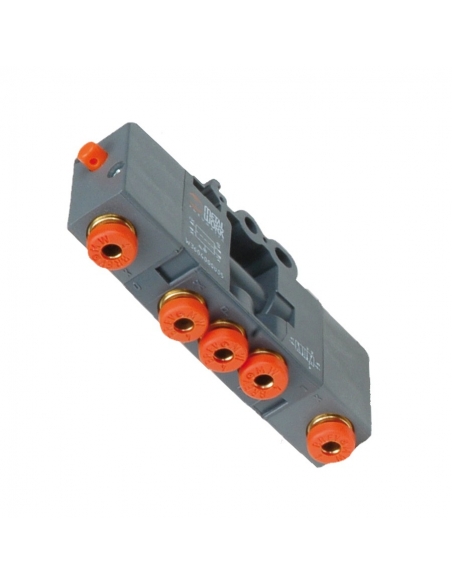

Auxiliary valve logical memory - Metal Work

€51.53 Tax included

€42.59 tax excl.

W3604000005

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4.

Reference: W360400005

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Logical elements are available with 5 different functions: O, Y, NO, YES, MEMORY.

Main features common to all elements:

Manufacturer/Supplier: Metal Work.
Reference: W3604000005.
Adapter for din-rail bar (DIN EN 50022) integrated into the body.
Built-in pressure indicator.
Pipe blocking system by means of recessed fittings Ø 4.
Operating temperature range from -10°C to +60°C
Pressure range SI-MEMORY - O - Y: 0 to 8 bar, pilot pressure 1.5 to 8 bar, NO: 0.4 to 6 bar
Nominal diameter (mm) 2.7
Flow at 6 bar P 1 bar 100 NI / min
Reset AND-OR: via compressed air / YES-NOT via mechanical spring

Material for professional use, install in compliance with the regulations in force at the place of installation.

Auxiliary valves

Download (844.62KB)
