3/4 3/2- way L-shaped valve with pneumatic rotary actuator - Metal Work

€247.60 Tax included

€204.63 tax excl.

3/4" ball valve, 3 way 2-position, 3/2, with "L" configuration, with double-acting pneumatic rotary actuator . For control of air, gases or non-corrosive or non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3L2LB020050D / W0900300124

Pneumatic actuator symbol with double-acting valveATEX pictogram

metal work logo

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/4" ball valve, 3 way 2-position, 3/2, with "L" valve configuration, with double-acting pneumatic rotary actuator . For control of air, gases or non-corrosive or non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

The valve configuration is "L", in one position, the valve allows passage from 1 to 2 or 1 to 1 while 3 remains closed ; In the other position, the passage is allowed from 1 to 3 or from 3 to 1, with 2 remaining closed .

Valves with ATEX certification.

L valve diagram

Technical characteristics:

  • Set manufacturer: Metal Work .
  • Manufacturer reference: VB3L2LB020050D / W0900300124
  • actuator type: Ø50 double acting pneumatic (AP50).
  • Valve type: 3- way 2 positions (3/2).
  • Valve configuration: in "L".
  • Thread type: G 3/4" female.
  • Valve body: OT58 nickel-plated brass.
  • Dial: Chromed OT58 brass.
  • Gaskets: PTFE.
  • Nominal pressure PN: 16 bar
  • Standard: ISO 5211 (direct mounting to the actuator )
  • Temperature: -20ºC to +80ºC

3-way valve dimensions L with actuator

Valve dimensions with 3-way pneumatic actuator

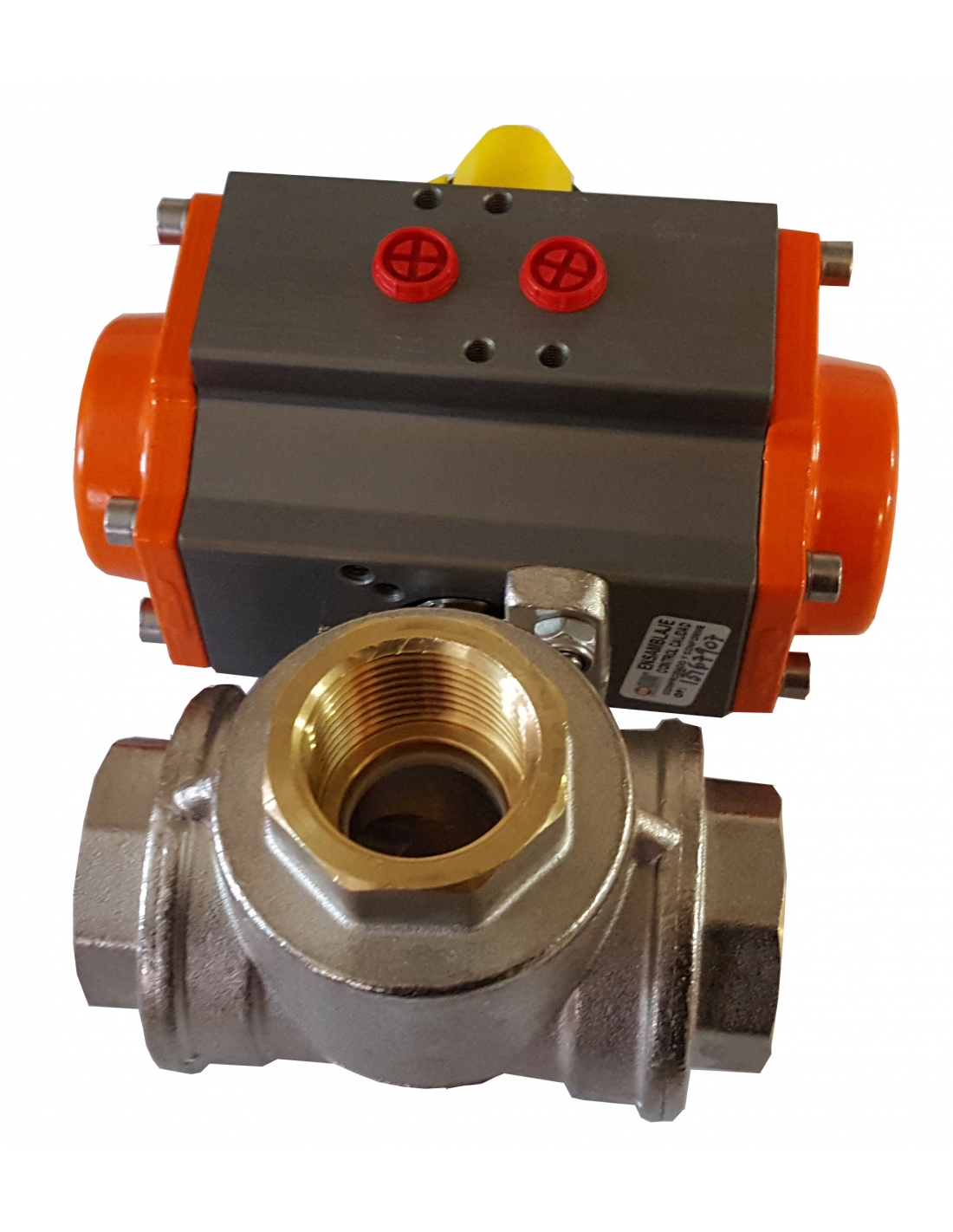

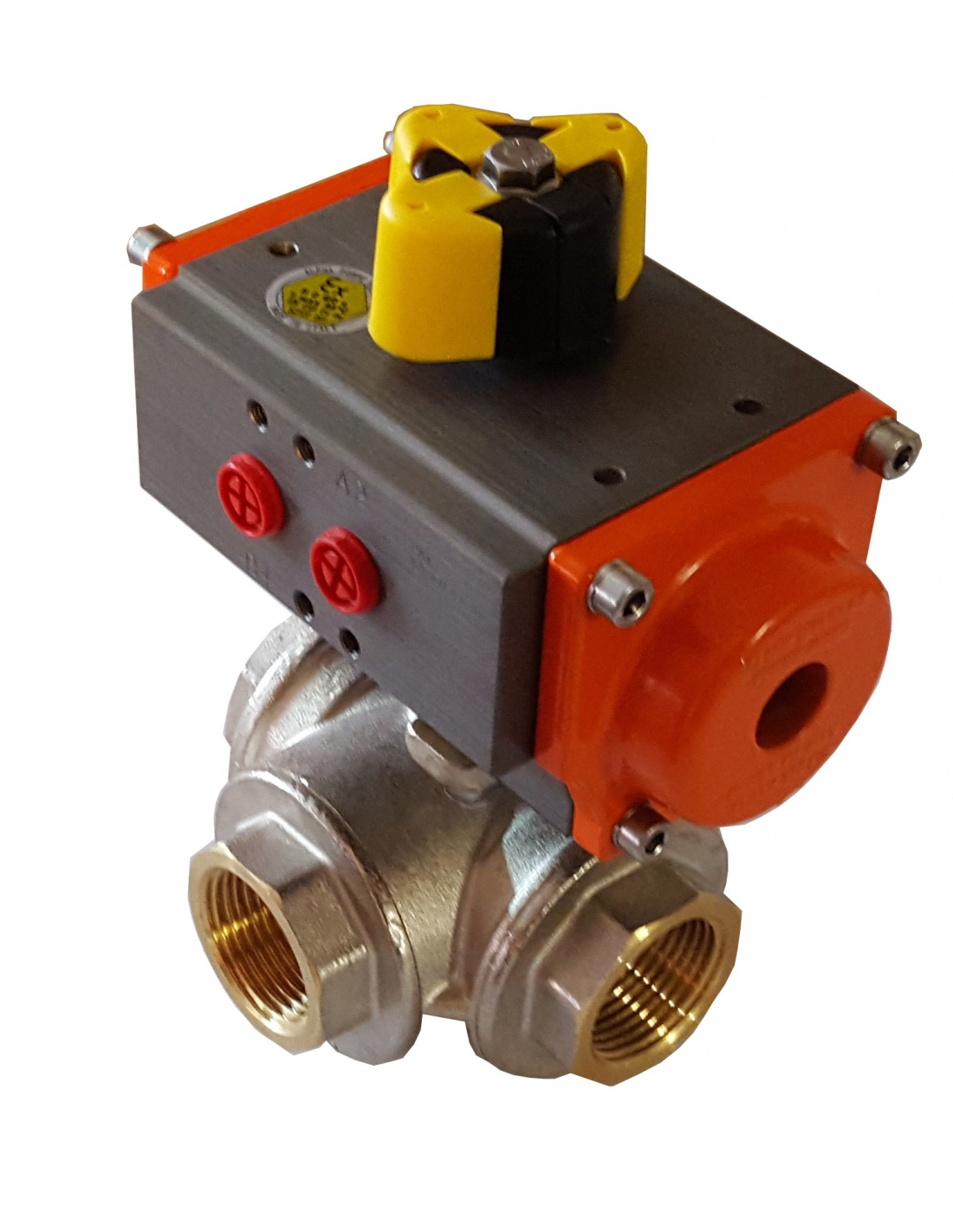

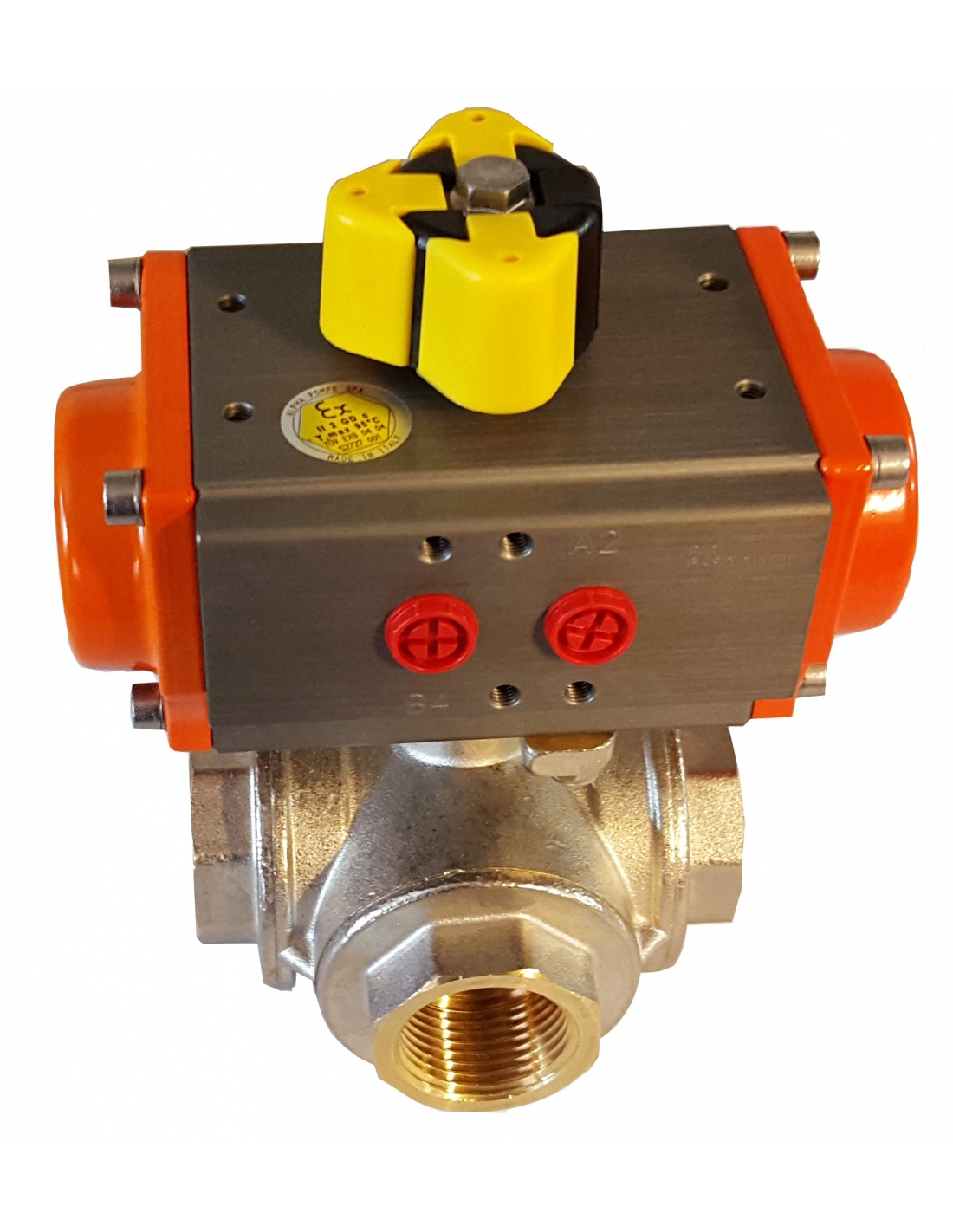

L valve with pneumatic actuator

Material for professional use, install in compliance with the regulations in force at the installation site.
