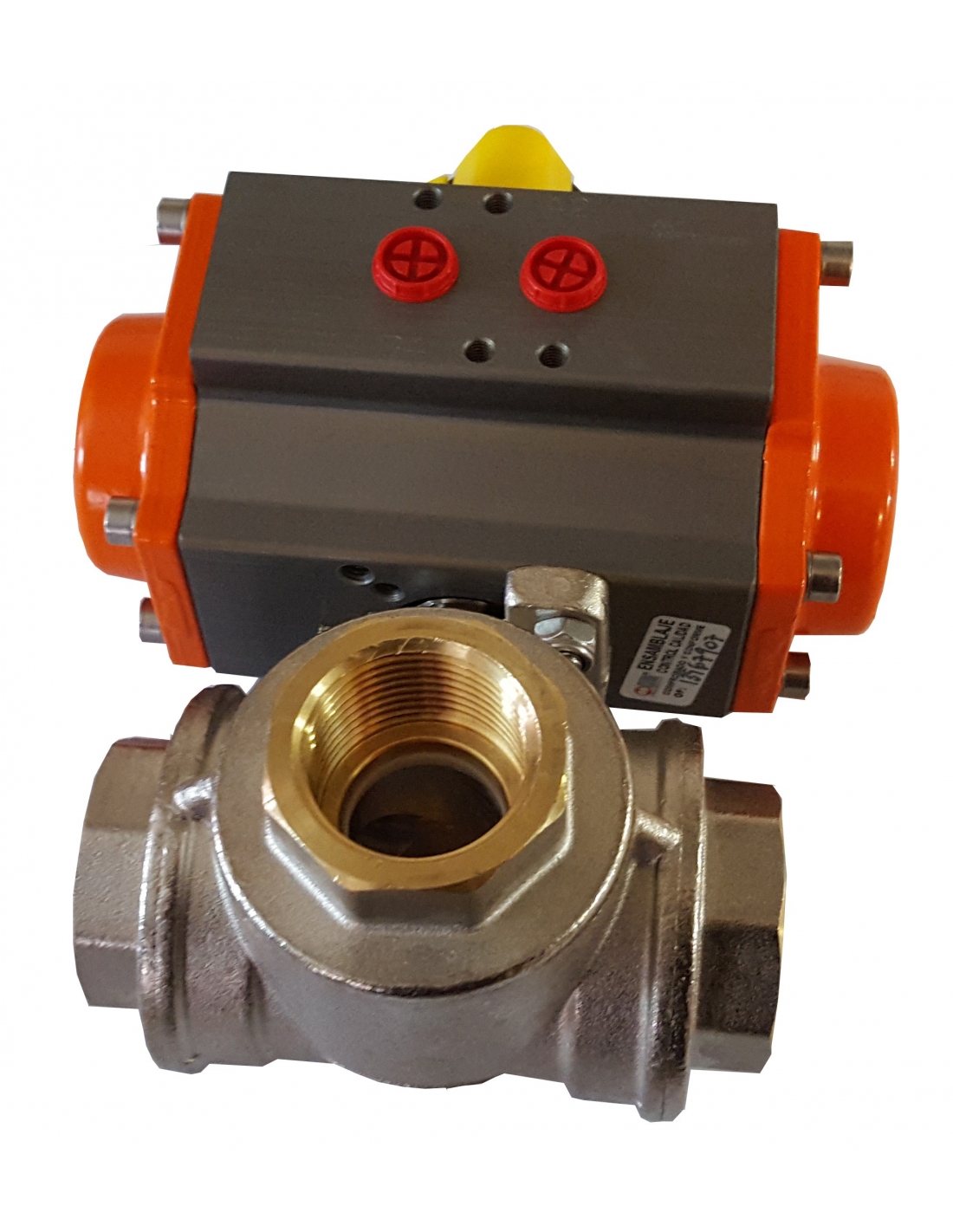

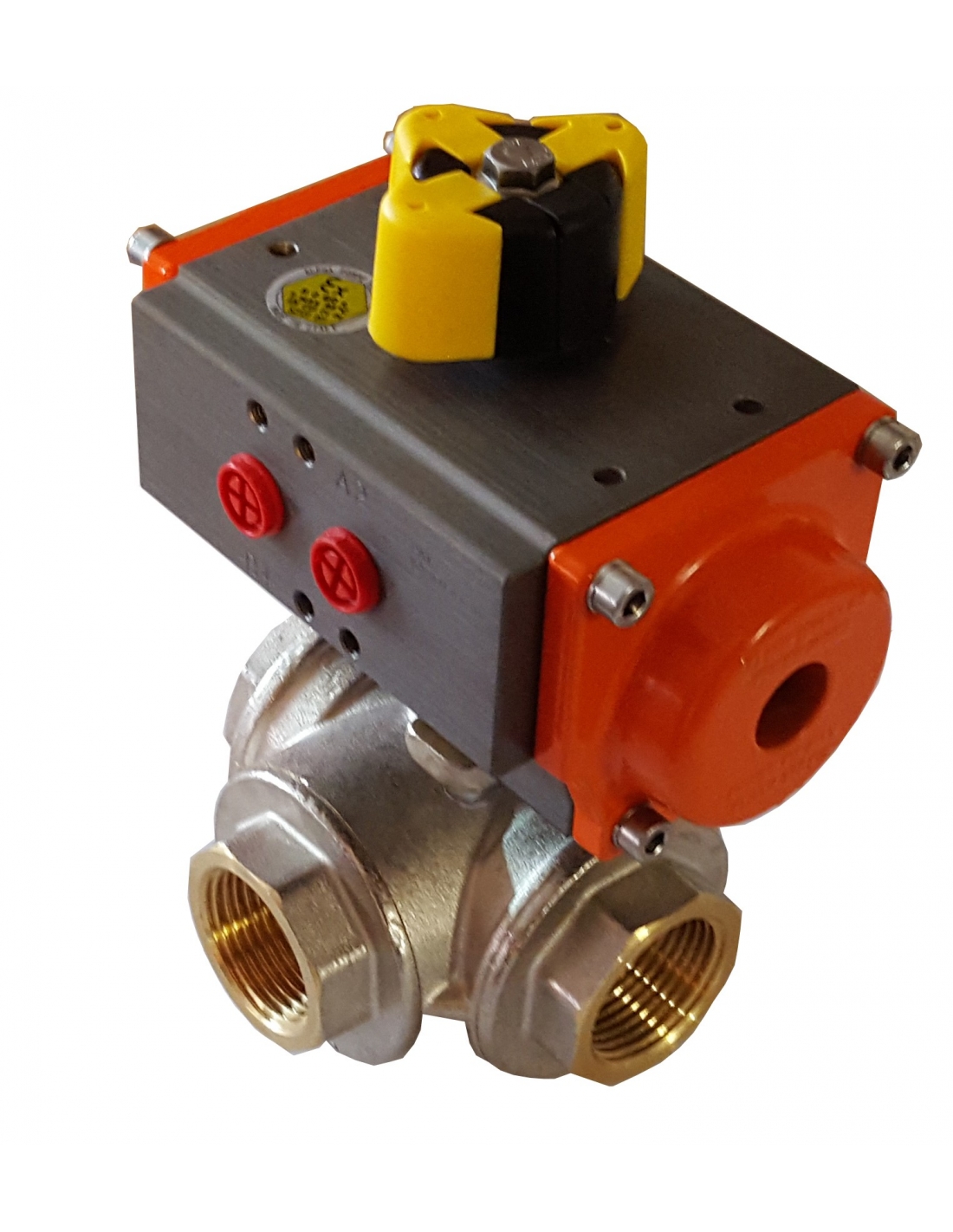

1/2 3/2-way L-valve with pneumatic rotary actuator - Metal Work

€183.93 Tax included

€152.01 tax excl.

Valve of 1/2" dial, 3 ways 2 positions, 3/2, with configuration in "L", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3L2LB015032D / W0900300123

Simbolo neumatico actuador con valvula doble efectoPictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2" dial valve, 3-way 2-position, 3/2, with valve configuration in "L", with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the step is allowed from 1 to 3 or from 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Specifications:

  • Assembly manufacturer: Metal Work.
  • Manufacturer reference: VB3L2LB015032D / W0900300123
  • Actuator type: Ø32 double pneumatic effect.
  • Valve type: 3 ways 2 positions (3/2).
  • Valve configuration: in "L".
  • Thread type: G 1/2" female.
  • Valve body: nickel-plated OT58 brass.
  • Dial: Chrome OT58 brass.
  • Joints: PTFE.
  • Nominal pressure PN: 16 bar
  • Standard: ISO 5211 (direct mounting to the actuator)
  • Temperature: -20ºC to +80ºC

Dimensiones valvula 3 vias el L con actuador

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.
