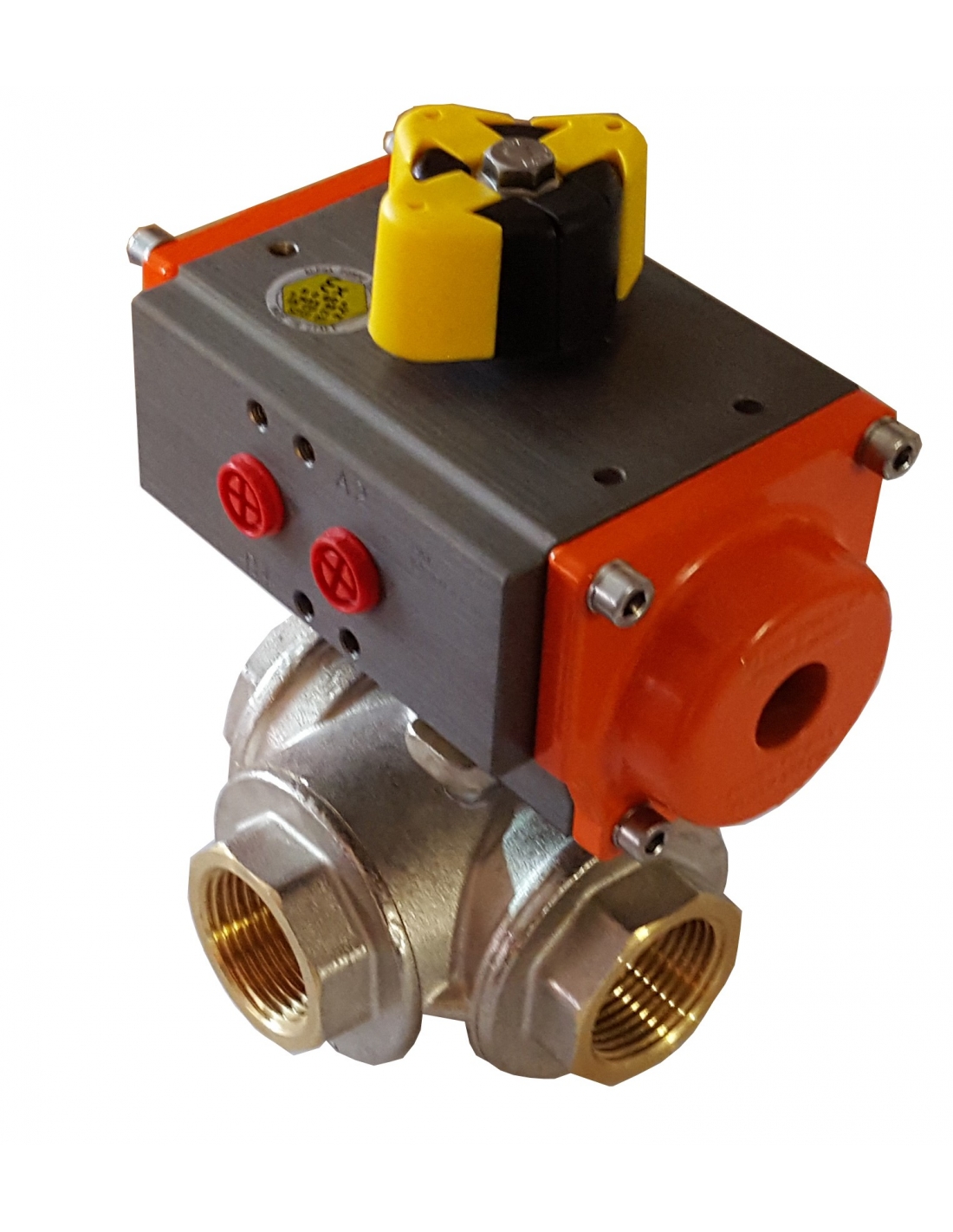

T-way valve 1 3/2-way with pneumatic rotary actuator - Metal Work

€300.41 Tax included

€248.27 tax excl.

1" dial valve, 3-way 2-position, 3/2, with "T" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3T2LB025050D / W0900300135

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

1" dial valve, 3 ways 2 positions, 3/2, with "T" valve configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the tracks.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer Reference: VB3T2LB025050D/ W0900300135
Actuator type: Ø50 double pneumatic effect.
Valve type: 3 ways 2 positions (3/2).
Valve configuration: in "T".
Thread type: G 1" female.
Valve body: nickel-plated OT58 brass.
Dial: Chrome OT58 brass.
Joints: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas en T para accionadores rotativos

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.
