Valve 3/4 2/2 way with actuator pneumatic rotary - Metal Work

€176.10 Tax included

€145.54 tax excl.

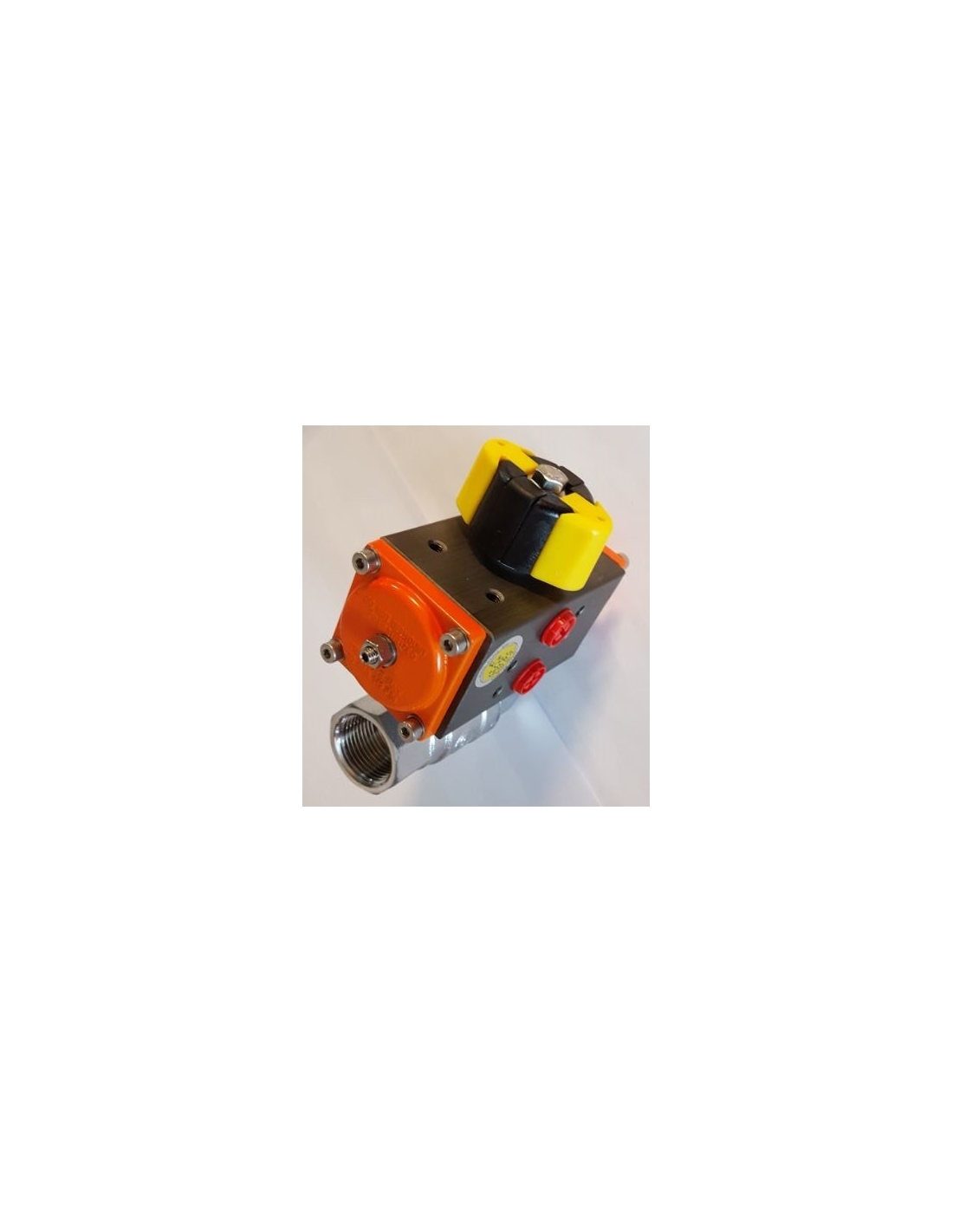

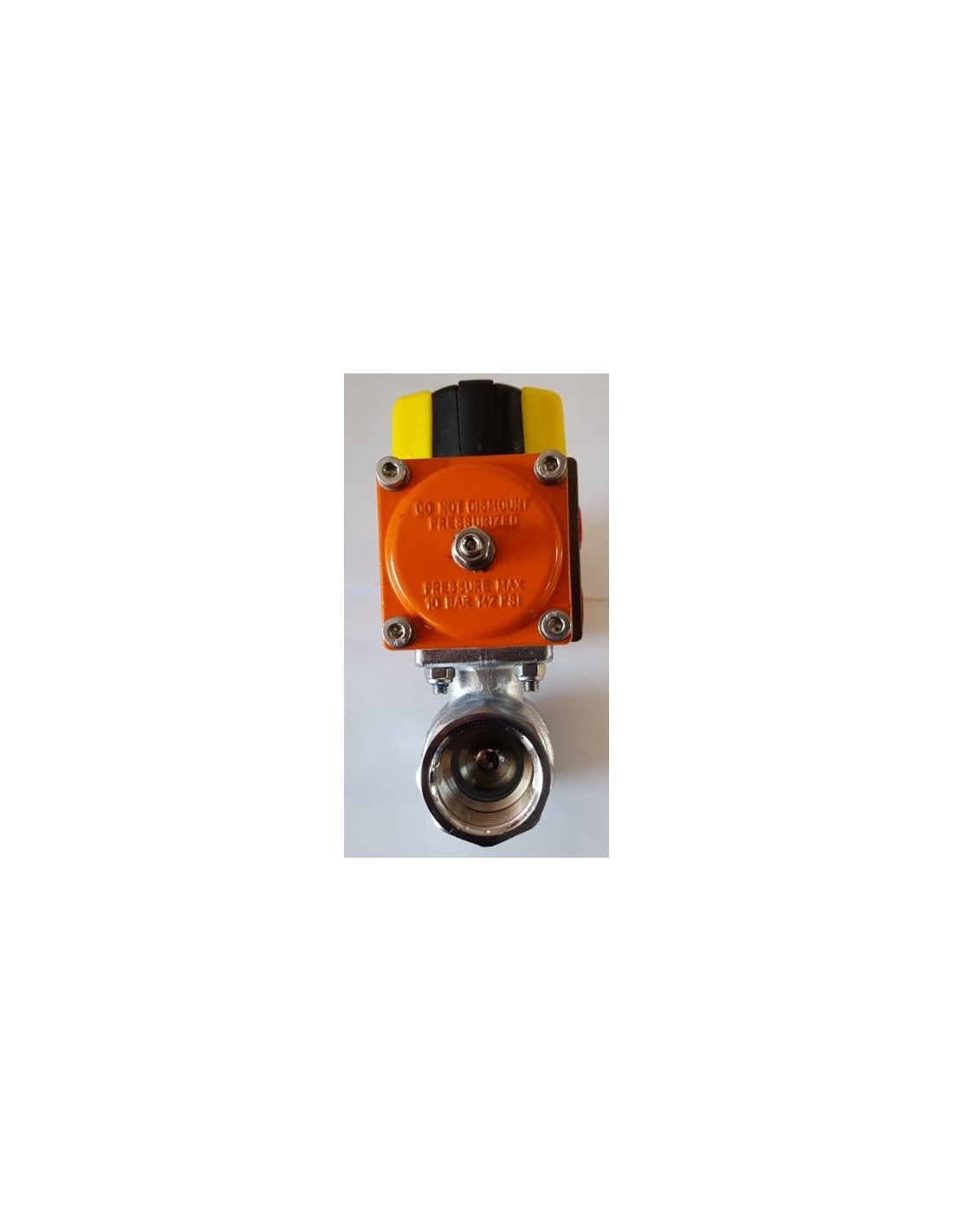

3/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Part no.: VB22LC020032D / W0900300104

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

3/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

Valves with ATEX certification.

Technical characteristics:

Manufacturer of the assembly: Metal Work.
Manufacturer's reference: Z33VB22LC020032D / W0900300104
Type of actuator: Ø32 double acting pneumatic (AP32).
Valve type: 2 way 2 positions (2/2).
Thread type: G 3/4" female.
Valve body: brass OT58 nickel plated.
Ball: OT58 chrome-plated brass.
Seals: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to actuator)
Temperature: -20ºC to +80ºC

Tabla de dimensiones actuadores rotativos 2 vias

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

Valves with pneumatic actuator

catalog valves with actuator Metal Work

Download (688.05KB)
