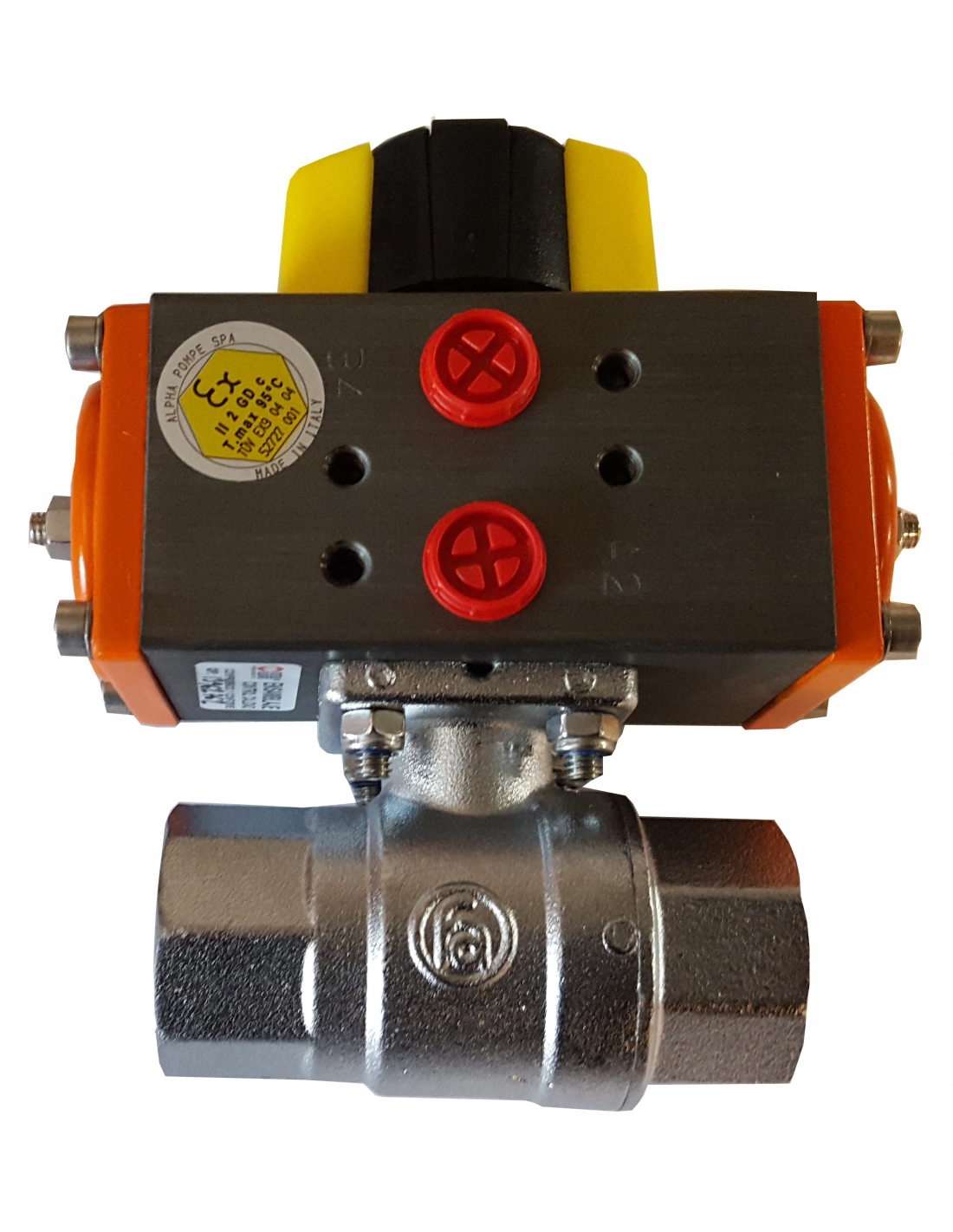

Valve 1 1/2 2/2 ways with pneumatic rotary actuator - Metal Work

€237.81 Tax included

€196.54 tax excl.

Valve of 1" 1/2 of sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB22LC040063D / W0900300107

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Valve of 1" 1/2 of sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

Valves with ATEX certification.

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB22LC040063D / W0900300107
Actuator type: Ø63 double pneumatic effect (AP63).
Valve type: 2 ways 2 positions (2/2).
Thread type: G 1" 1/2 female.
Valve body: nickel-plated OT58 brass.
Dial: Chrome OT58 brass.
Joints: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Tabla de dimensiones actuadores rotativos 2 vias

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

Valves with pneumatic actuator

catalog valves with actuator Metal Work

Download (688.05KB)
