Three-phase to single-phase transformer 8 KVA 400/230Vac with enclosure

Special manufacturing material

€720.95 Tax included

595.83 tax excl.

TRTM8

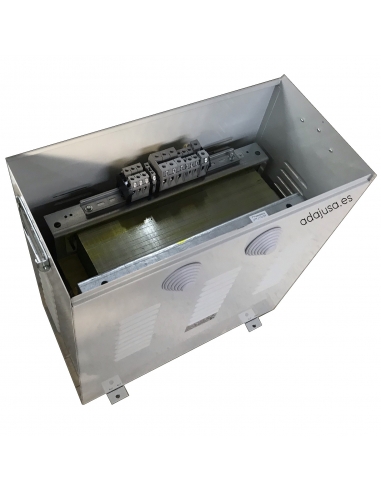

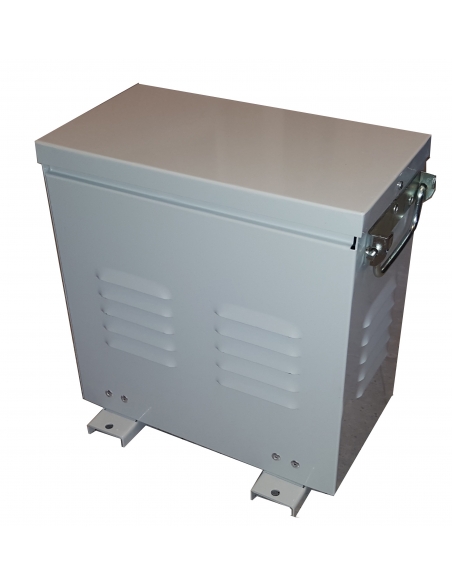

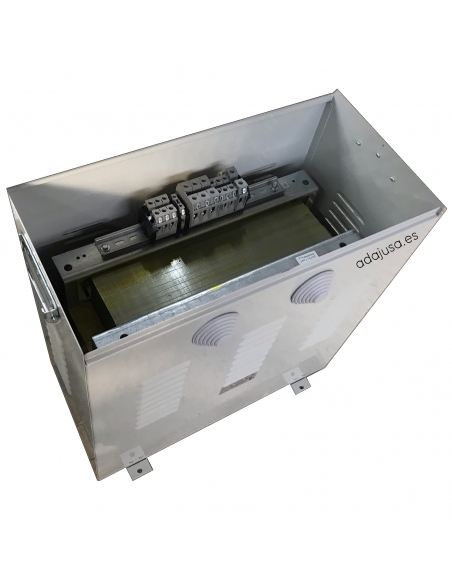

Three-phase to single-phase 8kVAtransformer with IP23 metal enclosure, allows the adaptation of three-phase to single-phase lines and voltages 400Vac to 230Vac. It provides galvanic separation.

This type of transformers are not reversible, i.e. they cannot transform a single-phase line to three-phase.

Part number: TRTM8

Esquema_Transformador_trifasico_monofasico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product

Privacy

Shipments

Returns

Description
Frequently questions

Transformer adapter for three-phase 400Vac to single-phase 230Vac lines, galvanic isolation, dry type.

Phase distribution of 50%-25%-25% load. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low-loss magnetic sheet and with wire windings of copper, providing high performance.

Attention: This type of transformers are not reversible, i.e., they cannot transform a single-phase line into a three-phase line.

Technical characteristics:

Reference: TRTM8
Primary voltage: three-phase 400Vac.
Secondary voltage: Single-phase 230Vac.
Power: 8KVA.
Frequency: 50/60Hz.
Windings: Thermal class N 200ºC.
Test voltage: 5KV between windings and 3KV between windings and ground.
Insulation: Thermal class F 155ºC and H 180ºC.
Protection: IP-23 (Metal enclosure).
Ambient temperature: TA=25ºC.
Cooling: ANAN (Natural air).
Certification: UNE-EN 61558, UNE-EN 60076.

Dimensiones_transformador_trifasico_monofasico

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question

buenas tardes
el transformador trifasico a monofónico 8KVA
que potencia tendría en monofasico tendría 8KW

Answer

Buenas tardes,

Un transformador de potencia 8kVA, le sirve para la conexión de una carga a la salida de unos 4,5kW. Siempre es necesario sobredimensionar el cálculo de la potencia del trafo en un 20% de la la carga máxima a la que tengan que ser sometidos, para garantizar el correcto funcionamiento del mismo.

Si quisiera conectarle una carga de 8kW necesitaría una potencia de unos 14kVA, nosotros disponemos del modelo de 16kVA

https://adajusa.es/es/transformadores-trifasicos-monofasicos/8940-transformador-trifasico-a-monofasico-16-kva-400230vac-con-caja-8435532889403.html

Quedamos a su disposición para cualquier otra consulta,

Un saludo

ADAJUSA

Julio López López on 12/02/2024 15:50:00

Question

Hola, me he comprado una finca que va en trifasico por la bomba del pozo, y estoy pensando en instalar un transformador trifasico a monofasico para poder alimentar la casa 8 ya que todo funciona en monofasico) , y me gustaria saber la eficiencia del transformador, se pierde algo transformando el trifasico en monofasico? o seria mas conveniente hacer una instalacion de "tres monofases" en la casa? Muchas gracias por la pregunta.

Answer

Buenos días,

Podría utilizar sin problema un trafo para pasar de trifásico a monofásico, lo que hay que tener en cuenta es el consumo que va a tener para poder calcular correctamente la potencia del trafo adecuado a sus necesidades, teniendo en cuenta que el cálculo del mismo debe de hacerse con un sobredimensionamiento del mismo para un correcto funcionamiento y evitara así el deterioro del equipo.

Quedamos a su disposición para cualquier otra consulta,

Un saludo

ADAJUSA

victor on 01/31/2023 21:46:09
