Three-phase to single-phase transformer 5 KVA 400/230Vac with enclosure

Special manufacturing material

€564.67 Tax included

€466.67 tax excl.

TRTM5

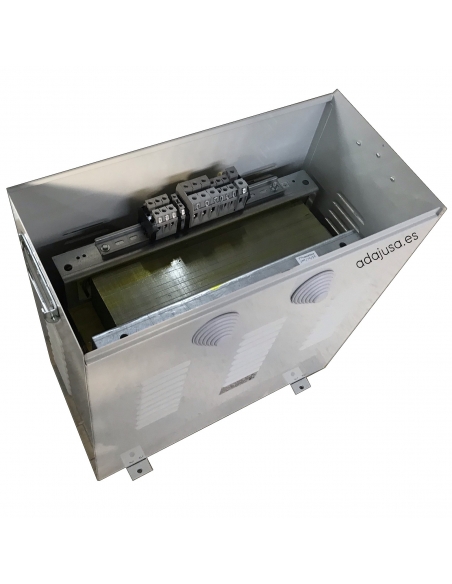

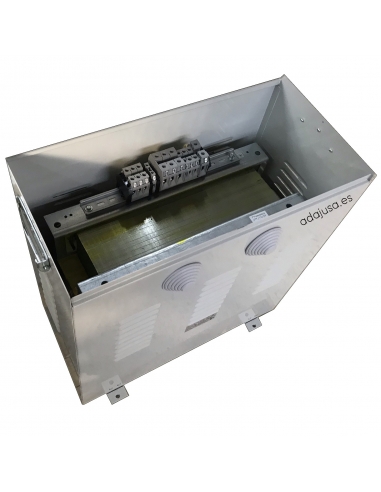

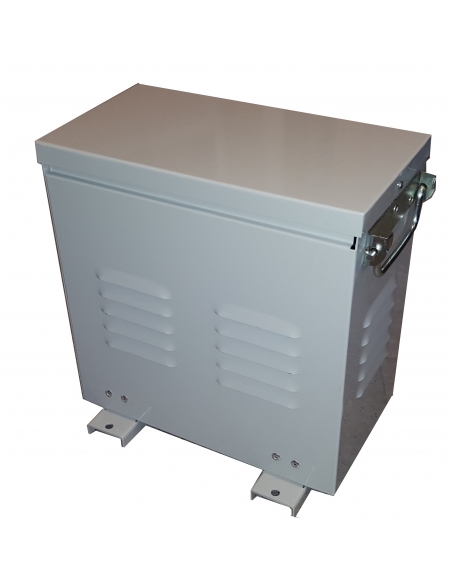

Three-phase to single-phase 5kVAtransformer with IP23 metal enclosure, allows the adaptation of three-phase to single-phase lines and voltages 400Vac to 230Vac. It provides galvanic separation.

This type of transformers are not reversible, i.e. they cannot transform a single-phase line to three-phase.

Reference: TRTM5

Esquema_Transformador_trifasico_monofasico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

3 questions about the product

Privacy

Shipments

Returns

Description
Frequently questions

Transformer adapter for three-phase 400Vac to single-phase 230Vac lines, galvanic isolation, dry type.

Phase distribution of 50%-25%-25% load. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low-loss magnetic sheet and with wire windings of copper, providing high performance.

Attention: This type of transformers are not reversible, i.e., they cannot transform a single-phase line into a three-phase line.

Technical characteristics:

Reference: TRTM5
Primary voltage: three-phase 400Vac.
Secondary voltage: Single-phase 230Vac.
Power: 5KVA.
Frequency: 50/60Hz.
Windings: Thermal class N 200ºC.
Test voltage: 5KV between windings and 3KV between windings and ground.
Insulation: Thermal class F 155ºC and H 180ºC.
Protection: IP-23 (Metal enclosure).
Ambient temperature: TA=25ºC.
Cooling: ANAN (Natural air).
Certification: UNE-EN 61558, UNE-EN 60076.

Dimensiones_transformador_trifasico_monofasico

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question

Quel est le rendement du transformateur TRTM-5

Answer

Bonjour,

Nous vous informons que le rendement c est 97%.

Cordialement

xavier on 06/22/2023 11:28:00

Question

Que peso tiene

Answer

Buenos días,

El peso del modelo TRTM-5 es de 47kg.

Un saludo

ADAJUSA

Florian Agundez on 05/27/2023 13:17:17

Question

Bonjour, J'ai un compteur linky triphase, et j'aimerai installer un transformateur triphase vers monophasé d'env. 5kva pour alimenter mes rig de minage afin d'aquilibrer ma conso sur les 3 phase . Pouvez vous me dire si c'est possible et quel model prendre ? Et peut on brancher un onduleur solaire sur la sortie monophasé ? A bientot, Xaviet

Answer

Bonjour.Nous envoyons le lien du transformateur triphasé à monophasé 5 KVA, ce transformateur est capable de supporter une charge de 3.5 KW. https://adajusa.fr/fr/transformateurs-triphases-monophases/8935-transformateur-triphase-a-monophase-5-kva-400-230vac-avec-boitier-8435532889359.html Pour protéger le transformateur, il est nécessaire d'installer un élément de coupure à la sortie en fonction du courant maximal qu'il est capable de fournir.Si vous lisez les caractéristiques du transformateur, il est indiqué : Ce type de transformateur n'est pas réversible, c'est-à-dire qu'il ne peut pas transformer une ligne monophasée en ligne triphasée.Toutefois, veuillez vérifier qu'il répond à vos spécifications. Salutations

Xavier on 03/21/2022 10:43:30
