Solenoid valve 1/8 3-way monostable 110Vac - Metal Work

€65.16 Tax included

53.85 tax excl.

PK-120200110

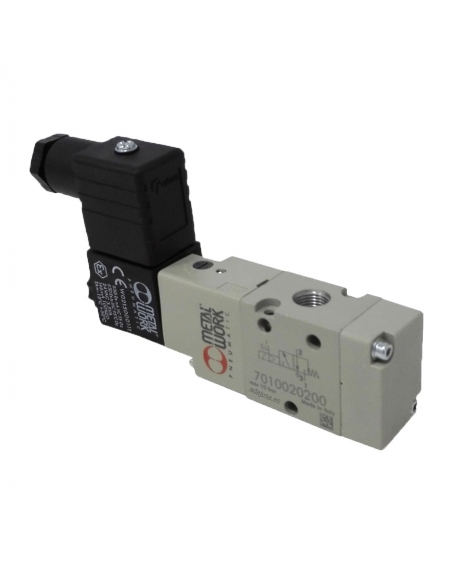

1/8 3-way monostable solenoid valve with 110Vac coil. Normally closed (NC).

simbolo electrovalvula neumatica 3 vias

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

1x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.43

1x

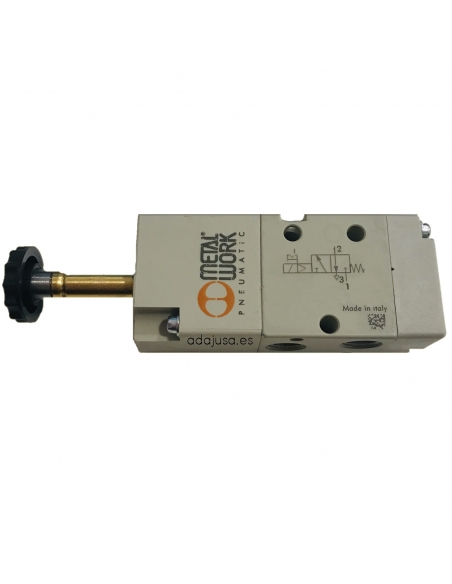

1/8 3-way monostable solenoid valve without coil - Metal Work - ADAJUSA

Solenoid valve 1/8 3 monostable roads without coil - Metal Work

€54.96

1x

Coil for solenoid valve 110Vac Metal Work W0215000121 Price

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.77

No queries yet, leave the first!

Pneumatic solenoid valve of 1/8 3 ways monostable, with coil of 110Vac. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Components included:

Solenoid valve 1/8- monostable.
Coils 110Vac 3.5VA.
Connector size 22

Features:

Manufacturer: Metal Work
Solenoid valve reference: SOV23SOSNC Code: 7010020200
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 7.5 mm
Conductance C Nl/min · bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min:1100
Monostable TRA/TRR at 6 bar ms: 19/45
Bistable TRA/TRR at 6 bar ms: 21/21
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15
Voltage: 110 Vac
Power: 3.5VA

Dimensiones electrovalvula 1/8-3/2 monoestable
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
