Solenoid valve 1/8 5 bistable roads assisted 110Vac 3.5VA - Metal Work

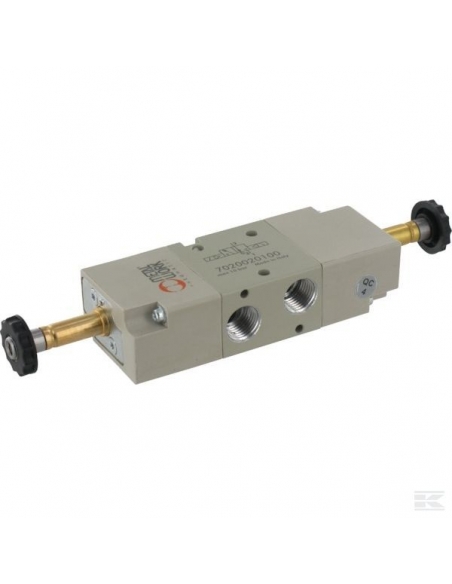

1/8" pneumatic electrovalves with 5 ways and 2 positions. Having independent pressure inlet for the pilot (assisted) allows to be used from 0 bars of pressure at the inlet.

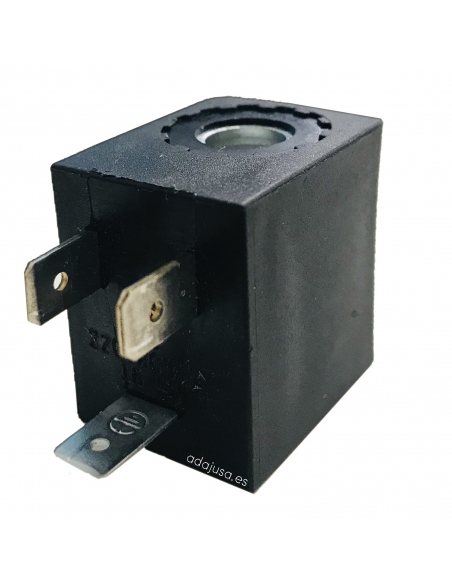

Coil for electrovalve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of Ø8mm.

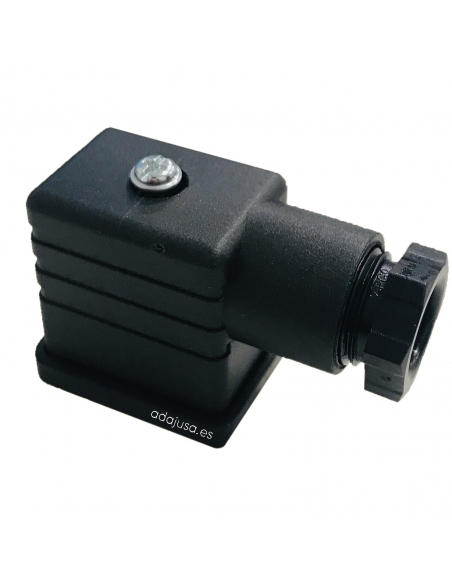

Plastic connector 22 mm

The supply includes:

• 1 Electrovalve 1/8 5/2 assisted bistable
• 2 Coils 110Vac 3,5VA
• 2 22mm connector

specifications:

• Manufacturer of the electrovalve: Metal Work.
• Electrovalve reference: 7010021600
• Voltage: 110Vac
• Consumption: 3.5VA
• Working pressure of the electrovalve: 2.5 to 10 bar.
• Minimum working pressure: 2.5 bar.
• Working temperature: -10ºC to 60ºC.
• Nominal diameter: 5mm.
• Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
• Manual drive: Yes.

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
