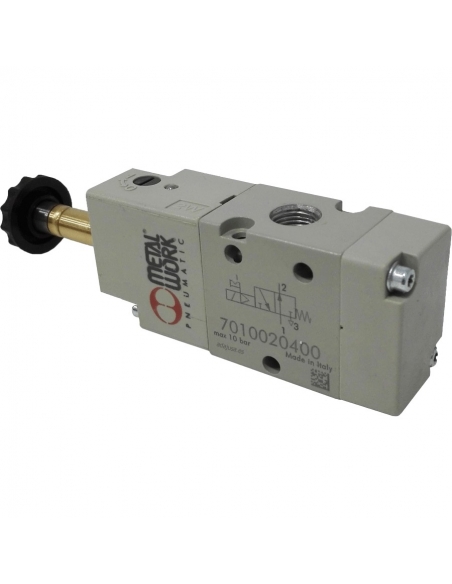

Solenoid valve 1/8 3 ways monostable open (NO) without coil - Metal Work - ADAJUSA

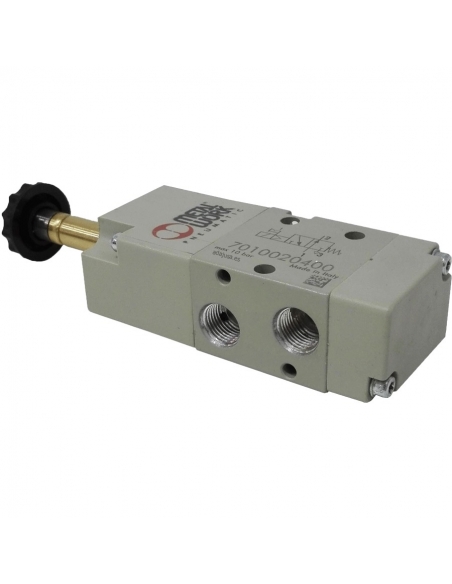

Solenoid valve 1/8 3 open monostable roads (NA) without coil - Metal Work - ADAJUSA

Solenoid valve 1/8 3 ways monostable open (NO) without coil - Metal Work - ADAJUSA

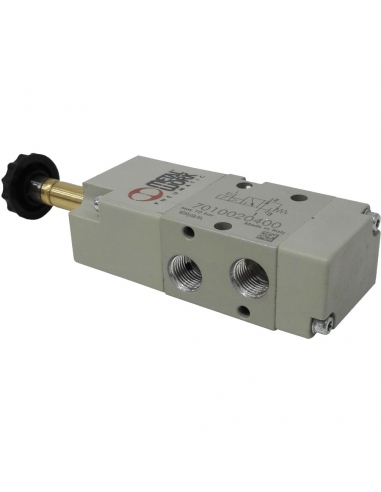

Solenoid valve 1/8 3 open monostable roads (NA) without coil - Metal Work - ADAJUSA

Solenoid valve 1/8 3 ways monostable NO without coil - Metal Work

€52.41 Tax included

€43.31 tax excl.

Electrovalve 1/8 3-way monostable without coil, normally open (NA).
Reference: 7010020400 - SOV 23 SOS NO

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic solenoid valve 1/8 3 way monostable, coil not included. For general and industrial applications. The solenoid valve is normally open (NO), that is, without tension in the coil, the inlet is communicated with the outlet, that is, there is air pressure at the outlet. When the coil is put into tension, the solenoid valve is activated, the air circulation between the inlet and outlet of the solenoid valve is interrupted, the outlet is connected to the exhaust.

Manufacturer: Metal Work

Metal Work Reference: SOV23SOSNO Code: 7010020400
characteristics:

Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 7.5 mm
Conductance C Nl/min · bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min:1100
Monostable TRA/TRR at 6 bar ms: 19/45
Bistable TRA/TRR at 6 bar ms: 21/21
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
