Solenoid valve 1/8 5 ways 3 positions assisted pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/8 5 way 3 positions assisted pressure centers - Metal Work

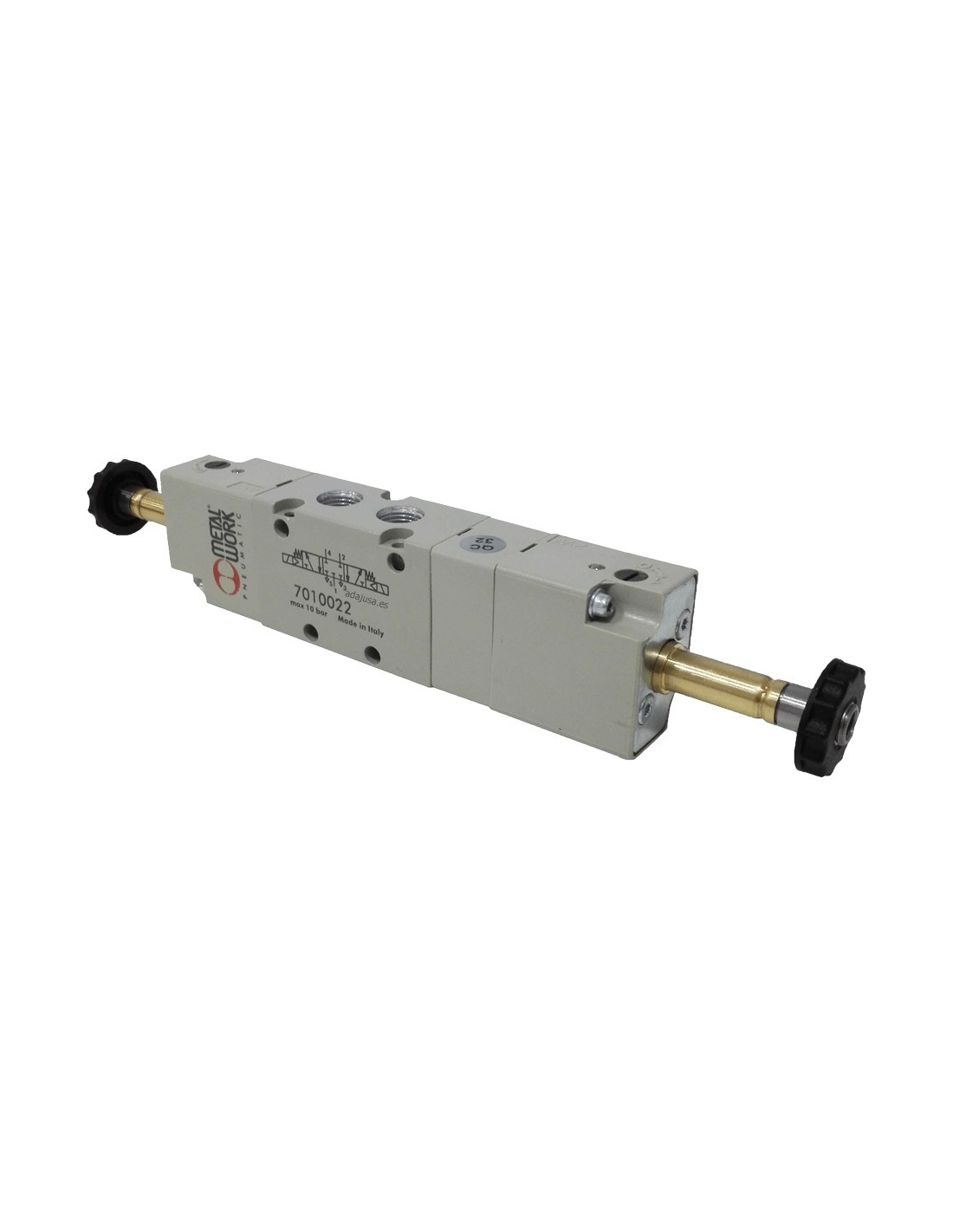

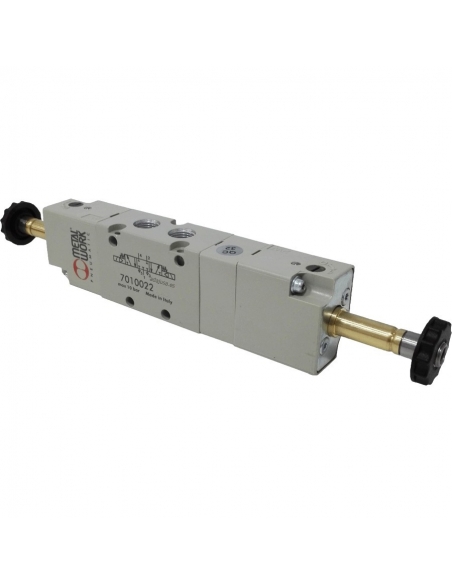

Name: Solenoid valve 1/8 5 way 3 positions assisted pressure centers - Metal Work
Brand: Metal Work
SKU: 7010022600
Price: 100.8656 EUR
Availability: PreOrder

€100.87 Tax included

€83.36 tax excl.

Solenoid valves of 1/8" of 5 ways and 3 positions,assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use.
Reference: 7010022500

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valves of 1/8" of 5 ways and 3 positions, assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010022500 - SOV 26 SES OC
Solenoid valve working pressure: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.

Dimensiones electroválvula 1/8 5/3 Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
