Full Start-Stop button box ADJ-E
Full Start-Stop button box ADJ-E

Full Start-Stop button box

€6.84 Tax included

€5.65 tax excl.

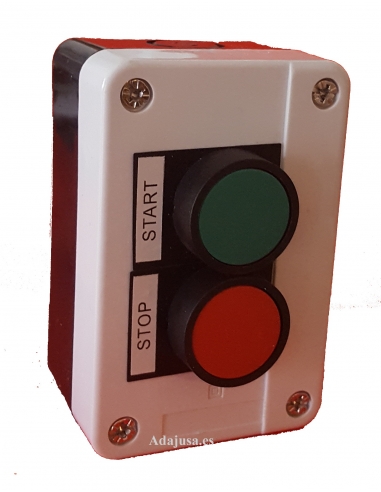

Box with start and stop button complete. Box made and pushbutton made of black-white plastic.

Supply includes:

  • Full green pushbutton.
  • Full red pushbutton.
  • Contact open.
  • Contact closed.
  • Plastic box for 2 elements.

The button is supplied mounted.

Ref: XAL-B211H29

Esquema eléctrico pulsador abiertoEsquema eléctrico pulsador cerrado ADJ-e

No queries yet, leave the first!
Privacy
Shipments
Returns


Button box with 2 pushbuttons, for "Start-Stop" function, green gear pushbutton, with "start" inscription, an open contact (NA), and red stop button, with "stop" inscription. Black and white case.

Supply includes:

  • Full green pushbutton.
  • Full red pushbutton.
  • Contact open.
  • Contact closed.
  • Plastic box for 2 elements.

The button is supplied with the fully mounted pushbuttons.

The box supports for each pushbutton, the assembly of another additional contact, open or closed. The maximum number of contacts per item is 2.

The dimensions of the case are: 68x134x51mm.

Features:

  • Manufacturer/Supplier: Denor
  • Ref: XAL-B211H29
  • Pushbutton type: Start button and stop button.
  • Pushbutton color: 1 Green and 1 red
  • Black-white plastic case.
  • Box height: 51mm.
  • Contacts: 1 NA and 1 NC.
  • Hole diameter: 22mm.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 m.
  • Degree of protection: IP40.

Dimensiones botonera 2 pulsadores ADJ-e
