Full Pilot-Start-Stop button box

€11.00 Tax included

€9.09 tax excl.

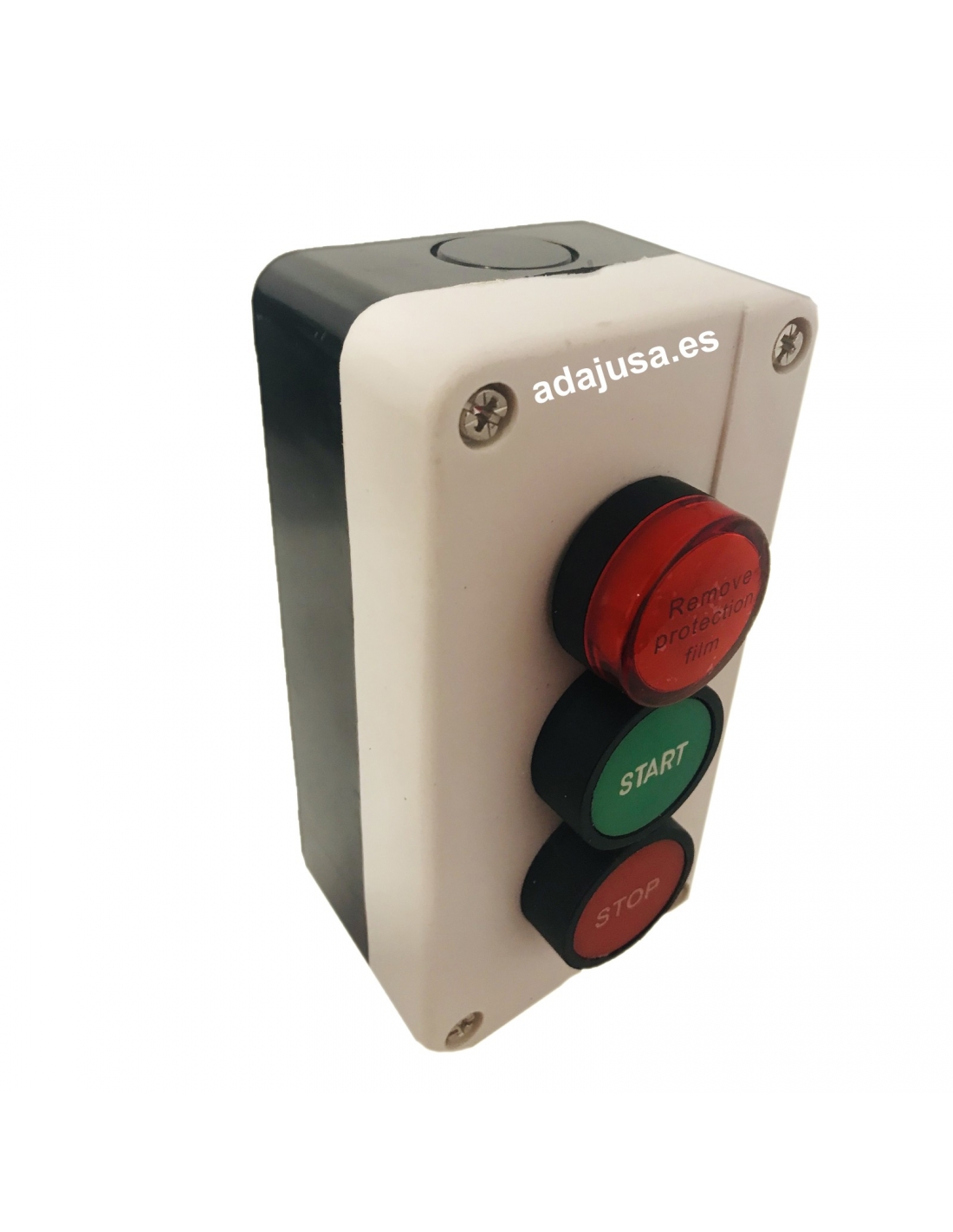

Box with start, stop and full red pilot pushbuttons. Box made and pushbutton made of black-white plastic.

The supply includes:

  • Reference: XAL-B376
  • Full green button.
  • Full red button.
  • Pilot red color (without bulb).
  • NO.
  • NC.
  • Bulb holder with Ba9s cap.

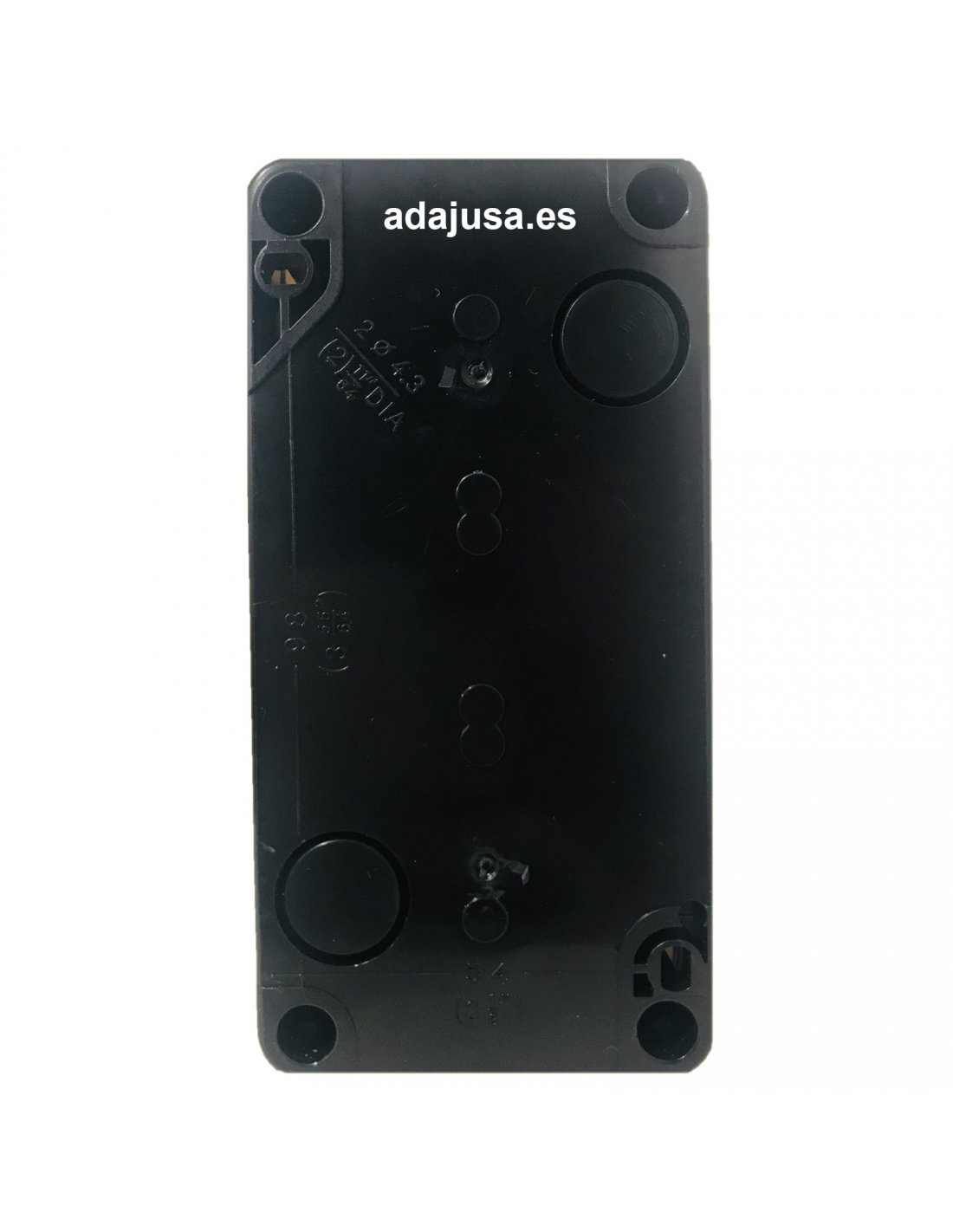

  • Plastic box for 3 elements.

No queries yet, leave the first!
Privacy
Shipments
Returns

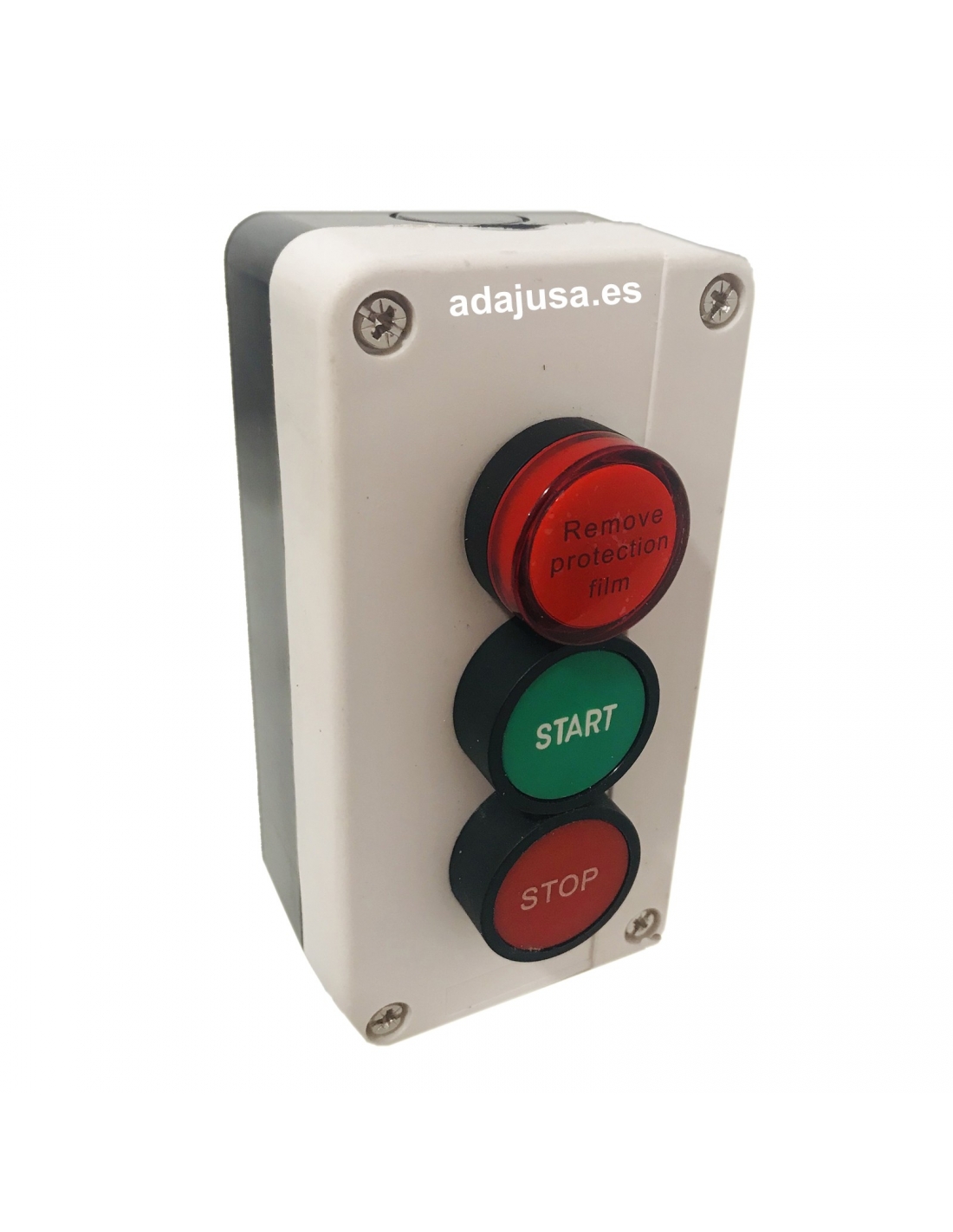

Button box of 2 pushbuttons with light indication in red color, for function "Start-Stop", green button of march, with inscription "start", no (NO) and button of red stop, with inscription "Stop", pilot luminous color for lamps with cap Ba9s. Box in black and white.

The supply includes:

  • Green button.
  • Red button.
  • Pilot red color (without lamp).
  • NO.
  • NC.
  • Lamp carrier type Ba9s.
  • Plastic box for 3 elements.

The button is supplied mounted. The lamp is not included in the supply, it must be ordered separately.

The box supports for each pushbutton, the assembly of another additional contact, open or closed. The maximum number of contacts per item is 2.

characteristics:

  • Manufacturer/Supplier: Denor.
  • Reference: XAL-B376
  • Type of pressure button: Start button, Stop button and red luminous pilot.
  • Button color: 1 green and 1 red.
  • Pilot color: red.
  • Black-white plastic box.
  • Box height: 130.5mm.
  • Contacts: 1 NA and 1 NC.
  • Lamp holder: Ba9s cap.
  • Maximum lamp voltage: 230V.
  • Maximum lamp power: 2W.
  • Diameter of the elements: 22mm.
  • Maximum intensity Ith: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 mΩ.
  • Degree of protection: IP40.

Dimensions button 3 elements

Dimensiones botonera 3 elementos

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
