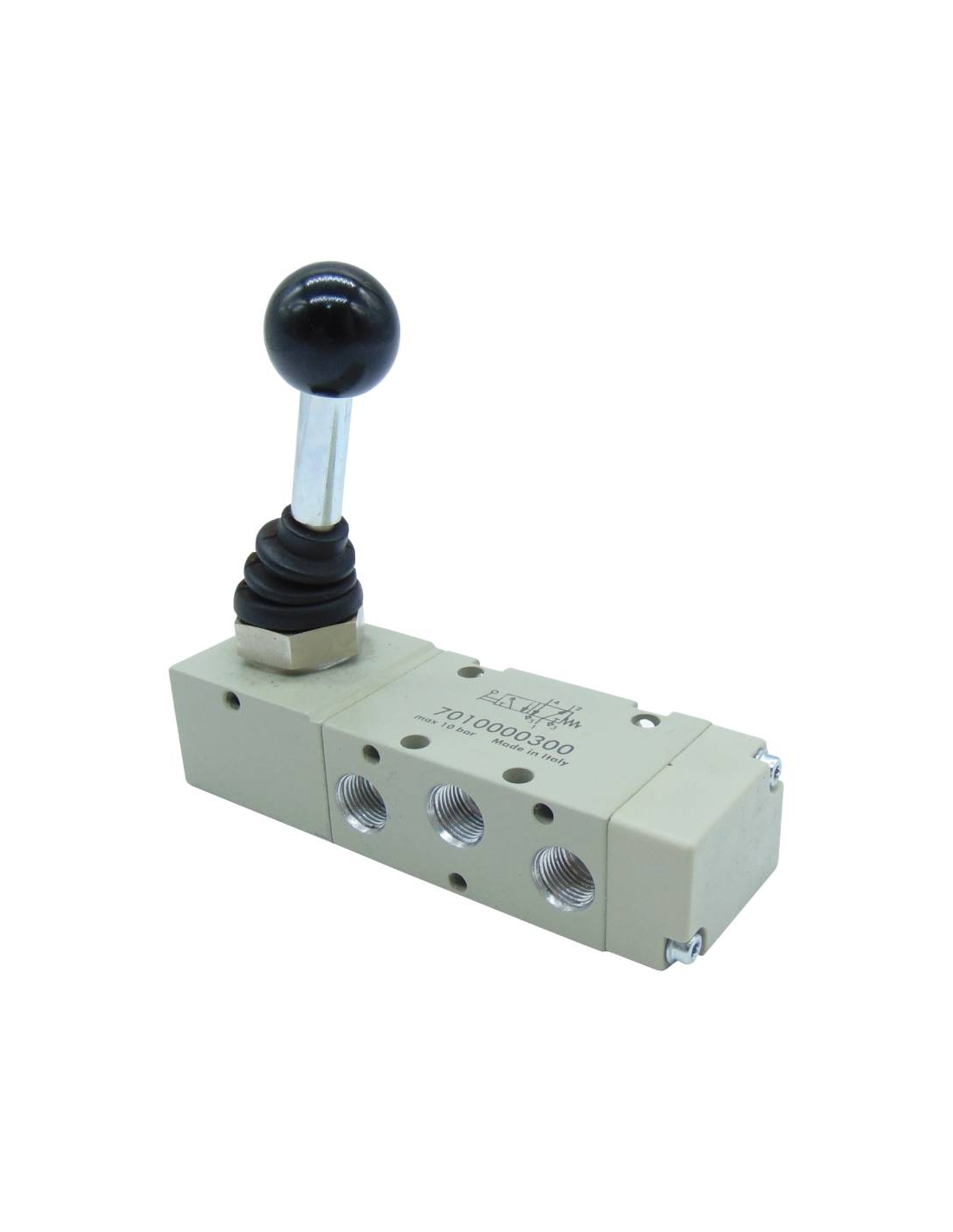

Valve manual lever 1/8 5 ways 2 positions bistable fixed lever 90 degrees - Metal Work
Valve manual lever 1/8 5 ways 2 positions bistable fixed lever 90 degrees - Metal Work

Valve manual lever 1/8 5 ways 2 positions bistable fixed lever 90 degrees - Metal Work

€45.51 Tax included

€37.61 tax excl.

Valve of 1/8 manual actuation by angle lever to bistable 90º . 5 ways 2 fixed positions, metal body. For control of double cylinders

Reference: 7010000400

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/8 manual drive by bistable lever of 2 fixed positions, 5 ways 2 fixed positions, which allow to control double effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: MAV 25 OO.
  • Code: 7010000400.
  • Fluid: Pressurized or vacuum air, with or without lubrication.
  • Valve Body: aluminum.
  • Sliding material: Nickel-plated aluminum.
  • Joints: NBR.
  • number of tracks: 5.
  • Size: 1/8".
  • Positions: 2 fixed.
  • Control: By lever.
  • Working pressure: Vacuum÷10 bar.
  • Temperature: -10÷60ºC.
  • Nominal diameter: 5mm.
  • Flow rate at 6bar ΔP 0.5bar: 400 Nl/min.
  • Flow at 6bar ΔP 1bar: 550 Nl/min.
  • Installation: in any position

Dimensiones válvula neumática Metal Work 7010000400 adajusa.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
