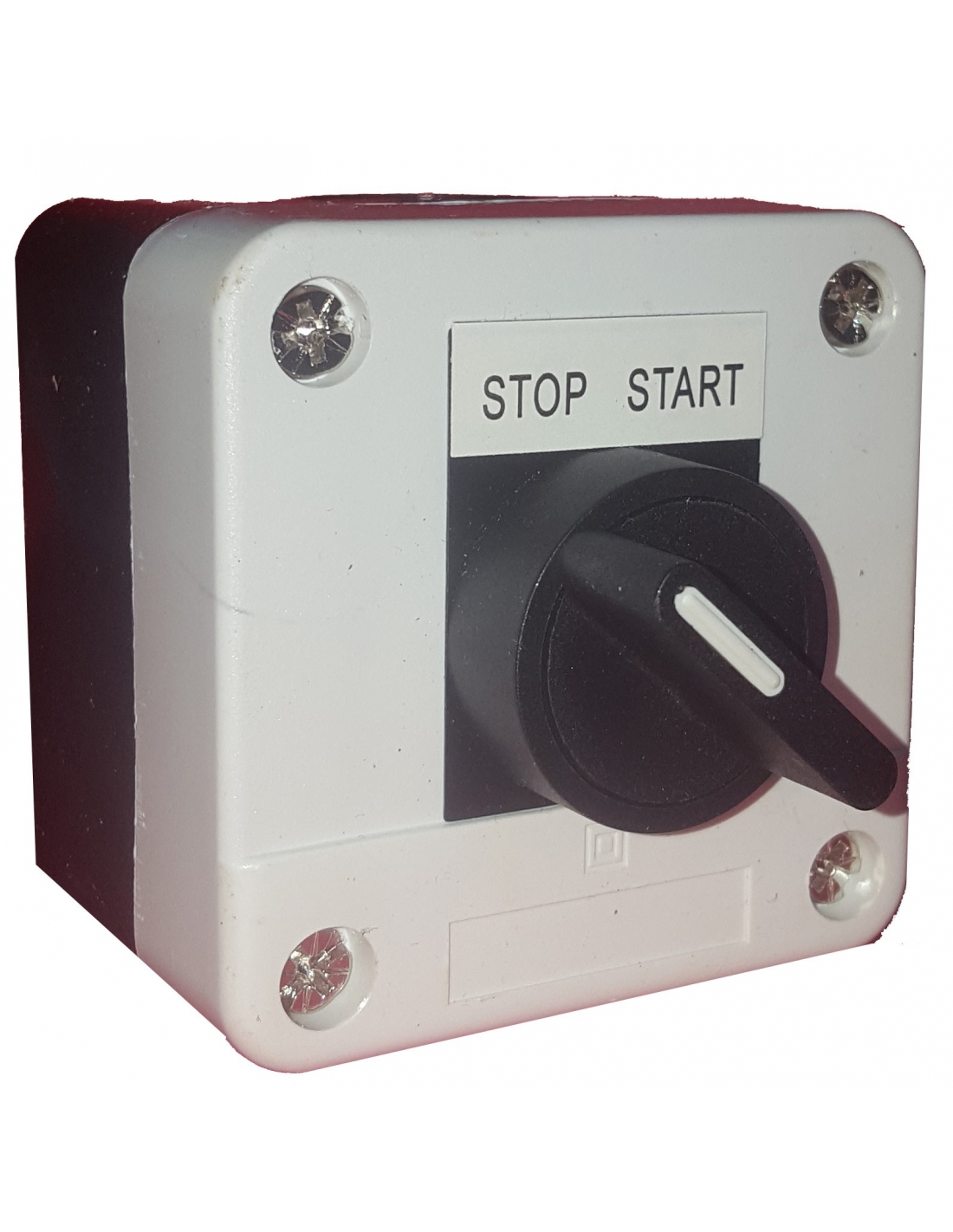

Selector box 2 stop positions - full start

Selector box 2 stop positions - full start

Selector box 2 stop positions - full start

€5.12 Tax included

€4.23 tax excl.

Box with selector 2 positions (stop-start) complete. Box and selector made of black-white plastic.

The supply includes the full selector, box and a no, all mounted.

Reference: XAL-B132H29

Esquema eléctrico selector dos posiciones

No queries yet, leave the first!

Box with selector two fixed positions, with "stop-start" inscription, an open contact (NA). Black and white case.

The supply includes the complete selector, box and an open contact, all assembled.

The box supports mounting additional contact, open or closed. The maximum number of contacts per item is 2.

The dimensions of the case are: 68x68x51mm.

Features:

Manufacturer/Supplier: Denor
Ref: XAL-B132H29
Selector type: 2 fixed positions (stop-start).
Pushbutton color: Black.
Black-white plastic case.
Box height: 51mm.
Contact: 1 NA.
Hole diameter: 22mm.
Ith nomial working intensity: 10 A.
Working intensity at 220 Vac: 4.5 A.
Maximum working voltage: 415 V.
Contact resistance: 50 m.
Degree of protection: IP40.

Dimensiones cajas pulsadores montadas XAL

Pushbutton box assembled

Pushbutton box assembled

Download (449.38KB)

Questions

Be the first to ask a question about this product!
