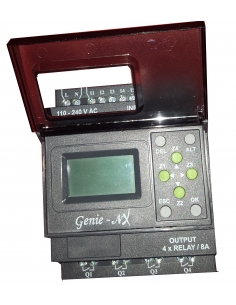

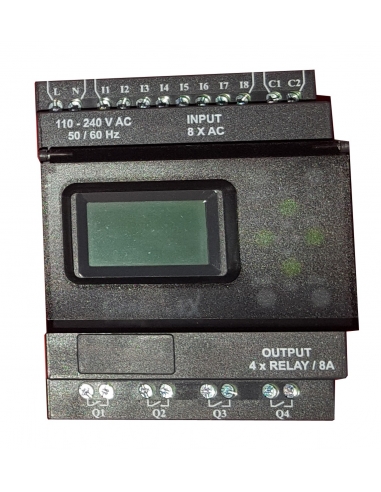

Genie 110-240Vac programmable relay
Genie 110-240Vac programmable relay
Genie 110-240Vac programmable relay
Genie 110-240Vac programmable relay
Genie 110-240Vac programmable relay
Genie 110-240Vac programmable relay

Genie 12-24Vdc programmable relay

€163.89 Tax included

€135.45 tax excl.

The Genie-NX programmable logic relay is designed for simple machine and installation automation. All programming settings can be made using the built-in keyboard and display or with the programming software.

It can be done in a very simple way complex timers and time programmers.

Reference: G8DDT9

No queries yet, leave the first!


The Genie-NX programmable relay provides excellent performance and functionality for simple, time, counter, and real-time logical operations. It is designed for simple control applications such as building equipment, air conditioning (HVAC), lighting, parking, machinery and other applications. All programming settings and data can be made using the built-in keyboard and display, or with the programming software.

Programming the Genie-NX relay with the help of the configuration software is very simple, without the need for programming knowledge. Facilitates program generation, simulation and project documentation.

The base module has 8 digital inputs and 4 relay outputs, can be expanded by adding expansion modules up to a maximum of 3, each with 8 digital inputs and 4 outputs, with a maximum of 48 inputs/outputs (32 digital inputs and 16 outputs).

It has a backlit LCD display for viewing and modifying the pre-selected parameters of function blocks, viewing the status of inputs and outputs and programming, as well as the display of user-defined messages.

Ladder programming is performed using the programming software on PC or on the device with the help of the keyboard and LCD screen.

Built-in keyboard with soft touch for creating and editing programs on your device.

The programmable relay can be blocked by using a password.

Summary of technical characteristics:

  • Reference: G8DDT9.
  • Supply voltage: 12-24Vdc. -20%+10%.
  • Consumption: 5W.
  • Tickets: 8.
    • Digital: 6.
    • Analog: 2 (Can be used as digital).
  • Input voltage:
    • OFF: 0-4Vdc.
    • ON: 8-26.4Vdc.
  • Digital outputs: 4 NO.
  • Output characteristics (resistive load): 8A @240Vac, 5A x 30Vdc.
    • CATEGORY AC-15: 120/240V 3/1.5A.
    • Category DC-15: 24/125/250V 2/0.22/0.1A.
  • Electrical life output contacts: 10⁵.
  • Mechanical life output contacts: 10⁷.
  • Maximum number of extensions: 3.
  • Power reserve (clock only): 150h (-10oC.. +55oC).
  • Programming lines: 250.
  • Function block:
    • Timers: 16 (13 different functions).
    • Counters: 16 (Up/down, retentive selectable).
    • Time switch: 16 (weekly/daily).
    • Counter comparator: 16.
    • Text messages: 16 (with priority).
    • Auxiliary relays: 32.
    • Analog functions: 12.
  • Operating temperature: -10oC.. +55oC.
  • Envelope: ignition according to UL94-V0.
  • Dimensions (WxXD)mm: 72x90x65.
  • Weight: 230g.
  • Mounting: DIN Base/Rail.
  • Degree of protection: IP20 for terminals, IP40 for envelope.

Electrical connection:

Conexion relé logico programable Genie-Nx

Dimensions:

Dimensiones rele logico Genie-NX
