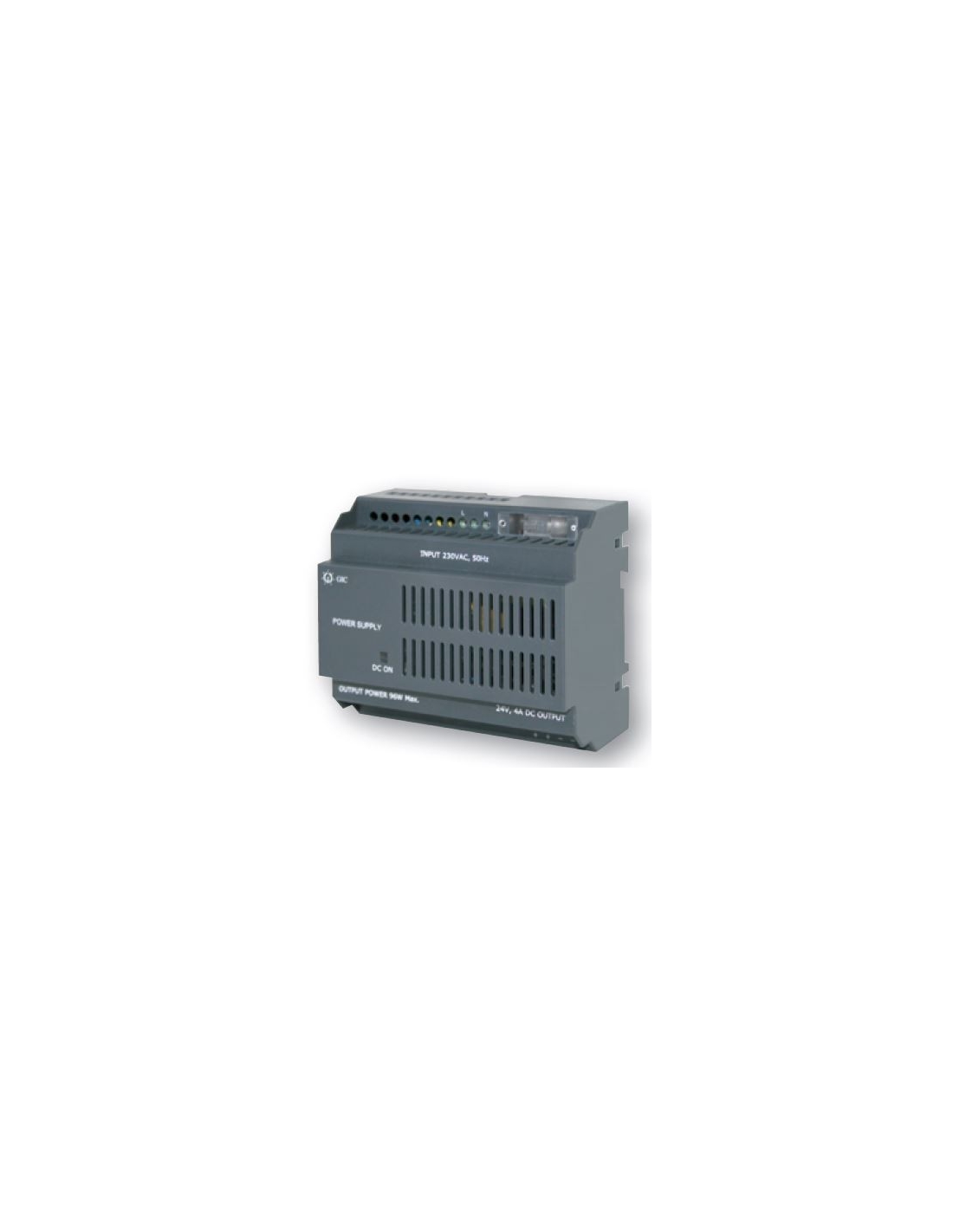

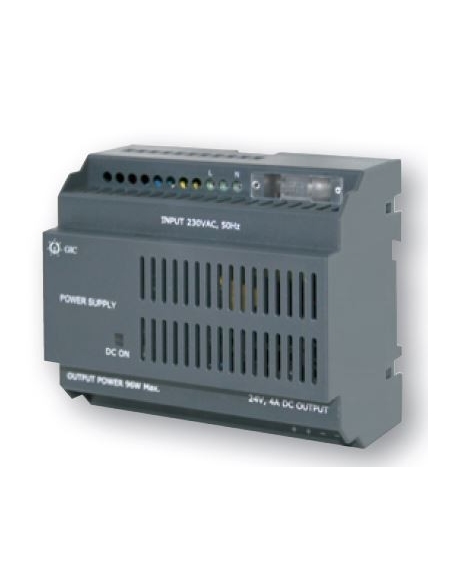

Genie 110-240Vac 24Vdc 4A power supply
€103.78
Tax included
€85.77 tax excl.
Genie power supply, 24Vdc single output and 4A rated current, 96W of power. Supply voltage 110 to 240Vac., protected against overloads and short circuits.
Excellent load and line regulation, mounting on base or DIN rail.
Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.
Genie single output 24Vdc power supply, rated current 4A, and 96W of power. Supply voltage 100..240Vac.
With excellent load and line regulation, high noise immunity and low ripple. Protected from overloads and short circuits and easy to maintain.
Technical characteristics:
- Manufacturer/Supplier: LG/VMC
- Reference: VMC24AS244D6D
- Mounting: On Base or On DIN rail.
- Supply voltage: 230Vac. (-30% to +15%)
- Frequency: 50Hz.
- Consumption without load: 0.5W Max at 230VAC.
- Input intensity: Cold start 50A/230Vac.
- Leakage current:
- Voltage: 24VDC
- Rated current: 4A
- Rated Power: 96W
- Output voltage accuracy: ±1%
- Line and load regulation: 1%
- Ripple and noise: 150mV (PP)
- Surge Protection: 26V-33V
- Overload capacity: 168% of the rated power (Max 10 sec).
- Operating temperature: -10ºC to +55ºC.
- Enclosure: According to UL 94-VO regulations
- Dimensions (mm): 105x90x58
- Weight: 350g
Material for professional use, install in compliance with the regulations in force at the place of installation.
