Box complete emergency stop pushbutton

€6.52 Tax included

5.39 tax excl.

HB2-J174

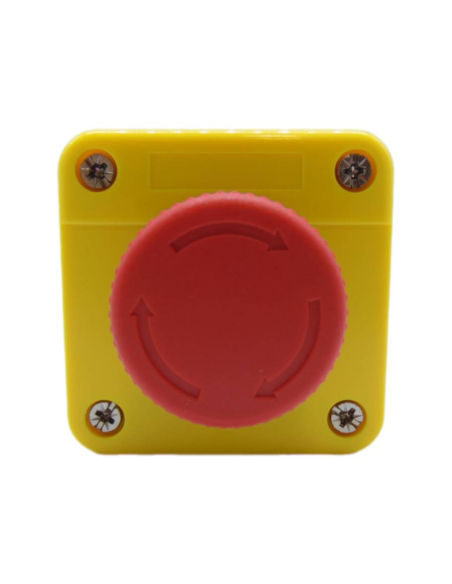

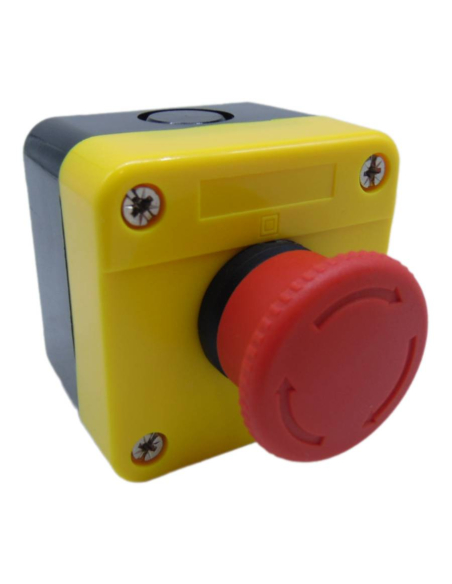

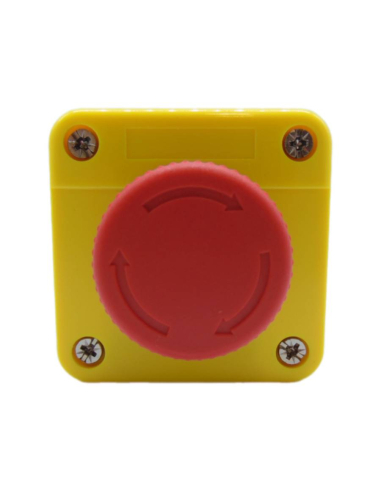

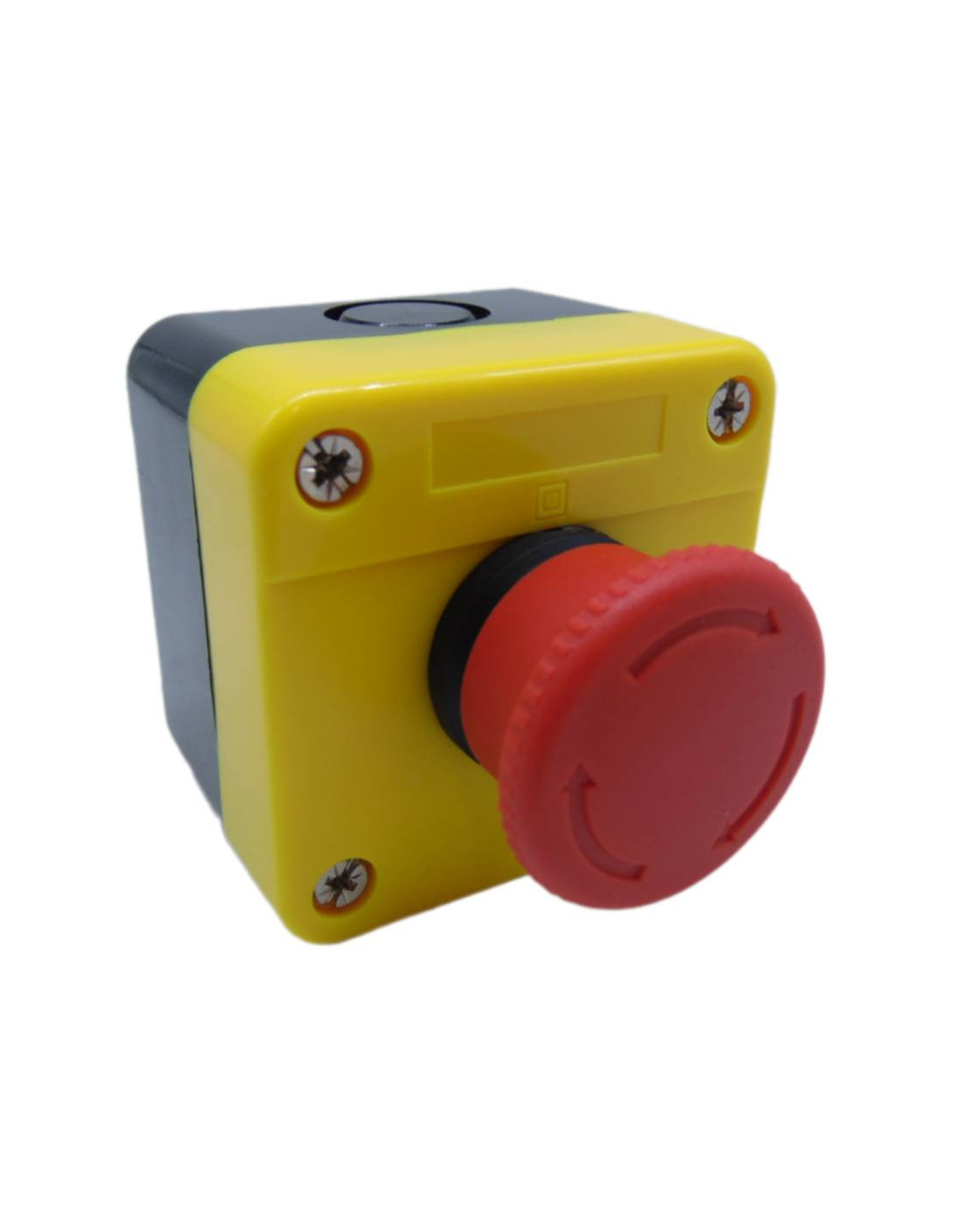

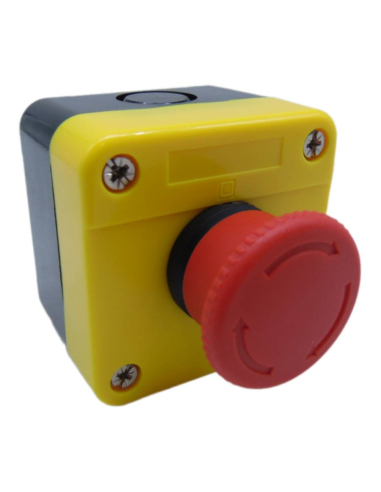

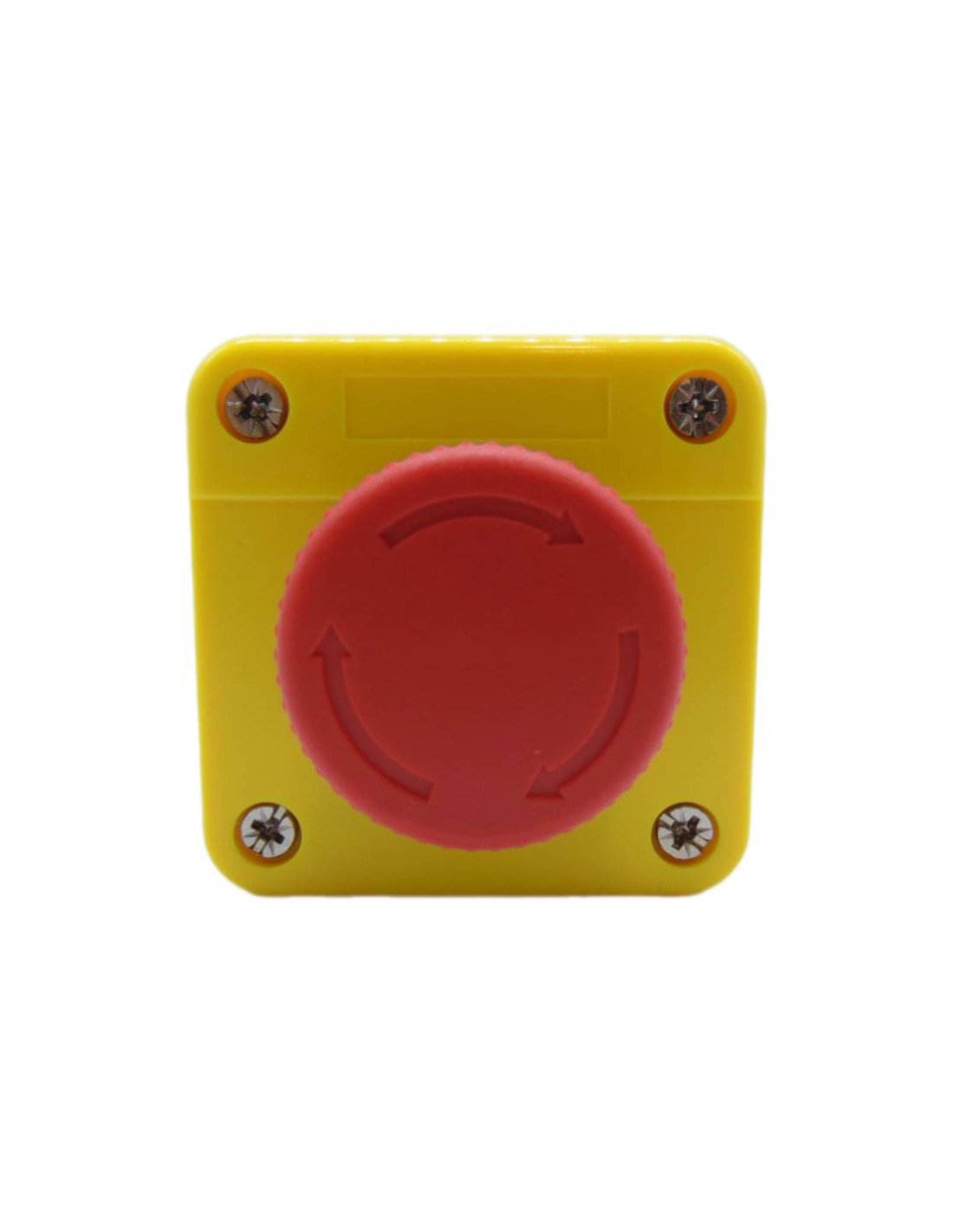

Box with emergency stop button, 40mm diameter mushroom , complete. Unlocking by turning. Box made of yellow-black plastic.

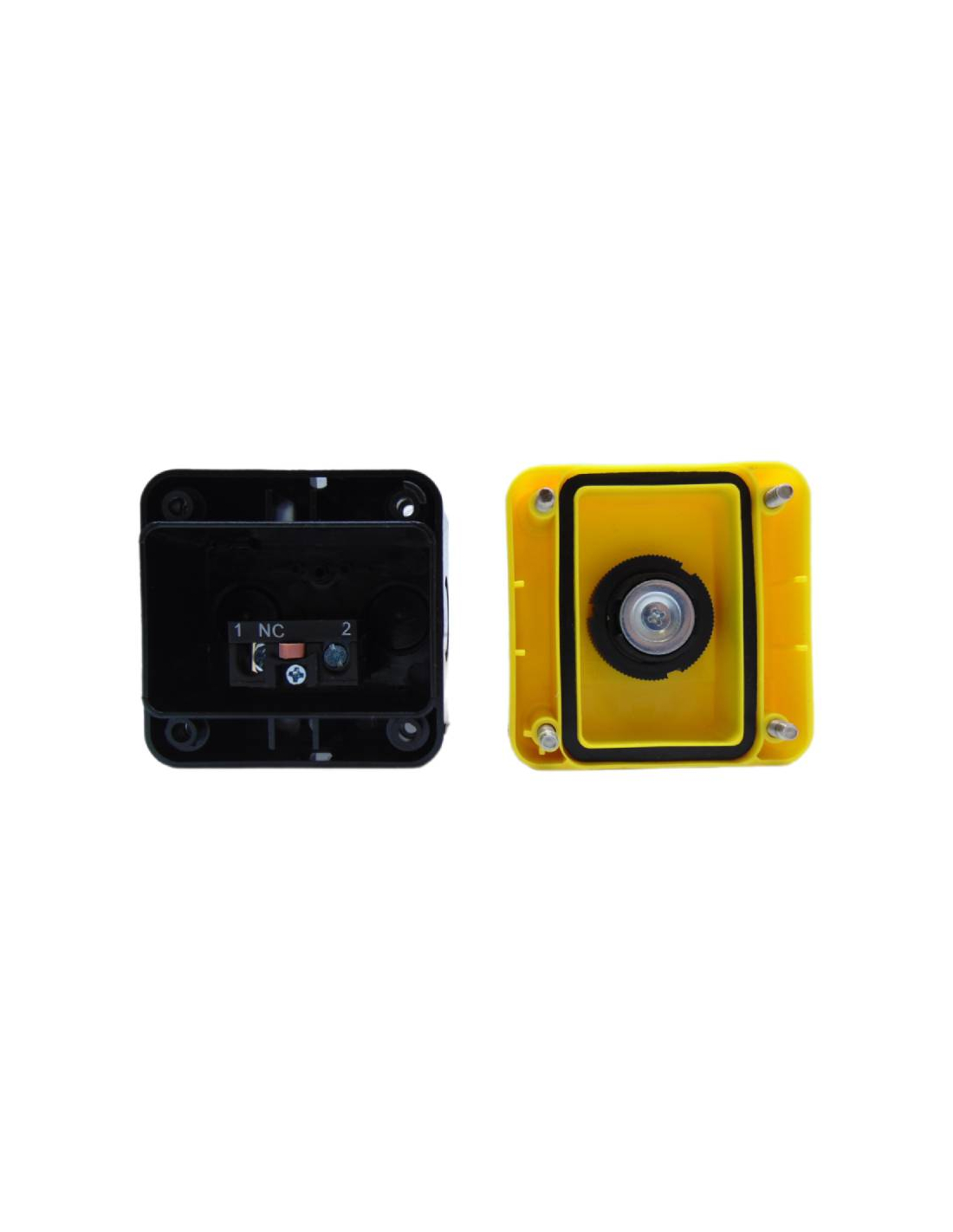

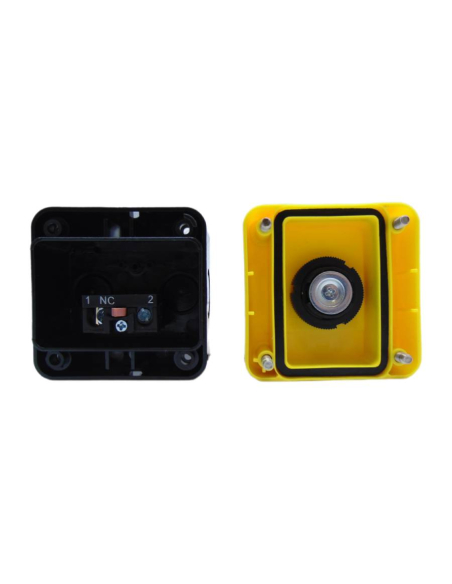

The supply includes the complete push button, box and a closed contact, all assembled.

esquema eléctrico pulsador de emergencia

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Box with stop push button (mushroom), Ø40mm with interlocking, 1 NC contact. Box in yellow, turn to unlock.

The delivery includes the complete pushbutton, housing and a closed contact, all mounted.

The enclosure can be fitted with an additional contact, open or closed. The maximum number of contacts per element is 2. The additional contacts must be "bottom-mounted push-button box contacts".

The dimensions of the box are: 68x68x51mm.

fEATURES:

Manufacturer/Supplier: Generico-TRA
Mushroom diameter: 40mm
Unlocking mode: by turning
Box in yellow plastic
Box height: 50mm
Contact1 NC
Drill diameter: 22mm
Rated working current Ith: 10 A
Working current at 220 Vac: 4,5 A
Maximum working voltage: 415 V
Contact resistance: 50 mΩ
Degree of protection: IP40

Dimensiones cajas pulsadores montadas XAL

Material for professional use, install in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Emergency stop push box with full key

Emergency stop push box with full key 2

Stop and emergency pushbuttons

Full stop mushroom-head push box with key

€8.62 (€7.12 tax excl.)

Box with push button (mushroom-head) of complete stop, unlocking by key. The supply includes the complete push button, box, a closed contact and key, all assembled.Reference: XAL-B184H29 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Harmony XB4 Contact element na SCHNEIDER | ADAJUSA | price

Harmony XB4 Contact element na SCHNEIDER | ADAJUSA | price 2

Buttons

Open contact NO Harmony XB4 - SCHNEIDER

€3.06 (€2.53 tax excl.)

Open contact (NO) for pushbuttons and complete selector switches of the HARMONY XB4 metal series and the HARMONY XB5 plastic series. It is easily installed or replaced by means of a clip and is connected to the control circuits by means of simple screw terminals. Reference: ZBE101 Representative image for illustrative purposes, the item supplied will...

View

Red 90 diameter screen push box

Red 90 diameter screen push box 2

Stop and emergency pushbuttons

Red 90 diameter mushroom-head push box - Giovenzana

Giovenzana Internacional B.V.

€16.94 (€14.00 tax excl.)

Large diameter mushroom-head push-buttonbox, 90mm, momentary action and red. Ideal for emergency stop applications where high accessibility is required. 1 positive opening closed contact (NC). Red screen pushbutton with axial drive (front), momentary action (no interlocking) Pushbutton color: red Ref: PG1M9W01

Closed contact

Closed contact 2

Buttons

Closed contact

€0.74 (€0.61 tax excl.)

Closed Contact (NC). To be mounted on electric pushbuttons, both plastic and metal, XB2 series.Reference: NG22-BE102 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Emergency stop pushbutton diameter 40 mm

Emergency stop pushbutton diameter 40 mm 2

Stop and emergency pushbuttons

Full-size screen stop pushbutton 40 mm

€2.63 (€2.17 tax excl.)

Stop pushbutton type mushroom-head, made of plastic material, diameter 40 mm and with interlocking, twist release, 1 closed contact (NC). The supply includes the complete pushbutton with one closed contact.Part number: NG22-ES542 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Push box full emergency stop - Giovenzana

Push box full emergency stop - Giovenzana 2

Stop and emergency pushbuttons

Complete emergency stop push button box - Giovenzana

Giovenzana Internacional B.V.

€15.97 (€13.20 tax excl.)

Emergency stop push button box with interlocking , unlocking by turning. It has a closed contact (NC) with positive opening. Complies with specific regulations for elevators and machines, allowing all safety requirements to be met. Made in Europe. The supply includes the complete button, box, closed contact and cable gland. Reference: TLP1.ETR...

Emergency pushbutton diameter 40 plastic with key | ADAJUSA

Stop and emergency pushbuttons

Screen stop pushbutton 40 with full key

€5.45 (€4.50 tax excl.)

Stop button type mushroom-head in plastic material, diameter 40mm with interlock, key release, 1 NC contact. The supply includes the complete push button with one closed contact.Reference: XB2-ES142 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Mushroom stop button diameter 40 metallic 2NC+1NO XB4 SCHNEIDER : ADAJUSA : price

Mushroom stop button diameter 40 metallic 2NC+1NO XB4 SCHNEIDER : ADAJUSA : price 2

Stop and emergency pushbuttons

Emergency stop push button diameter 40 2NC + 1NO (push-turn) Harmony XB4 - SCHNEIDER

€36.38 (€30.07 tax excl.)

Emergency stop push button, red mushroom 40 mm diameter, 2 closed contacts and 1 open contact, metal body and chrome edge. Mechanical interlock and twist release. The supply includes the complete push button with two closed contacts and one open contact (2 NC + 1 NO). Mounting diameter 22.5 mm. Cable fastening by screw.Order No.: XB4BS84441...

40mm illuminated plastic emergency push button NYG3-ETR | ADAJUSA | price

Stop and emergency pushbuttons

40mm emergency push button with turn release indicator - NY Series

€8.14 (€6.73 tax excl.)

40mm diameter emergency push button with twist interlocking and release, closed contact (NC) . Mushroom-type push button with visual status indication and STOP marking, made of plastic, mounting hole diameter 22 mm. Intended for mounting on machinery control panels and control boxes in general. It offers high protection on the front side, IP65. The supply...

Emergency stop pushbutton diameter 30 mm complete

Stop and emergency pushbuttons

Full stop pushbutton of 30

€3.07 (€2.54 tax excl.)

Stop button type mushroom-head in plastic material, diameter 30 mm with interlocking, debloquo per turn, 1 closed contact (NC). The supply includes the complete pushbutton with a closed contact.Reference: XB2-ES442

Harmony XB4 full body contact na SCHNEIDER | ADAJUSA : price

Harmony XB4 full body contact na SCHNEIDER | ADAJUSA : price 2

Buttons

Open contact NO (full body) Harmony XB4 - SCHNEIDER

€5.29 (€4.37 tax excl.)

Open contact (NO) with mounting collar for mounting on HARMONY XB4 metal series pushbutton and selector heads. It is easily installed or replaced by means of a clip and connected to the control circuits by means of single screw terminals. The supply includes the open contact and the fixing base for connecting the XB4 heads to the contact blocks. Part...

Emergency stop head red mushroom Ø40 XB5 SCHNEIDER : ADAJUSA : price

Emergency stop head red mushroom Ø40 XB5 SCHNEIDER : ADAJUSA : price 2

Stop and emergency pushbuttons

Emergency stop head diameter 40 (push-pull) Harmony XB5 - SCHNEIDER

€23.37 (€19.31 tax excl.)

40 mm diameter red mushroom emergency stop head, interlocking mechanical with push-pull mechanism. Manufactured with plastic bezel, ideal for applications requiring good chemical resistance or double electrical isolation. Designed to fit in a standard 22 mm die-cut.Ordering Number: ZB5AT84 Representative image for illustrative purposes, the item supplied...

Harmony XB5 complete body contact 2nc SCHNEIDER | ADAJUSA | price

Harmony XB5 complete body contact 2nc SCHNEIDER | ADAJUSA | price 2

Buttons

Contacts closed 2NC (complete body) Harmony XB5 - SCHNEIDER

€7.91 (€6.54 tax excl.)

Contacts with clamping collar for mounting on plastic HARMONY XB5 series pushbutton and selector heads. It is easily installed or replaced by means of a clip and connected to the control circuits by means of single screw terminals. The scope of delivery includes 2 closed contacts and the fixing base for connecting the XB5 heads to the contact blocks....

Closed contact NC screw connection - Giovenzana

Buttons

Closed contact NC screw connection - Giovenzana

Giovenzana Internacional B.V.

€4.79 (€3.96 tax excl.)

Block of nc (NC) to be installed in pushbuttons and control of the giovenzana brand. Contact connection by screw, red color. Reference: PL004001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Emergency stop push button red mushroom Ø40 push-pull XB5 SCHNEIDER | ADAJUSA | price

Emergency stop push button red mushroom Ø40 push-pull XB5 SCHNEIDER | ADAJUSA | price 2

Stop and emergency pushbuttons

Emergency stop push button diameter 40 (push-pull) Harmony XB5 - SCHNEIDER

€21.86 (€18.07 tax excl.)

40 mm diameter red mushroom emergency stop push button with 1 closed contact (NC), interlocking mechanical push-pull mechanism. Manufactured with plastic bezel, ideal for applications requiring good chemical resistance or double electrical isolation. Designed to fit in a standard 22 mm die-cut.The supply includes the complete push button with 1 NC closed...

View

Button box with mushroom stop button Ø40 NYGBC42PT| ADAJUSA | price

Pack

Button boxes with controls already installed

Box with metal stop mushroom push button Ø40 complete - NYG Series

€8.65 (€7.15 tax excl.)

Box with non- interlocking mushroom stop button, diameter 40mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBC42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Customers who bought this product also bought:

Plug Schuko 16A TICS-212GH| ADAJUSA : price

Plug Schuko 16A TICS-212GH| ADAJUSA : price 2

Power outlets

Schuko socket 16A 2P+T IP44 with grip

€3.64 (€3.01 tax excl.)

16A 2P+T Schuko type plug socket. Plug socket with cover, protection degree IP-44, black color.Reference: TICS-212GHRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

MK series surface box without door for various adajusa

Modular distribution chests

Modular box 8 elements surface mount without MK series door

€4.28 (€3.54 tax excl.)

Modular box to accommodate switchboard and electrical elements (Differentials, magnetothermic ...), of 8 modules, mounting on surface or wall. Monoblock type without IP20 door.reference: MK8 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

TGV2 motor protection Motor circuit breaker 13A to 18A | ADAJUSA | price

TGV2 motor protection Motor circuit breaker 13A to 18A | ADAJUSA | price 2

Motor guard circuit breakers motor protection

Motor circuit breaker 13A to 18A TGV2 Series

€27.25 (€22.52 tax excl.)

Three-phase Motor circuit breaker for protection of electric motors. The regulation of the motor protection circuit breaker is between 13A to 18A. The installation of a motor protection circuit breaker prevents the breakdown of electric motors, both single-phase and three-phase, due to overload or failure of a phase or short circuit.Reference: TGV2-20...

Three-phase contactor 18A coil 400Vac - Schneider

Three-phase contactor 18A coil 400Vac - Schneider 2

Schneider contactors

Three-phase contactor 18A coil 400Vac - Schneider

€44.17 (€36.50 tax excl.)

Three-phase contactor brand Schneider Electric, TeSys Dseries. 3 poles with a current capacity of 18A in AC3 and 32A in AC1, with 400Vac coil. Equipped with an open (NA) and a closed (NC) auxiliary contact. Reference: LC1 D18V7 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Self-locking nuts

Normal type Self-Locking Nut M50x1.5 KMA Series - ISB

€8.00 (€6.61 tax excl.)

Self-locking nut with nylon inner ring, mainly used to secure bearings on shafts. Made of Steel. Reference: KMA 10 GTN50 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Closed contact red pushbutton (NC)

Buttons

Closed contact red pushbutton (NC) complete

€1.57 (€1.30 tax excl.)

Industrialelectric push button, red color and with a closed contact (NC). The electric push button can be mounted on 22mm through holes. The main use of the electric push button is to be mounted on electrical control panels of machinery and on electrical control boxes in general. Made of plastic material. Complete push button with one closed...

Metric thread glands

Glands M20 grey polyamide with nut

€0.24 (€0.20 tax excl.)

Polyamide (Nylon) cable car presses with M20x1.5mm thread, nut and NBR gasket included. Grey.Reference: XBS-M20 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Earplug 4 plastic

Earplug 4 plastic 2

Plug (R9)

Plastic spike plug 4 - Metal Work

€0.38 (€0.31 tax excl.)

Spike cap inserted diameter 4mm in plastic. This plug allows to seal an outlet of a fitting or pneumatic element of diameter 4 to avoid the exit of pressurized air.Reference: 2L10001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Button box 6 elements diameter 22 plastic

Pushbutton boxes

Button box 6 elements diameter 22 plastic

€8.91 (€7.36 tax excl.)

Button box for 6 elements diameter 22 mm in gray plastic.Reference: XDL5-B06

View

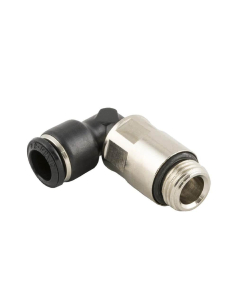

Extended swivel elbow fitting 1/8 pipe 4mm Series 55000 - Aignep: ADAJUSA
