Emergency stop head diameter 40 (push-pull) Harmony XB5 - SCHNEIDER

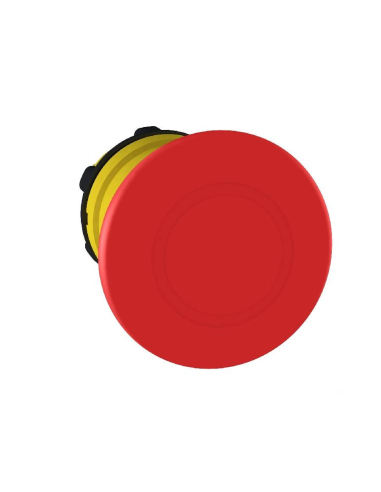

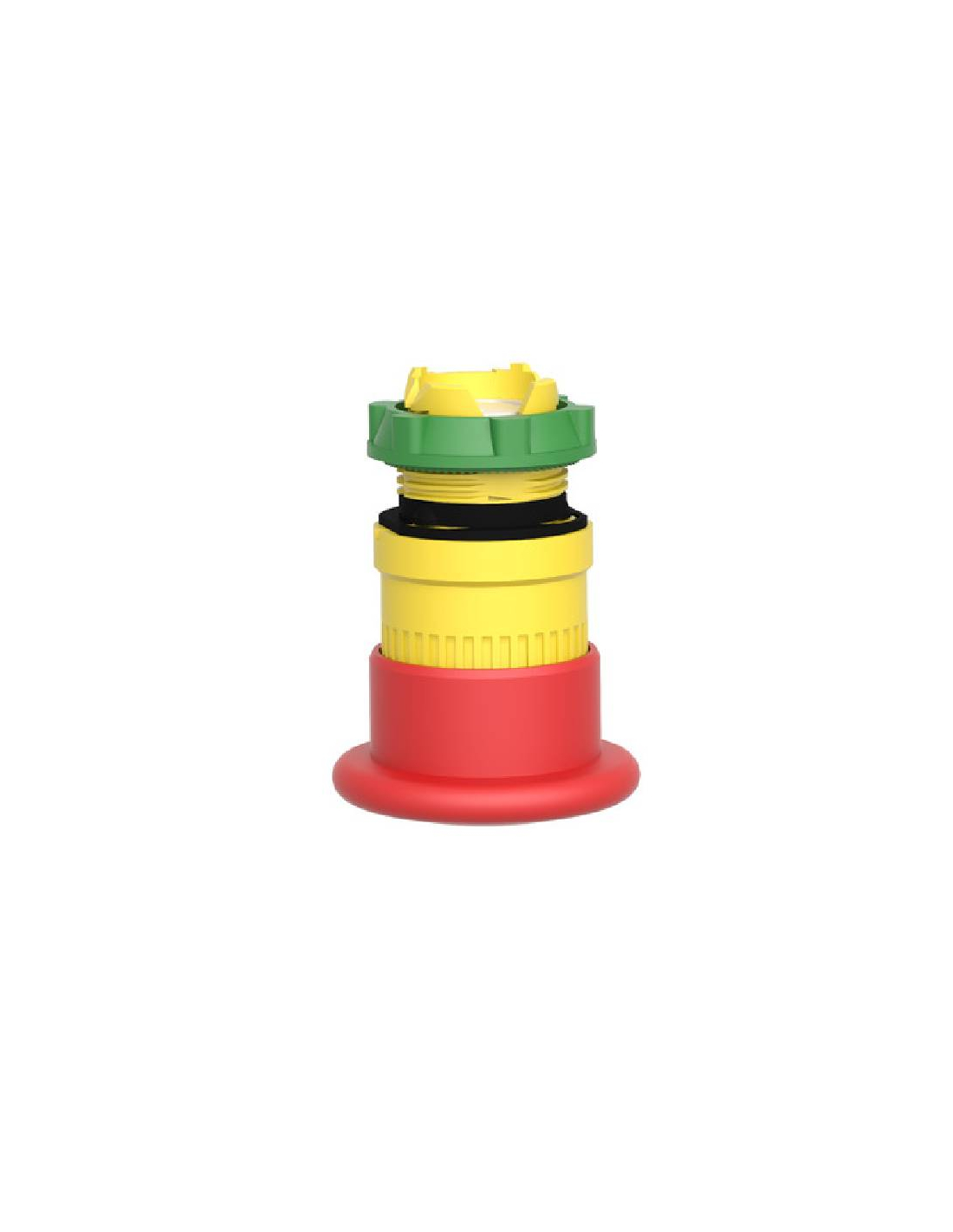

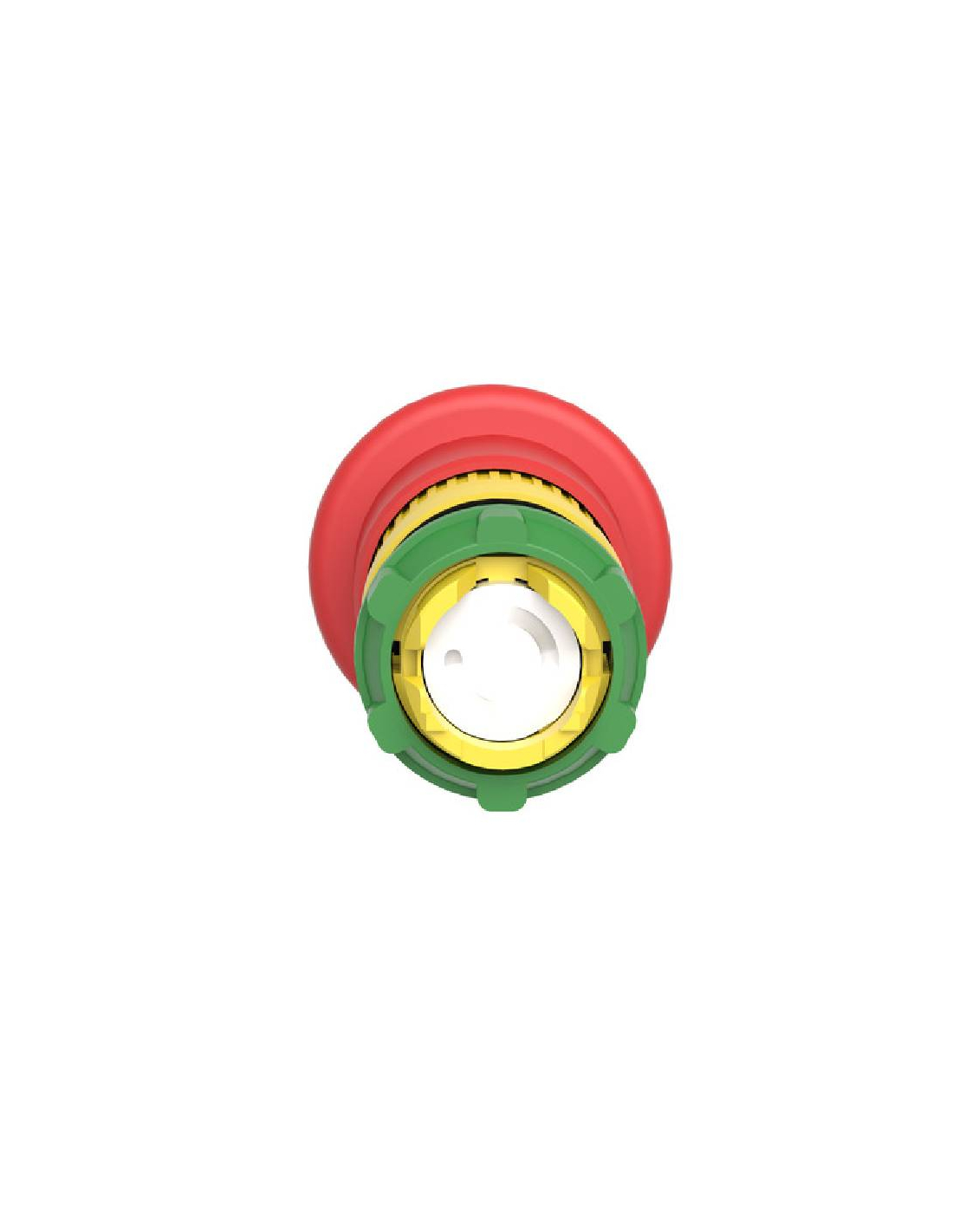

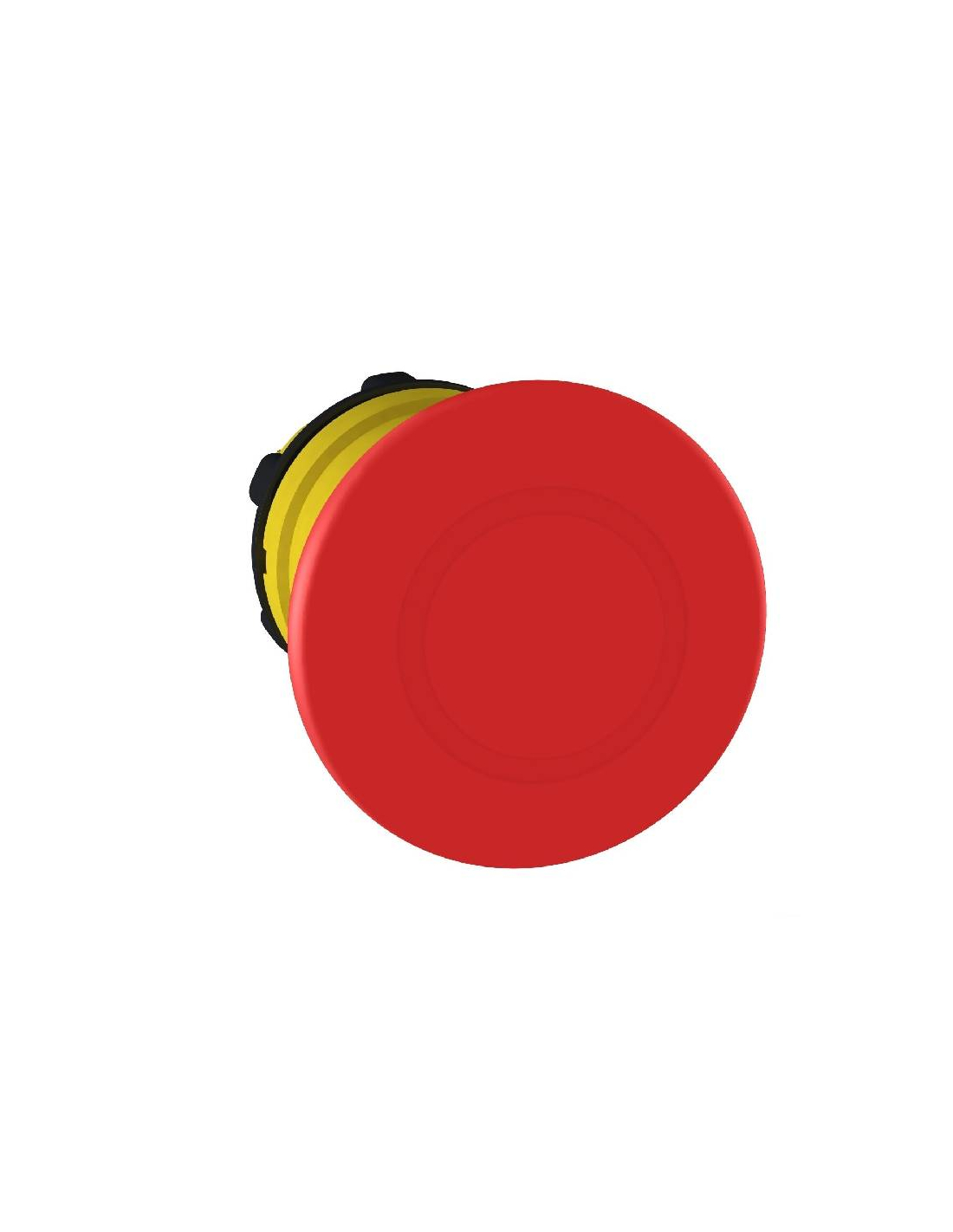

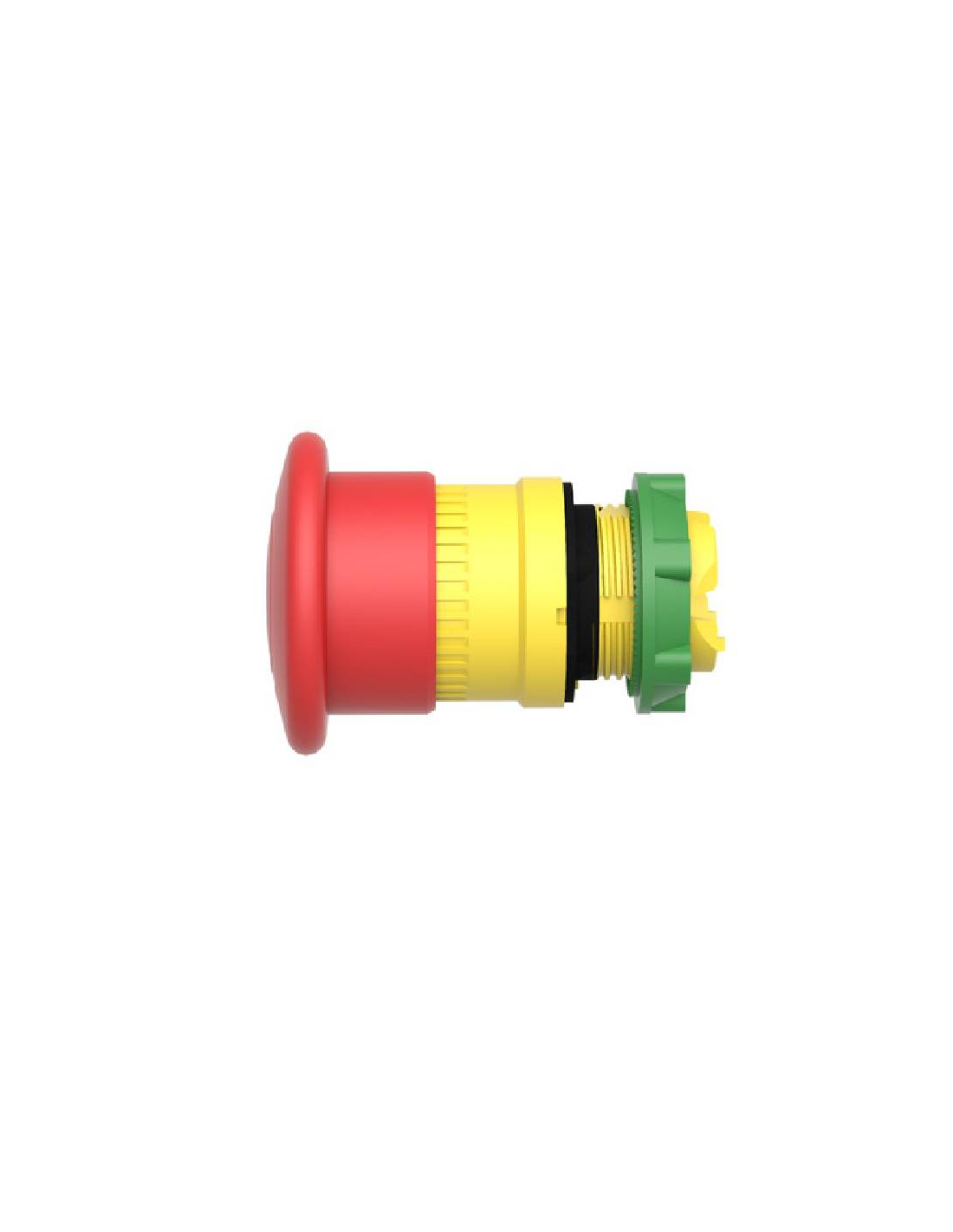

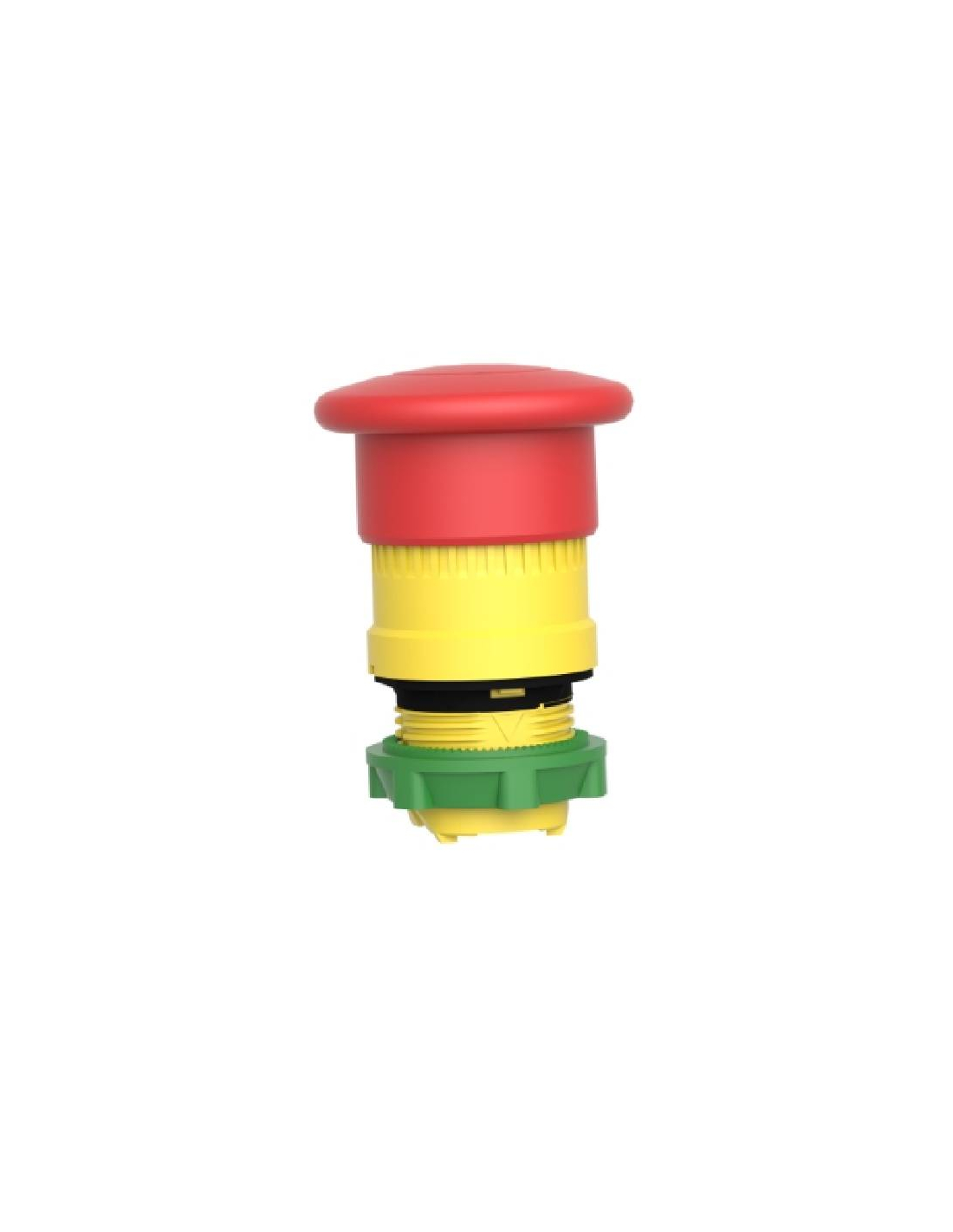

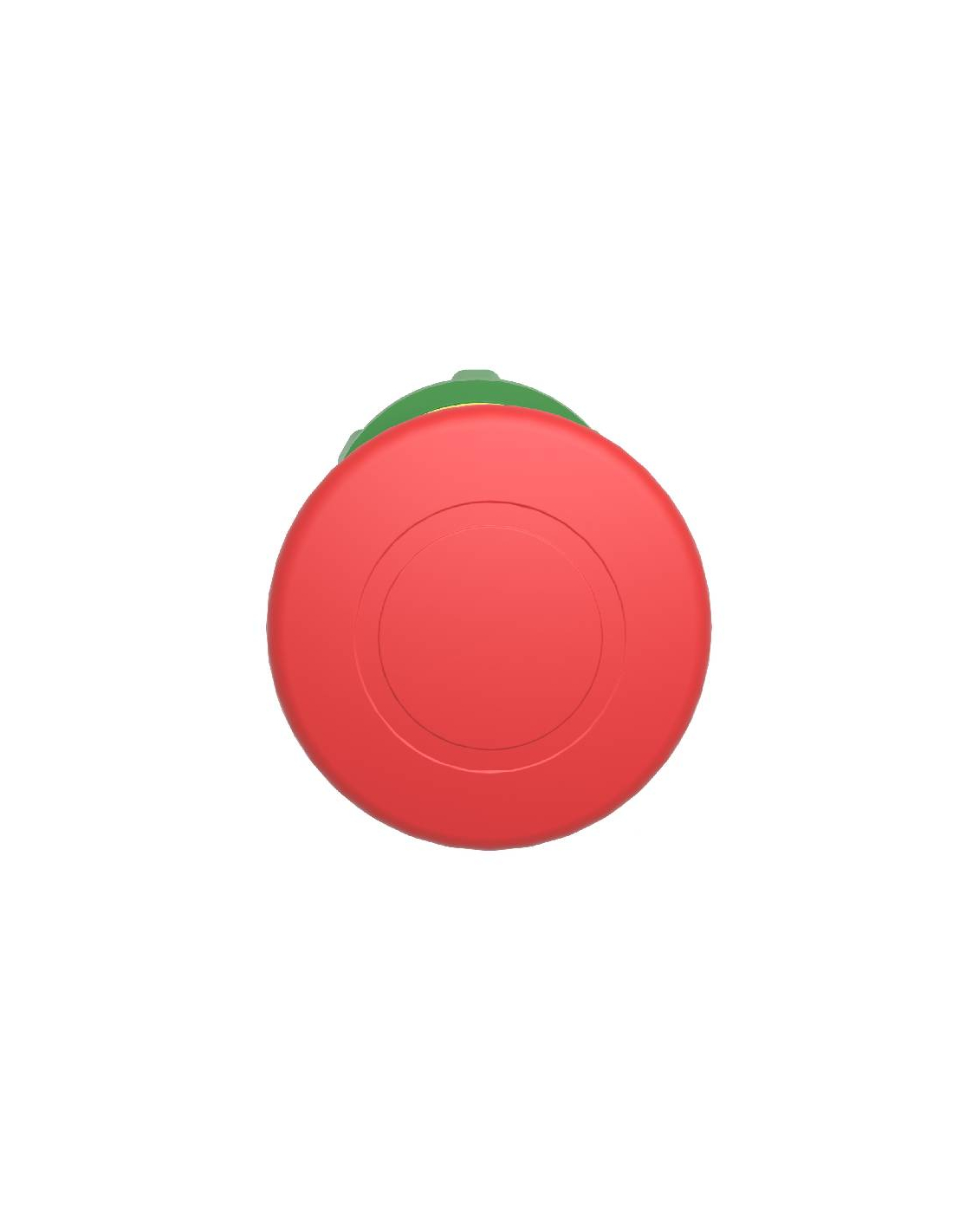

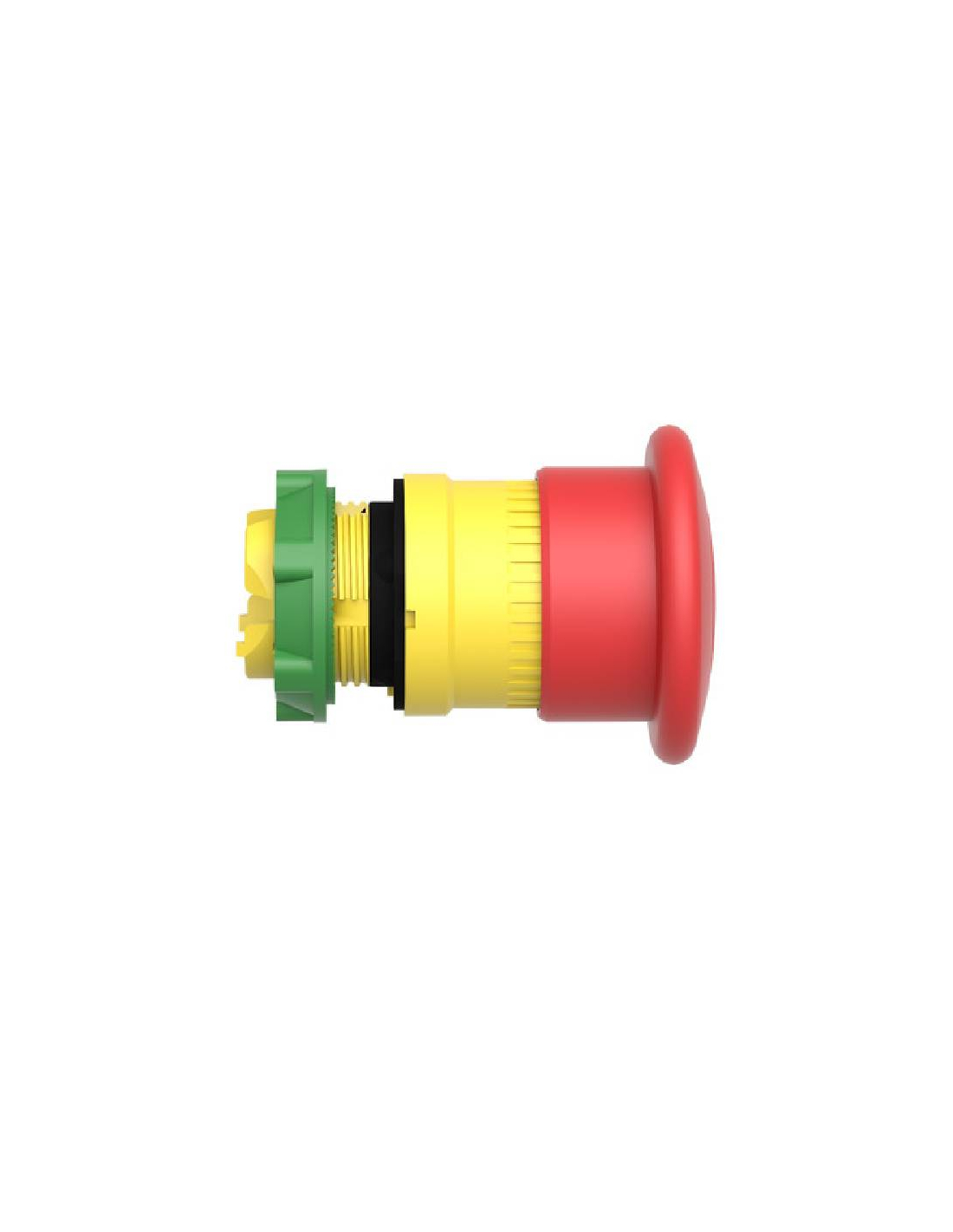

40 mm diameter red plastic mushroom emergency stop head with push-pull mechanism, interlocking mechanical pull-to-unlock. Easily installed in standard 22 mm diameter die-cuts, it features an ergonomic interface for machine and process control.

Its design is highly resistant to impact, dust, water and vibration thanks to its IP66 degree of protection, making it suitable for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation. It is clearly distinguishable from a distance thanks to its light color and striking 40 mm mushroom shape.


Conforms to EN/IEC 60204-1, 60364-5-53, EN/ISO 13850 and the Machinery Directive 2006/42/EC.

No contacts are included in the scope of delivery, these must be purchased separately.

Characteristics:

• Manufacturer: SCHNEIDER
• Part number: ZB5AT84
• HARMONY XB5 SERIES
• Operator profile: Red Mushroom 40 mm, without marking
• Operator type: Trigger action and mechanical interlocking
• Reset: Push-pull
• Mounting diameter: 22mm
• Mechanical durability: 300000 cycles
• Operating temperature: -40...70C
• Overvoltage category: Class II according to IEC 60536
• IP degree of protection: IP66 according to IEC 60529
• IK degree of protection: IK03 according to IEC 50102

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
