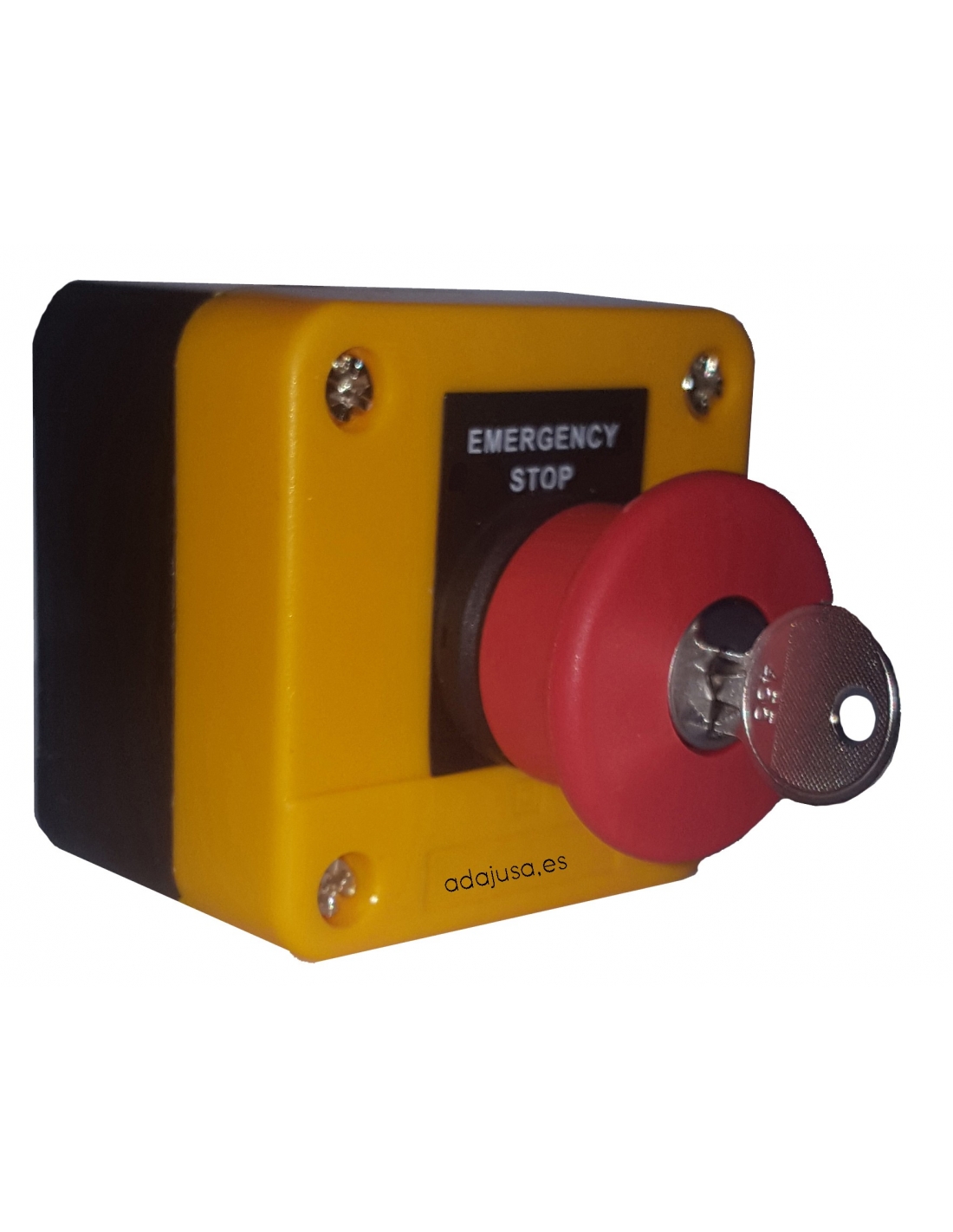

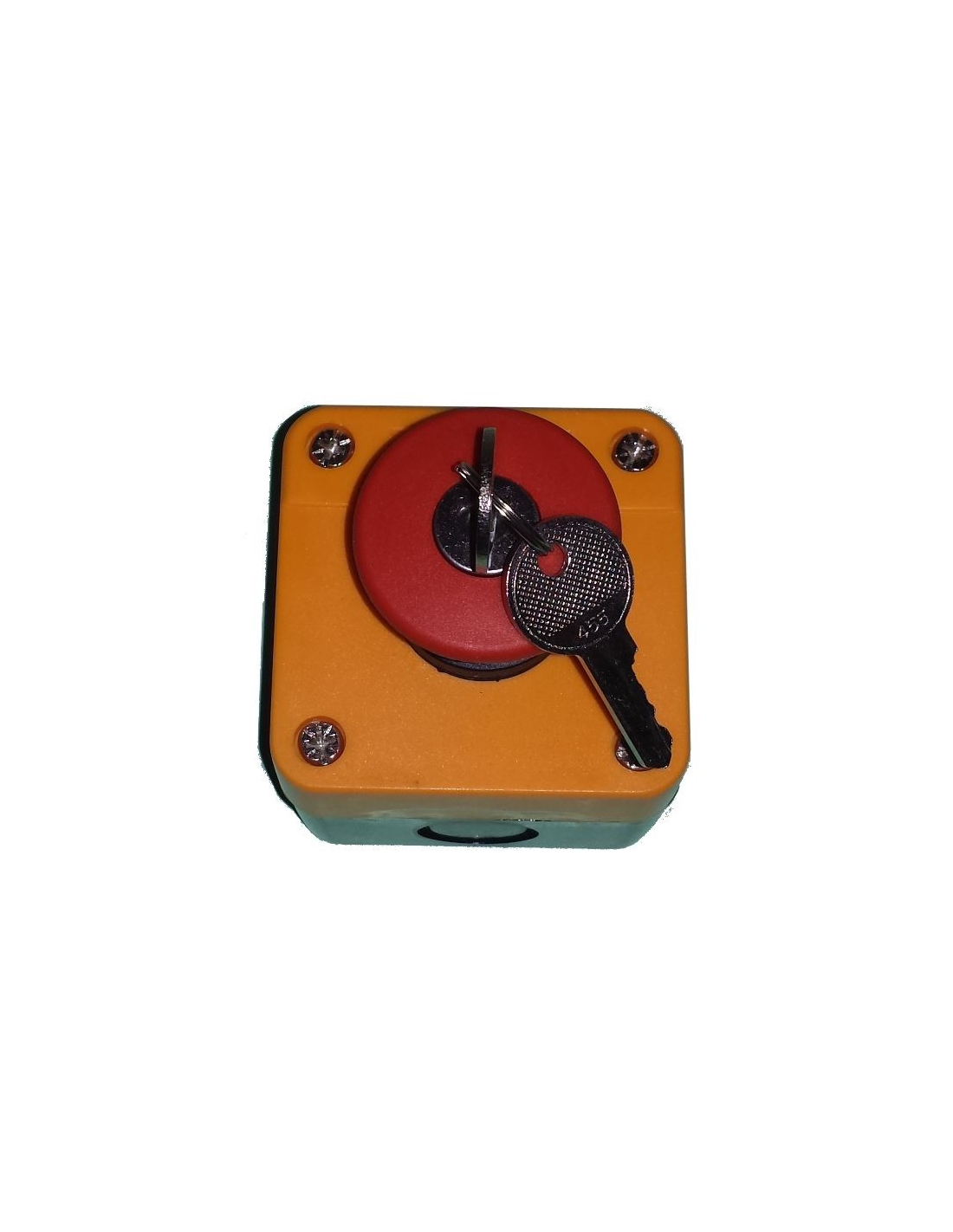

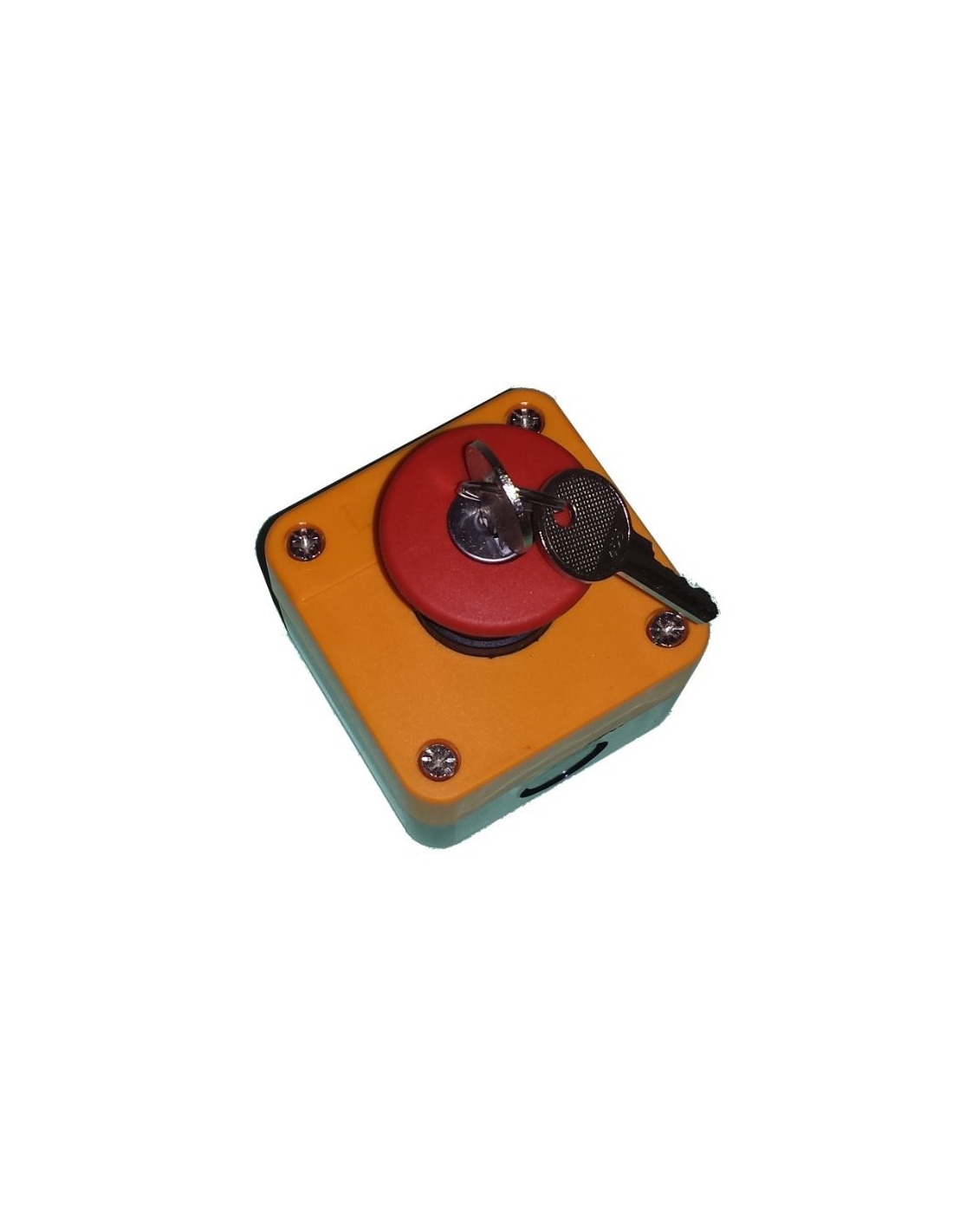

Full stop mushroom-head push box with key

€7.90 Tax included

€6.53 tax excl.

Box with push button (mushroom-head) of complete stop, unlocking by key.

The supply includes the complete push button, box, a closed contact and key, all assembled.

Reference: XAL-B184H29

Esquema eléctrico pulsador de emergencia


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with pushbutton (mushroom-head) stop diameter 40mm with key interlock, 1 closed contact (NC). Yellow box, turn to unclave.

The supply includes the full pushbutton, box and a closed contact, all mounted.

The box supports mounting additional contact, open or closed. The maximum number of contacts per item is 2. Additional contacts must be "pushbutton box contact".

The dimensions of the case are: 68x68x51mm.

Features:

  • Manufacturer/Supplier: Denor
  • Reference: XAL-B184H29
  • Screen diameter: 40mm.
  • Unlock mode: by key.
  • Box in yellow plastic.
  • Box height: 50mm.
  • Contact: 1 NC.
  • Hole diameter: 22mm.
  • Ith nomial working intensity: 10 A.
  • Working intensity at 220 Vac: 4.5 A.
  • Maximum working voltage: 415 V.
  • Contact resistance: 50 m.
  • Degree of protection: IP40.
  • Equivalent reference to: XAL-J184; XB2-J184.

Dimensiones cajas botoneras montadas 1 elemento XAL
