Solenoid valve 3/8 5 ways monostable coil 230Vca Mindman S.300 - ADAJUSA

Solenoid valve 3/8 5-way monostable coil 230Vca - Mindman S.300

Name: Solenoid valve 3/8 5-way monostable coil 230Vca - Mindman S.300
Brand: Mindman
SKU: MVSC3004E11
Price: 43.6689 EUR
Availability: PreOrder

Delivery in 3 days

€43.67 Tax included

€36.09 tax excl.

No queries yet, leave the first!

Privacy

Shipments

Returns

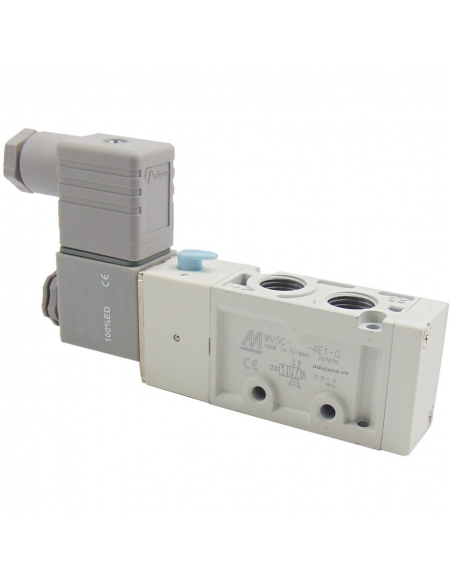

Pneumatic solenoid valve of 3/8 5 ways monostable, with coil of 230Vac. For general and industrial applications.

The supply of the solenoid valve includes:

Solenoid valve 3/8-5/2.
1 Coil 230Vac
1 x 22mm connector

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: 281MVSC3004E11
Thread type: G 3/8"
Coil voltage: 230Vac.
Coil power: 2.5W.
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 8 bar.
Test pressure: 1 MPa
Effective selection: 35mm²
Working temperature: -5ºC to 50ºC.
Weight: 293 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet MVSC300

Download (912.26KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve 3/8 5 ways monostable coil 24Vdc - Mindman S.300

Mindman

MVSC3004E12

€43.67 (€36.09 tax excl.)

Pneumatic solenoid valve of 3/8" 5 ways monostable, with connector and operating voltage of 24Vdc. Reference: 281MVSC3004E12 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 way monostable coil 110Vac Mindman S.300 - ADAJUSA

Delivery in 3 days

Solenoid valves 3/8

Solenoid valve 3/8 5 way monostable coil 110Vac - Mindman S.300

Mindman

MVSC3004E13

€43.64 (€36.07 tax excl.)

Pneumatic solenoid valve of 3/8" 5 ways monostable, with connector and operating voltage of 110Vac. Reference: 281MVSC3004E13 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 5 way monostable coil 24Vac - Mindman S.300

Mindman

MVSC3004E14

€43.64 (€36.07 tax excl.)

3/8" 5-way monostable pneumatic solenoid valve, with connector and operating voltage of 24Vac. Reference: 281MVSC3004E14 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 3/8 5/3 exhaust centers 24 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 exhaust centers 24 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted exhaust centers 24 Vac - Metal Work

Metal Work

PK-3853ACE24A

€136.48 (€112.79 tax excl.)

3/8" 5-way, 3-position assisted solenoid valves, exhaust centers, metal body, with 24Vac connector and coil. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 tracks assisted monostable - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5 ways assisted monostable without coil - Metal Work

Metal Work

7040021500

€97.33 (€80.44 tax excl.)

3/8" 5-way monestable pneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021500 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Multiple base for 3/8 5-way valves Mindman 300 series - ADAJUSA

Multiple base for 3/8 5-way valves Mindman 300 series - ADAJUSA 2

Solenoid valves 3/8

Multiple base plate for 3/8 5-way valves S.300 - Mindman

Mindman

MVSC3005Bxx

€16.64 (€13.75 tax excl.)

Multiple base plate for 5-way 3/8" size valves and solenoid valves, MVSC300 seriesReference: 281MVSC3005BxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 exhaust centers 24 Vdc - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 exhaust centers 24 Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted exhaust centers 24 Vdc - Metal Work

Metal Work

PK-3853ACE24C

€128.04 (€105.82 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions assisted, exhaust centers, metal body, with connector and coil of 24Vdc. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5-way monostable 230Vac 3.5VA Metal Work

Metal Work

PK-385M230

€107.15 (€88.55 tax excl.)

3/8" 5-way pneumatic electrovalve, closed (NC), for industrial and general use applications. Coil for electrovalve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. 22mm connector Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 5/2 bistable - Aignep

Aignep

01VS150004

€72.94 (€60.28 tax excl.)

3/8 5- way bistable Solenoid valve (coils not included), with G3/8" threads, anodized aluminum body, NBR seals. Reference: 01VS150004 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted pressure centers - Metal Work

Metal Work

7040022600

€133.67 (€110.47 tax excl.)

Solenoid valves of 1/8" of 5 ways and 3 positions assisted,centers in pressure, metal body, for pneumatic applications of industrial or general use. Reference: 7040022600 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 closed centers - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5/3 monostable closed centers - Metal Work

Metal Work

7040022100

€133.67 (€110.47 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions, closed centers, metal body, for pneumatic applications of industrial or general use. Reference: 7040022100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

solenoid valve 3/8 5 ways assisted bistable with coils - Metal Work - ADAJUSA

solenoid valve 3/8 5 ways assisted bistable with coils - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5 biset assisted tracks 230Vac - Metal Work

Metal Work

PK-385AB230

€127.93 (€105.73 tax excl.)

3/8" 5-way bile valve for industrial and general applications. With 230Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 3-way monostable NC - Metal Work

Metal Work

7040020200

€83.43 (€68.95 tax excl.)

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040020200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 pressure centers 24 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 24 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted pressure centers 24 Vac - Metal Work

Metal Work

PK-3853ACP24A

€134.08 (€110.81 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, pressure centers, metal body, with connector and coil of 24Vac. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vcc 5W T22 diameter 8 - Metal Work

Metal Work

W0215000001

€8.43 (€6.97 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 5W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 assisted closed centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 assisted closed centers 110 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted closed centers 110 Vac - Metal Work

Metal Work

PK-3853ACC110

€153.29 (€126.69 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, closed centers, metal body, with connectors and coil of 110 Vac. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way bistable - Metal Work - ADAJUSA

electrovalve 3/8 5-way bistable - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5 bistable vias 24Vac 3.5VA Metal Work

Metal Work

PK-385BI24A

€127.93 (€105.73 tax excl.)

3/8" 5-way bile pneumatic solenoid valve, closed (NC), for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm. - 22mm connector Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

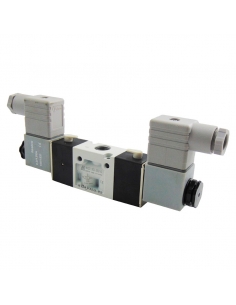

Solenoid valve 3/8 3 ways bistable 230Vca Mindman S.300 - ADAJUSA
