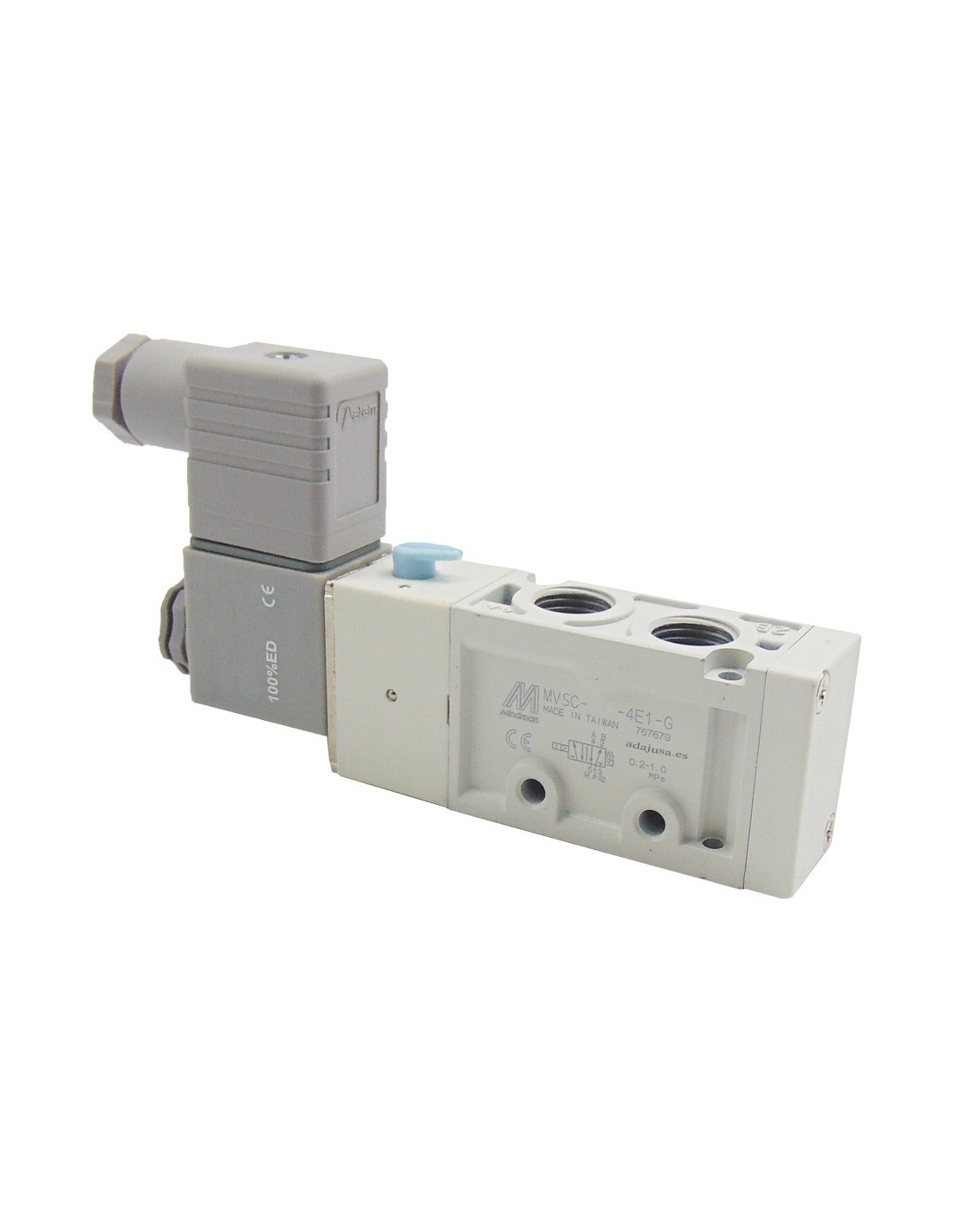

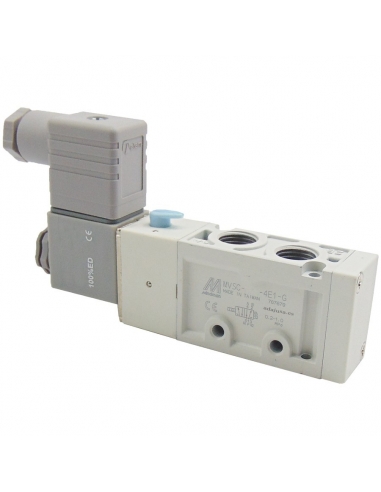

Solenoid valve 3/8 5 ways monostable coil 24Vdc - Mindman S.300

Delivery in 3 days

€46.46 Tax included

38.4 tax excl.

MVSC3004E12

Pneumatic solenoid valve of 3/8" 5 ways monostable, with connector and operating voltage of 24Vdc.

Reference: 281MVSC3004E12

Esquema neumatico electrovalvula 5 vias monoestable

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic solenoid valve of 3/8 5 ways monostable, with coil of 230Vac. For general and industrial applications.

The supply of the solenoid valve includes:

Solenoid valve 3/8-5/2.
1 Coil 24Vdc
1 x 22mm connector

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: 281MVSC3004E12
Thread type: G 3/8"
Coil voltage: 24Vdc.
Coil power: 4 VA.
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 8 bar.
Test pressure: 1 MPa
Effective selection: 35mm²
Working temperature: -5ºC to 50ºC.
Weight: 293 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet MVSC300

Download (912.26KB)
