Pack

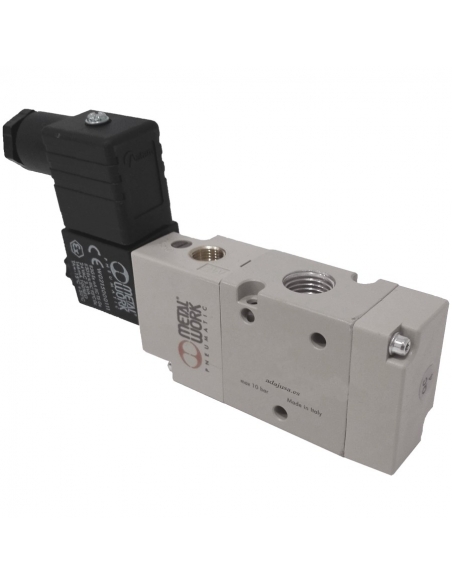

Solenoid valve 3/8 3-way assisted monostable NO with coil - Metal Work

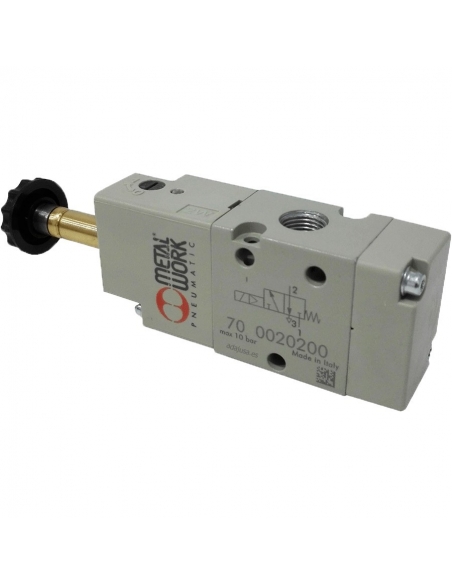

Solenoid valve 3/8 3 ways monostable NO - Metal Work - ADAJUSA

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Solenoid valve 3/8 3 tracks assisted monostable NO 24 Vdc - Metal Work

Name: Solenoid valve 3/8 3 tracks assisted monostable NO 24 Vdc - Metal Work
Brand: Metal Work
SKU: PK-383ANO24C
Price: 93.2426 EUR
Availability: PreOrder

€93.24 Tax included

€77.06 tax excl.

Pneumatic solenoid valve of 3/8" 3/2 tracks assisted monestable, (NO), for industrial applications and general use. Connector with coil 24 Vdc

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.38

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€8.43

Solenoid valve 3/8 3 ways monostable assisted NO - Metal Work

€83.43

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted monostable. For general and industrial applications. The solenoid valve is normally open (NO), without tension in the coil, the fluid or air will be passed through the solenoid valve, when the coil is put into tension the passage of the fluid or air will be interrupted.

The supply includes:

Electorvalve 3/8 3/2 assisted monostable NO
Coil 24 Vdc - 2 W
T22 connector

Features:

Provider: Metal Work
Solenoid valve reference: 7040020600- SOV C3 SES NO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Coil voltage: 24 Vdc
Power: 2 W
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
