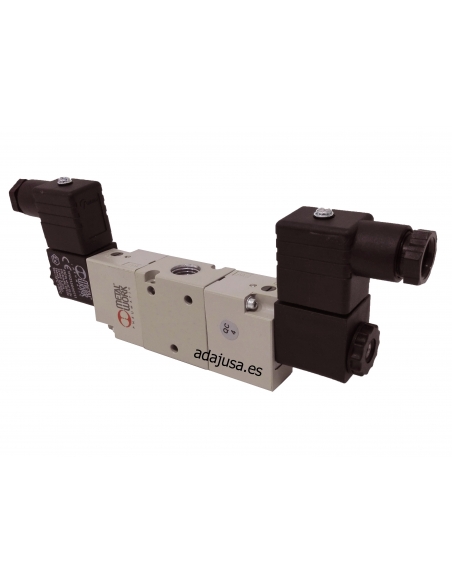

Double solenoid valve 1/8 3/2 ways with coils - Metal Work - ADAJUSA

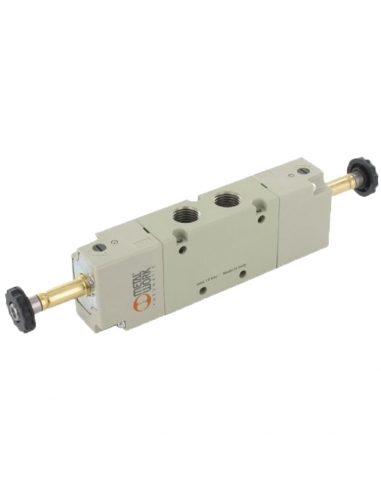

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/8 3/2 ways with coils - Metal Work - ADAJUSA
Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22

Double solenoid valve 1/8 3/2 ways NC 24 Vac - Metal Work

€111.73 Tax included

92.34 tax excl.

PK-ED183224A

Solenoid valve 1/8 3/2 way double NC output (normally closed). 24 Vac coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Doublepneumatic solenoid valve 1/8" 3/2 way NC. The solenoid valve is normally closed (NC), i.e. without voltage on the coil, the inlet is not connected to the outlet, i.e. there is no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, there is air circulation between the inlet and the outlet of the solenoid valve .

Coils solenoid valve 24Vac 3,5VA and connectors 22 mm.



Delivery includes:
  • Double solenoid valve 1/8" 3/2 NC
  • 2 Coils 24 Vac - 3,5VA
  • 2 Plastic connectors size 22



Technical characteristics:

  • Manufacturer Metal Work
  • Product reference: solenoid valve : SOV 28 SOS NC Code: 7010023100
  • Type of threads: G 1/8"
  • Bistable bar: 2.5 ÷ 10
  • Minimum assistance pressure bar: 2.5
  • Working temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min - bar: 121,43
  • Critical ratio b bar/bar: 0,32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • TRA/TRR monostable at 6 bar ms: 15/35
  • TRA/TRR bistable at 6 bar ms: 20/20
  • Tension tolerances %: -10 ÷ +15
  • Class of isolation: F 155
  • Rated voltage: 24Vac.
  • Rated power: 3,5VA.


Equipment for professional use, install in compliance with the regulations in force at the place of installation.
