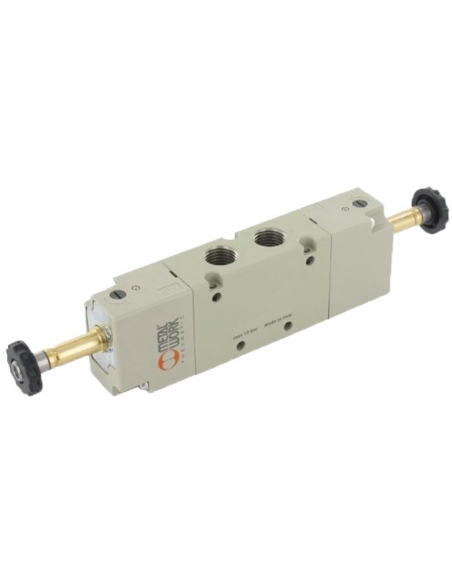

Double solenoid valve 1/8 3/2 ways 24Vca NO - Metal Work

€111.73 Tax included

92.34 tax excl.

PK-ED183224AO

Solenoid valve 1/8 3/2 way double output NO (normally open). With 24 Vac connectors and coils

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.43

2x

Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€8.77

1x

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Double solenoid valve 1/8 3/2 ways NO - Metal Work

€91.33

No queries yet, leave the first!

Description
Frequently questions

Double pneumatic solenoid valve 1/8" 3/2 way NO. The solenoid valve is normally open, i.e. without voltage on the coil, the fluid or air will pass through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

With plastic connectors size 22 and coils 24 Vac 3,5 VA

The supply includes:

Double solenoid valve 1/8" 3/2 NO
2 Coils 24 Vac 3,5VA
2 Connectors

Technical characteristics:

Manufacturer Metal Work
Part number: Metal Work: SOV 28 SOS NO Code: 7010023200
Type of threads: G 1/8"
Bistable bar: 2.5 ÷ 10
Minimum assistance pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min - bar: 121,43
Critical ratio b bar/bar: 0,32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
TRA/TRR monostable at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Class of isolation: F 155
Rated voltage: 24Vac.
Rated power: 3,5VA.

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
