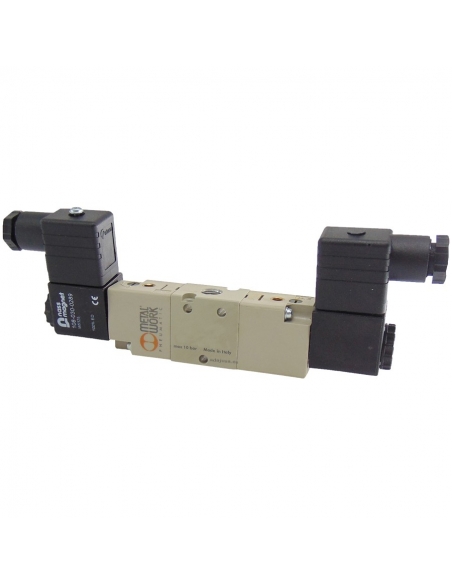

Solenoid valve 1/4 5/3 assisted pressure centers 24Vca - Metal Work

Solenoid valves of 1/4" of 5 ways and 3 positions, assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The supply includes:

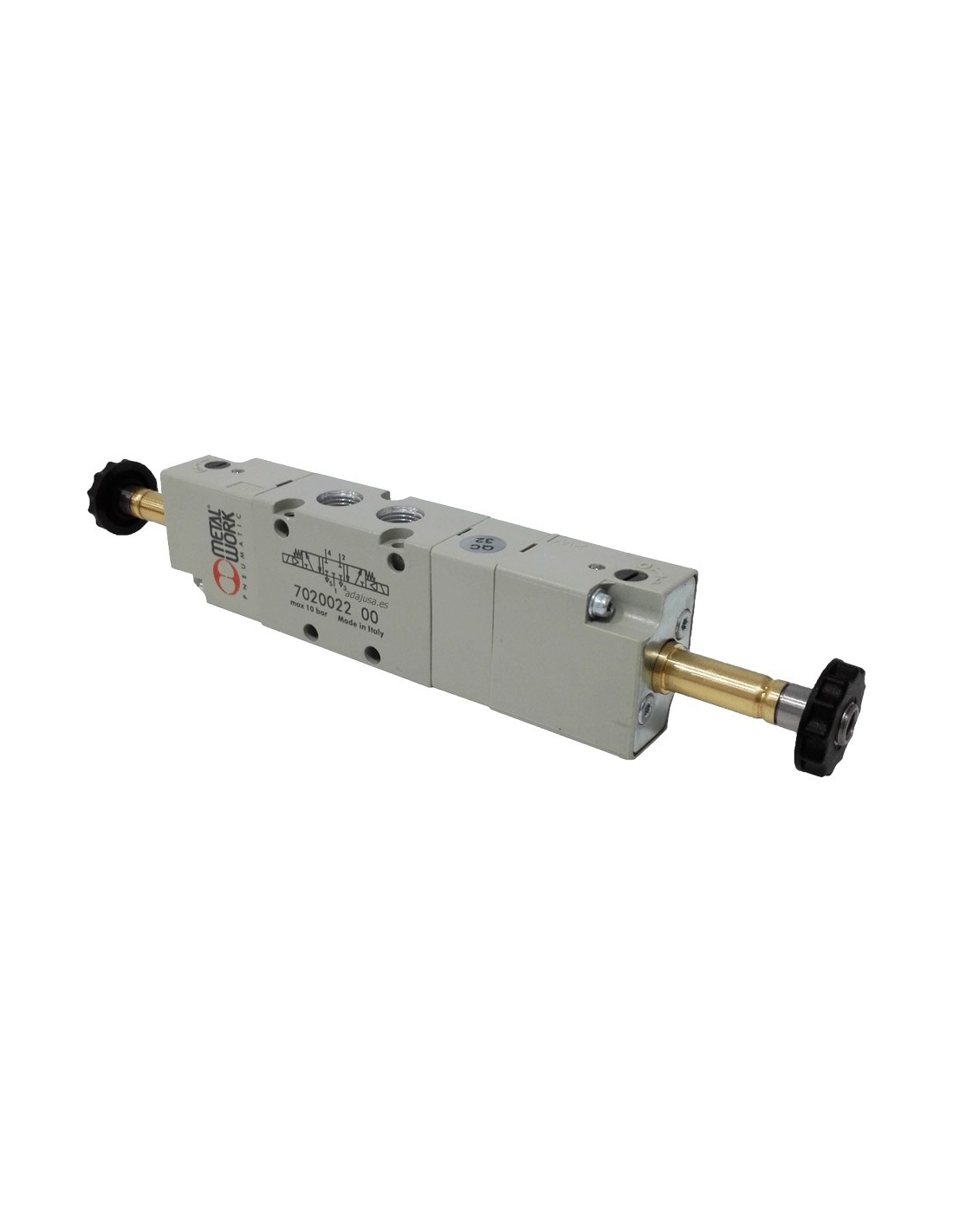

• Solenoid valve 1/4 5/3 assisted pressure center

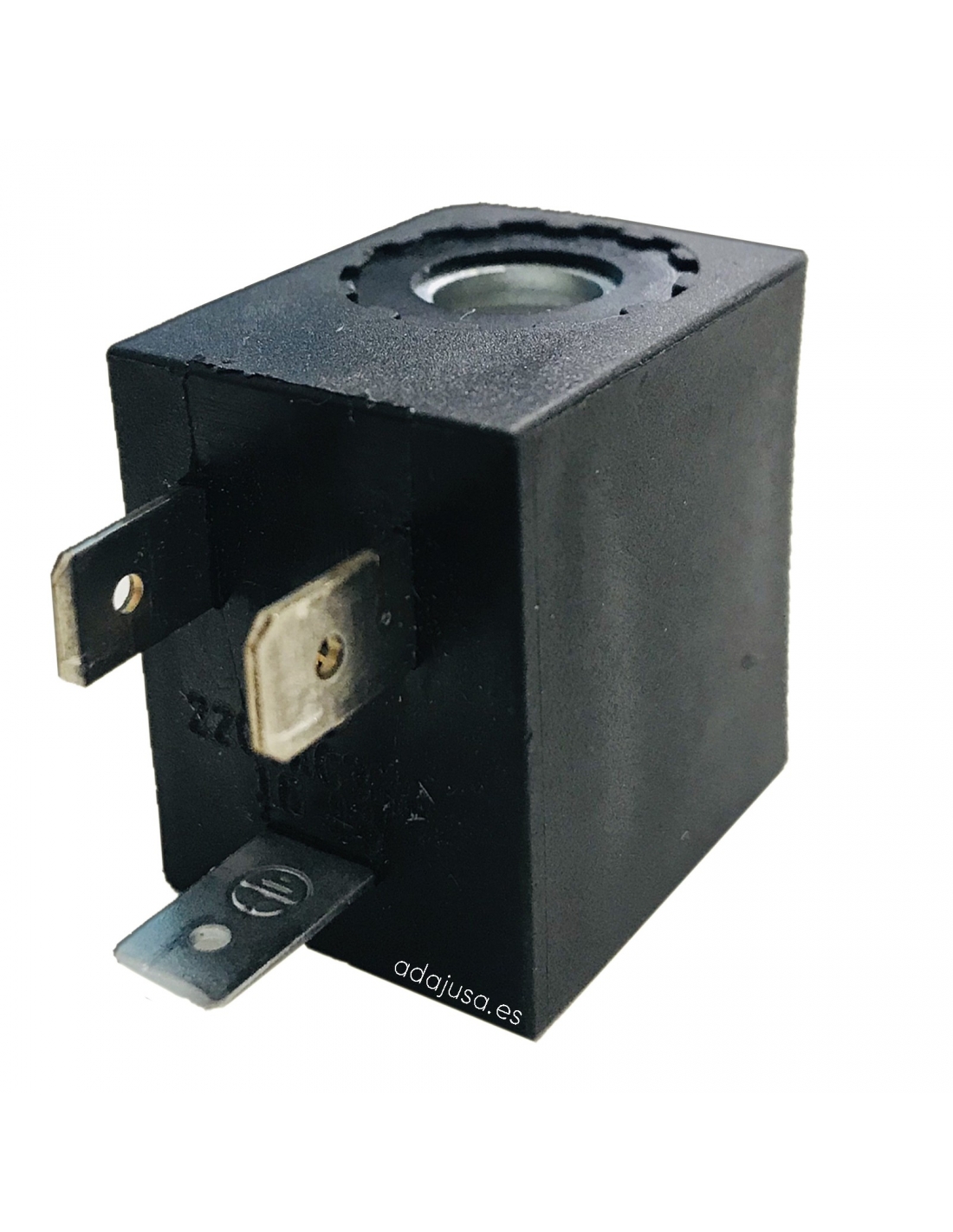

• 2 coils 24Vca 3.5 VA

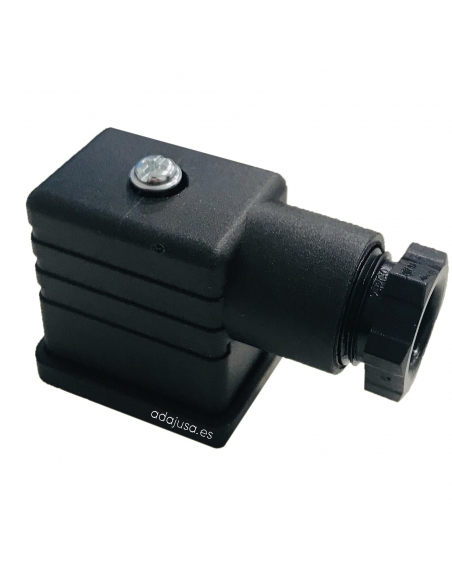

• 2 T22 connectors

Characteristics:

• Provider: Metal Work
• Solenoid valve reference: 7020022600 SOV 36 SES PC
• Operating pressure: 1 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 7.5 mm
• Conductance C Nl/min · bar: 264.26
• Critical ratio b bar/bar: 0.27
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
• Flow rate at 6 bar ΔP 1 bar Nl/min:1100
• Monostable TRA/TRR at 6 bar ms: 19/45
• Bistable TRA/TRR at 6 bar ms: 21/21
• Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
• Voltage tolerances %: -10 ÷ +15
• Voltage: 24 Vac
• Power: 3.5 VA

Material for professional use, install in compliance with the regulations in force at the place of installation.
