Solenoid valve coil 24Vcc 5W T22 diameter 8 -...
Solenoid valve coil 24Vcc 5W T22 diameter 8 - Metal Work

Solenoid valve coil 24Vcc 5W T22 diameter 8 - Metal Work

€8.43 Tax included

€6.97 tax excl.

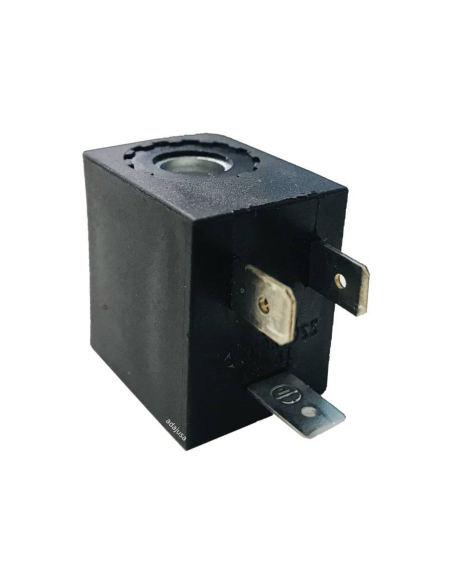

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 5W, for cores of Ø8mm.

Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.
Reference: W0215000001

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


22mm size coil for 24Vdc voltage with 5W power, suitable for solenoid valves with an actuator core diameter of 8mm.

Suitable for solenoid valves manufactured by:

  • Metal Work.
  • Airon.

specifications:

  • Manufacturer: Metal Work.
  • Reference: W0215000001
  • Rated voltage: 24Vdc.
  • Voltage tolerance: -10% +15%.
  • Nominal power: 5W.
  • Starting power: 5W.
  • Core diameter: 8.2mm (8mm).
  • Insulation type: F155.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.
  • ATEX 94/9/EC Regulations, Group II category 3GD.
  • Do not continuously expose atmospheric agents.

Dimensiones bobinas neumaticas

Material for professional use, install in compliance with the regulations in force at the place of installation.
