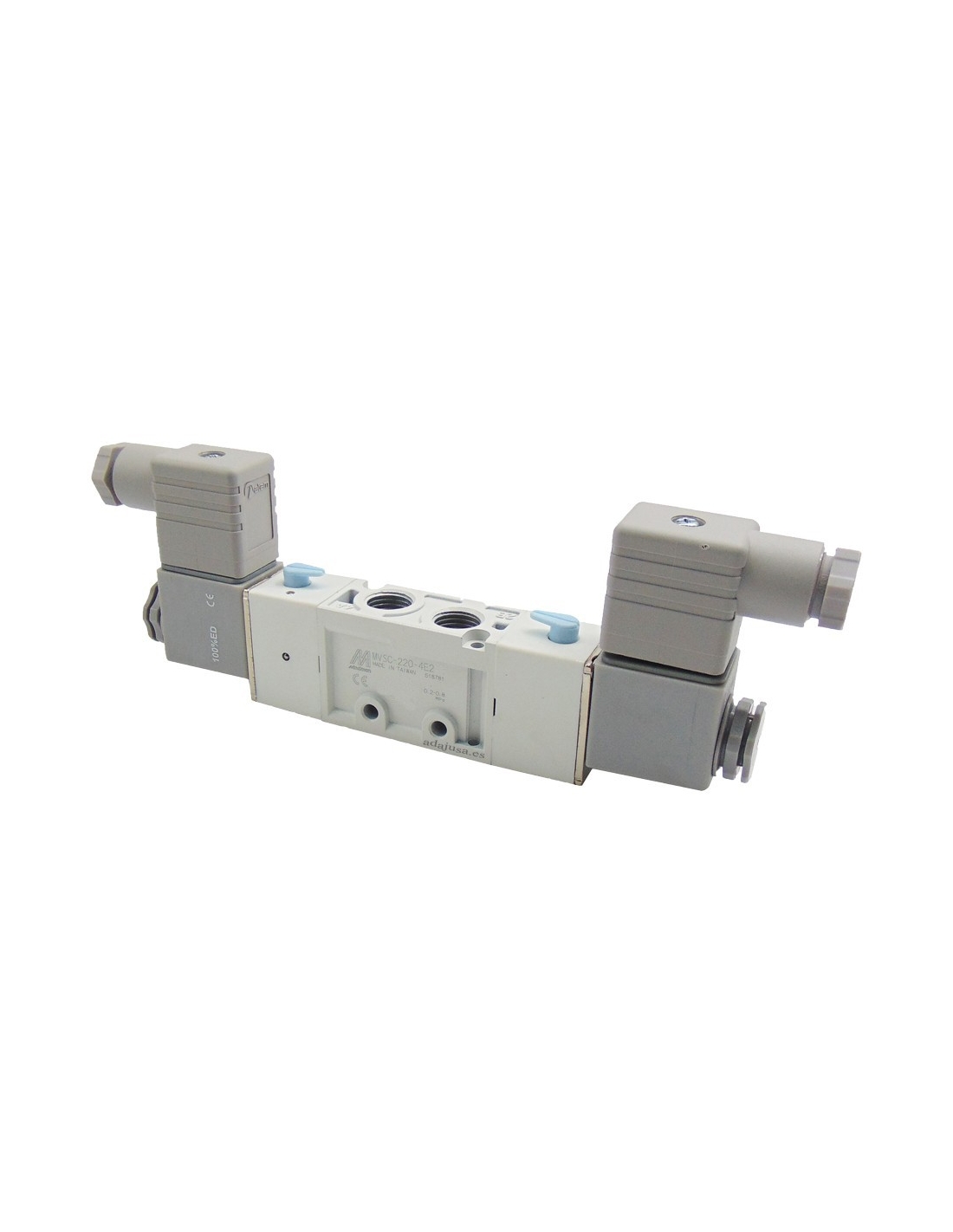

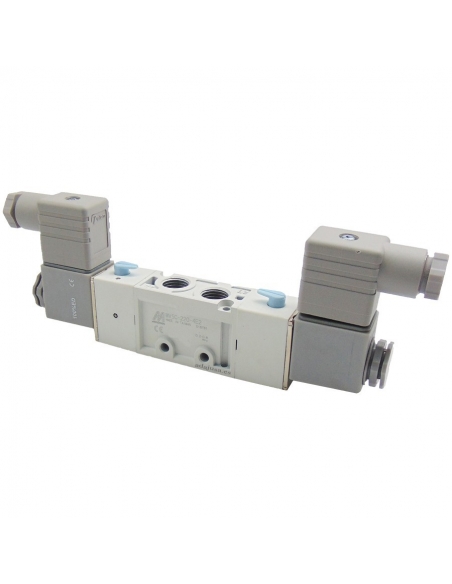

Solenoid valve 1/4 5 way 3 positions exhaust centers 24Vdc - Mindman S.220

Pneumatic solenoid valve of 1/4-5/3, 5-way 3 positions, exhaust centers (open centers), with coils at 24Vdc, for the control of double-effect cylinders.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

The supply of the solenoid valve includes:

• Solenoid valve 1/4-5/3 centers in exhaust.
• 2 Coils 24Vdc.
• 2 Connector 22mm.

Specifications:

• Solenoid valve manufacturer: Mindman.
• Reference: MVSC-220-4E2R 1/4 24Vdc.
• Configuration: 5 ways, 3 positions centers in escape.
• Thread type: G 1/4" (Threaded exhausts G 1/8").
• Coil voltage: 24Vdc.
• Coil power: 2.5W.
• Fluid type: Pressurized air, with or without lubrication.
• Solenoid valve working pressure: 2 to 8 bar.
• Minimum working pressure: 2 bar.
• maximum pressure: 10 bar.
• Working temperature: -10ºC to 60ºC.
• Effective surface: 18mm².
• Flow: 799 Nl/min.
• Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
