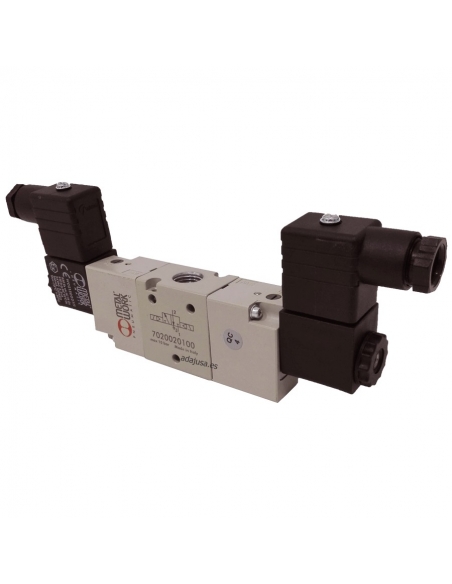

electrovalve 1/4 3-way bistable 24Vac 3,5VA - Metal Work - ADAJUSA

Solenoid valve 1/4 3 vias bistable 24Vac 3.5VA - Metal Work

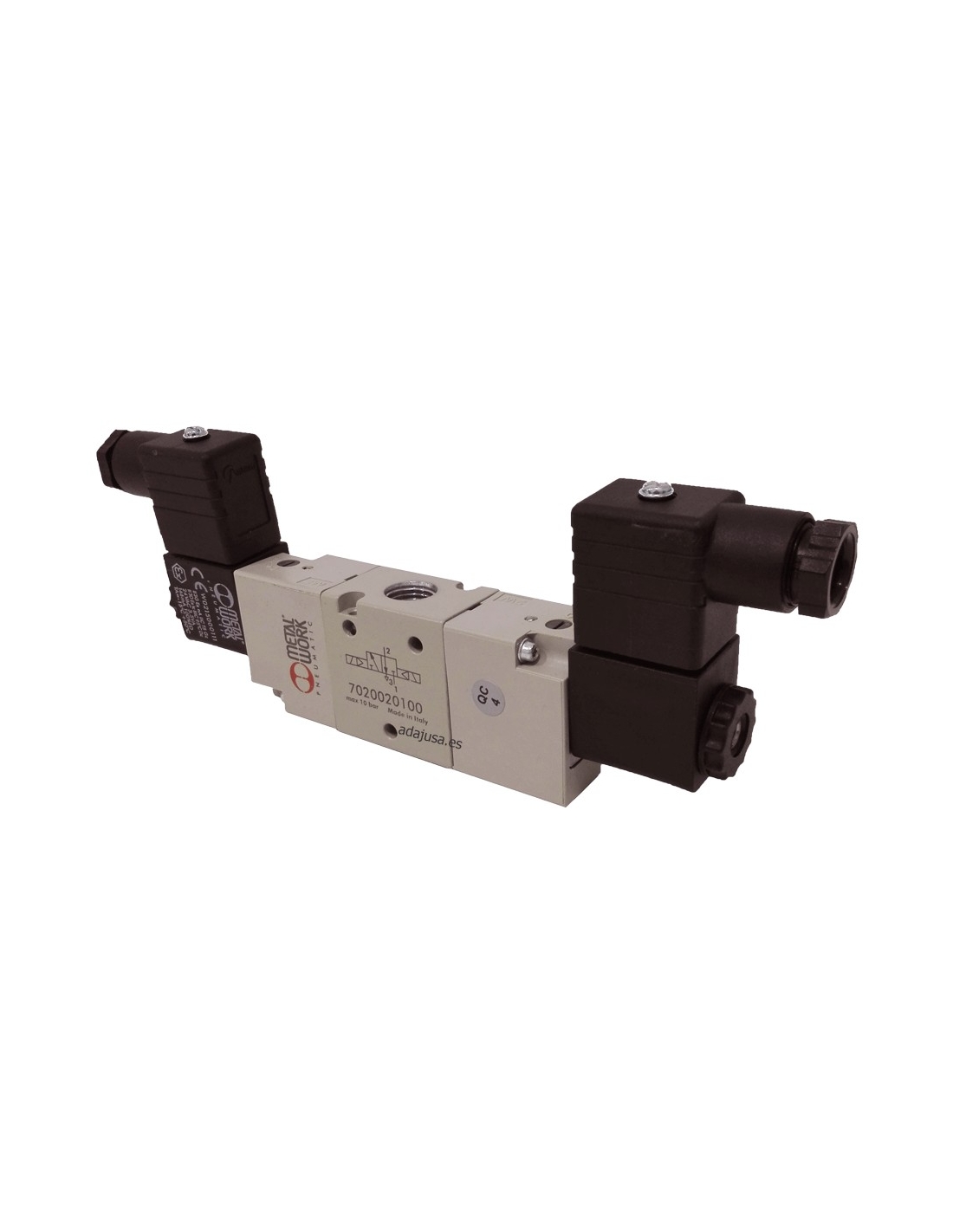

Name: Solenoid valve 1/4 3 vias bistable 24Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-E143BI24A
Price: 101.4706 EUR
Availability: InStock

€101.47 Tax included

€83.86 tax excl.

1/4" 3-way bistable pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.38

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€8.43

Electrovalve 1/4 3-way bistable - Metal Work - ADAJUSA

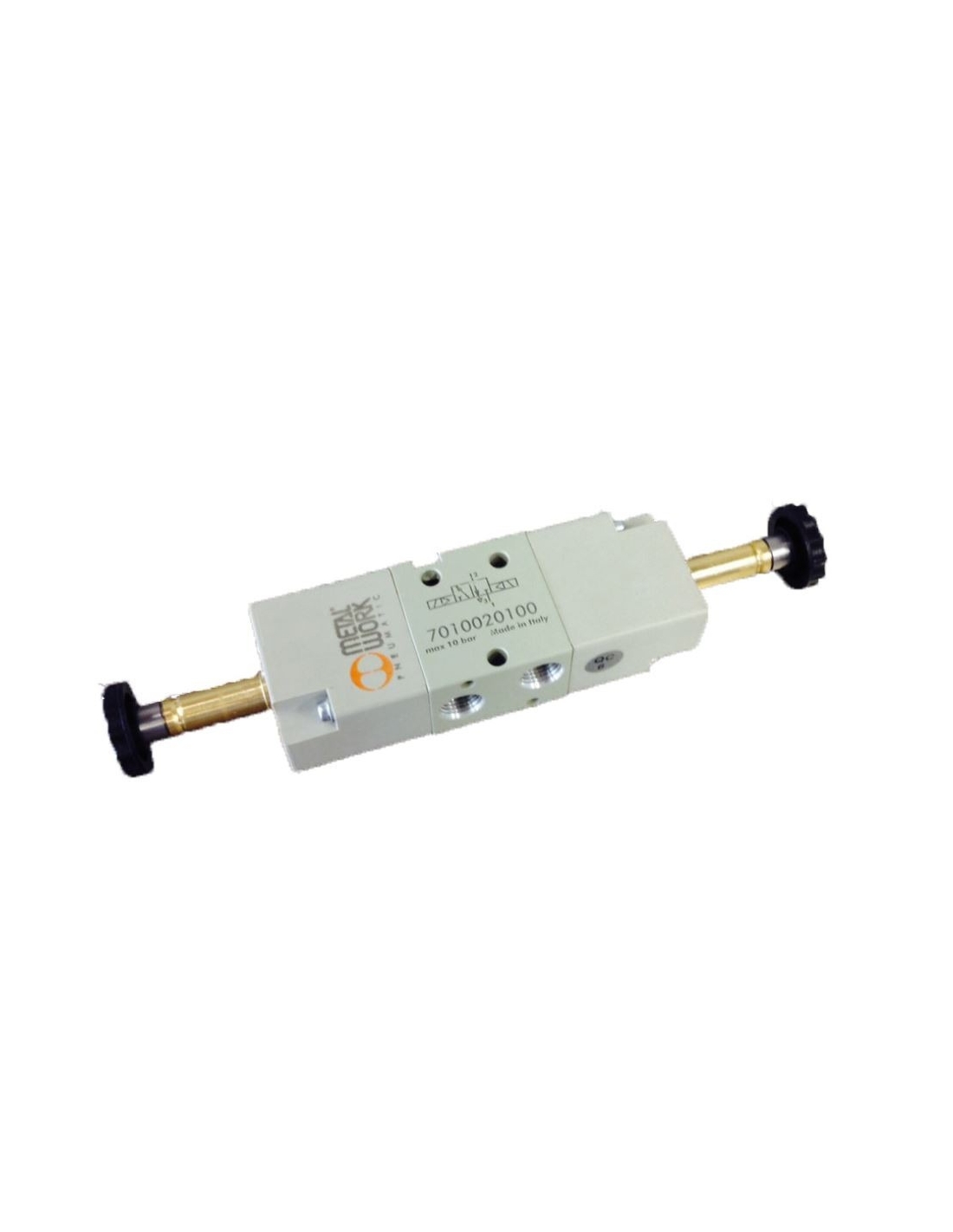

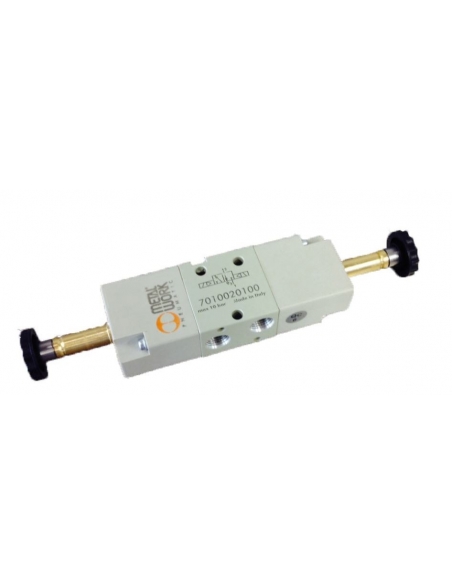

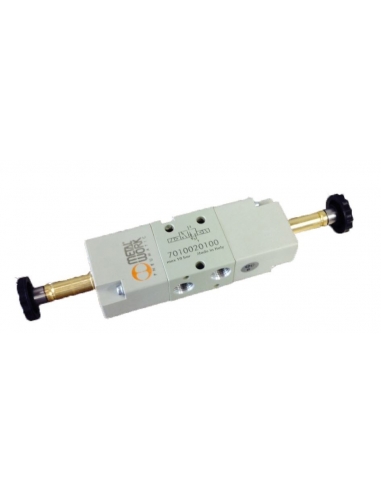

Solenoid valve 1/4 3 ways bistable without coil - Metal Work

€81.84

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/4 3 bistable roads, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.

Made of aluminum, compact size and high airflow, short response time.

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.

22mm plastic conetor

Supply includes:

1 1/4 3-way bistable solenoid valve
2 Coil 24Vac 2.5W
2 Connector 22 mm

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: 7020020100 - SOV 33 SOB OO
Type: 1/4-5/2 Biestable
Thread: G 1/4"
Voltage: 24Vac
Consumption: 3.5VA
Operating pressure: 2.5 bar÷10 bar
Minimum working pressure: 2.5 bar
Working temperature: -10oC ÷ +60oC
Nominal diameter: 5mm.
Capacity at 6 bar P 0.5 bar: 400 Nl/min
Capacity at 6 bar P 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.152kg.
Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
