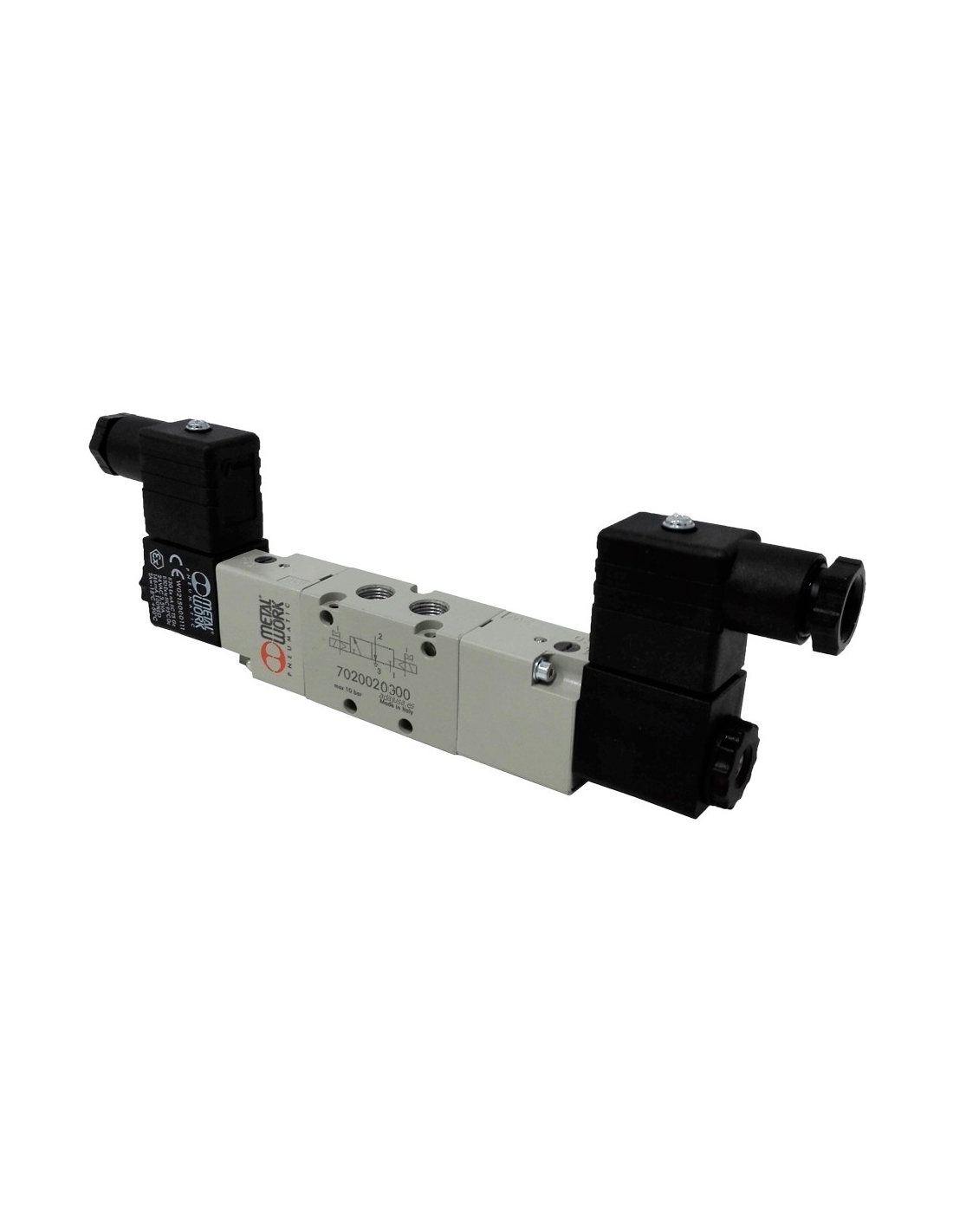

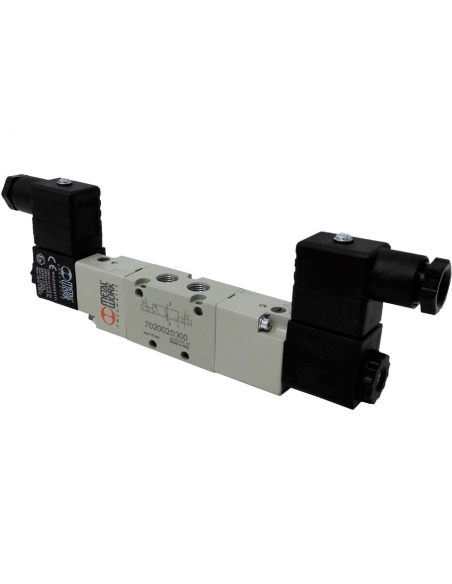

Solenoid valve 1/4 3 ways bistable assisted 24Vdc 2W - Metal Work

€109.13 Tax included

90.19 tax excl.

PK-E143BIA24C

1/4" 3-way assisted bile valve for industrial and general applications.

Coil for solenoid valve size 22mm, voltage 24Vdc, with a consumption of 2 W, for cores of Ø8mm. 22mm connector

esquema neumatico electrovalvula 3 vias biestables asistidas

Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

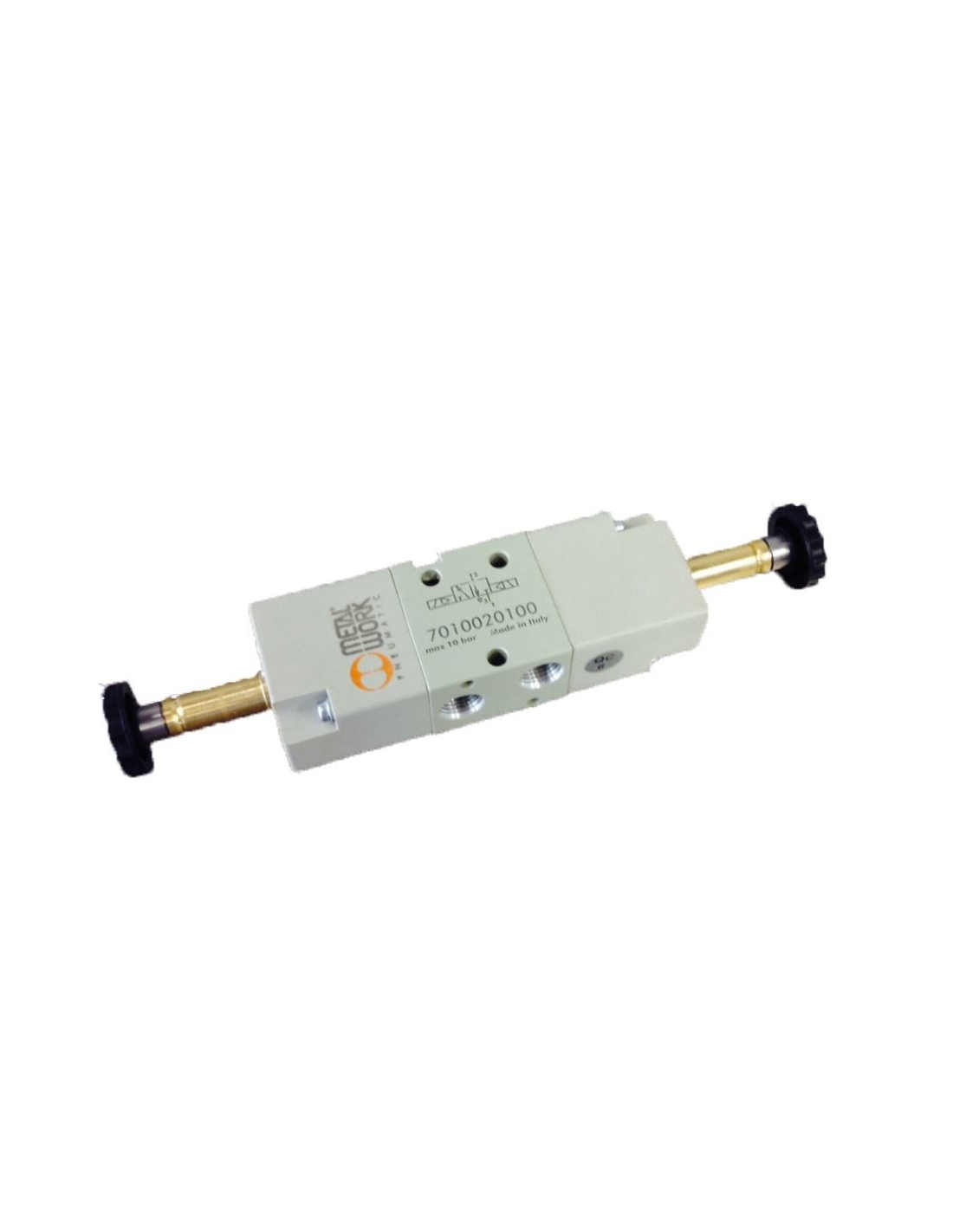

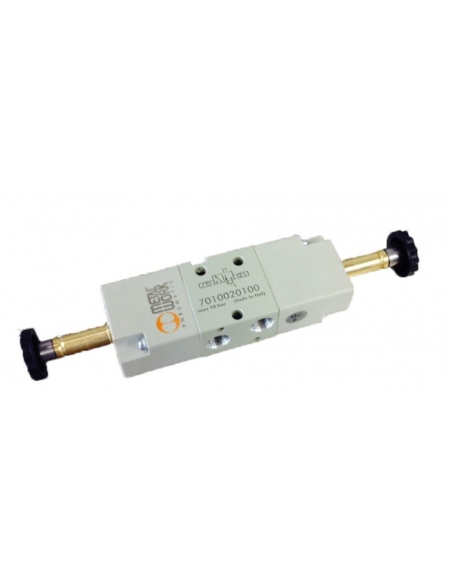

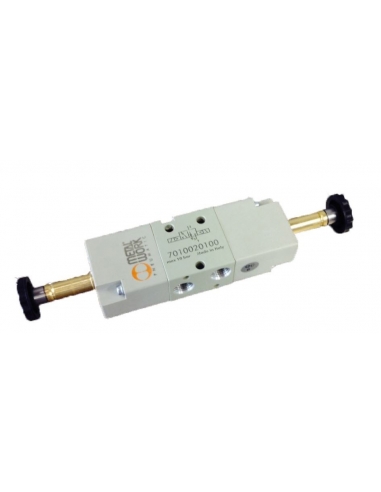

Pneumatic electrovalve of 1/4 3-way assisted bistable, for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with Ø8mm core.

Made of aluminum, compact size and high flow of air passage, short response time.

The feeding pressure must be applied to toa 2, use in socket 1 and exhaust in socket 3.

Coil for electrovalve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm.

Plastic connector 22 mm

The supply includes:

  • Electrovalve 1/4 3-way assisted bistable
  • Coil 24Vca 3,5VA
  • 22 mm connector

specifications:

  • Manufacturer of the electrovalve: Metal Work.
  • Manufacturer reference: 7020020300 - SOV 33 SEB OO
  • Type: 1/4-3/2 Assisted Bistable
  • Thread: G 1/4"
  • Voltage: 24Vca
  • Consumption: 3.5VA
  • Operating pressure: 0 bar÷10 bar
  • Minimum piltotaje pressure: 2.5 bar
  • Working temperature: -10°÷ +60°C
  • Nominal diameter: 5mm.
  • Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
  • Capacity at 6 bar ΔP 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.19kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
