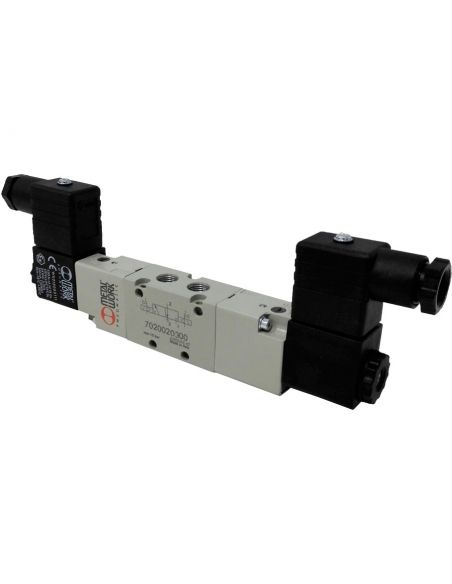

Solenoid valve 1/4 3 vias bistable assisted 230Vac 3.5VA - Metal Work

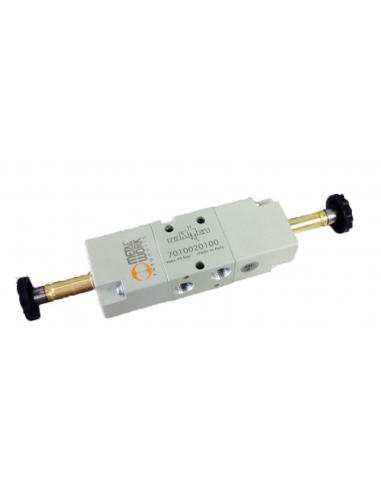

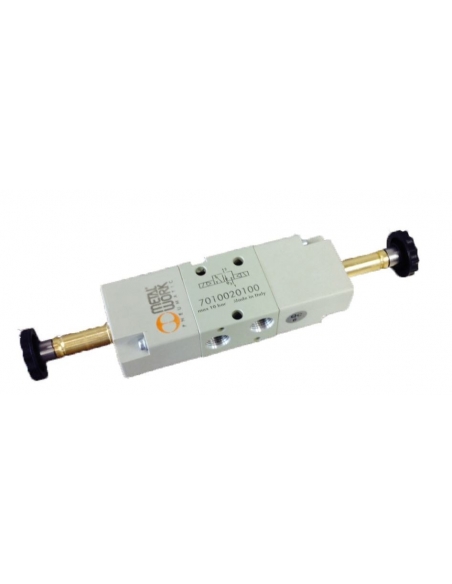

1/4 3-way assisted bile valve for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm.

Made of aluminum, compact size and high air passage flow, short response time.

The feed pressure must be applied to toa 2, use in socket 1 and exhaust in socket 3.

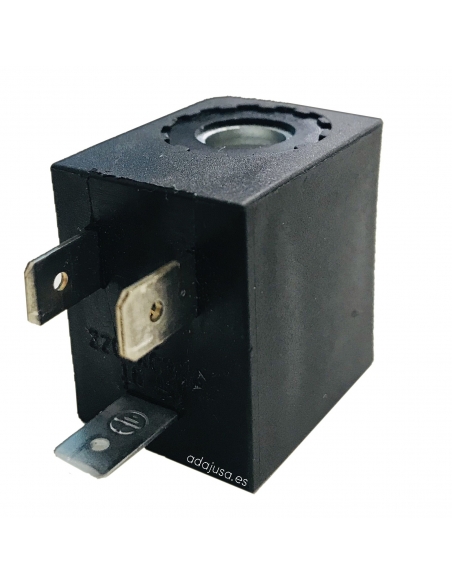

Coil for solenoid valve size 22mm, voltage 230Vca., with a consumption of 3.5VA, for cores of Ø8mm.

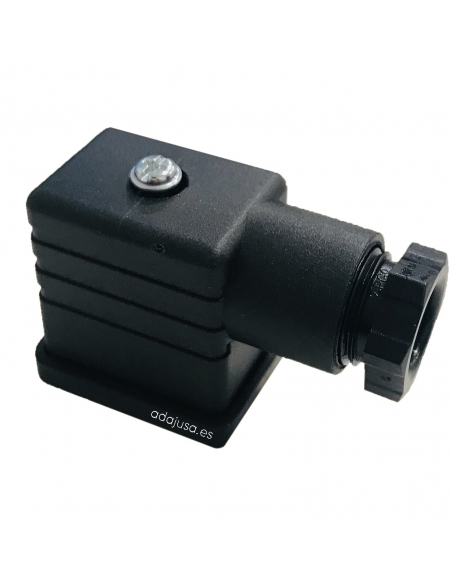

Plastic connector 22 mm

The supply includes:

• Solenoid valve 1/4 3 ways bistable assisted
• Coil 230Vca 3.5VA
• Connector 22 mm

Specifications:

• Solenoid valve manufacturer: Metal Work.
• Manufacturer reference: 7020020300 - SOV 33 SEB OO
• Type: 1/4-3/2 Assisted Bistable
• Thread: G 1/4"
• Voltage: 230Vca
• Consumption: 3.5VA
• Operating pressure: 0 bar÷10 bar
• Minimum piltotaje pressure: 2.5 bar
• Working temperature: -10°÷ +60°C
• Nominal diameter: 5mm.
• Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
• Capacity at 6 bar ΔP 1 bar: 550 Nl/min
• TRA/TRR at 6 bar: 15 ms / 35 ms
• Weight: 0,19kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
