Pack

Solenoid valve 1/4 5-way monostable 24Vdc 2W...

24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work

Solenoid valve connector size 22

1/4 5-way monostable solenoid valve without coil - Metal Work - adajusa.es

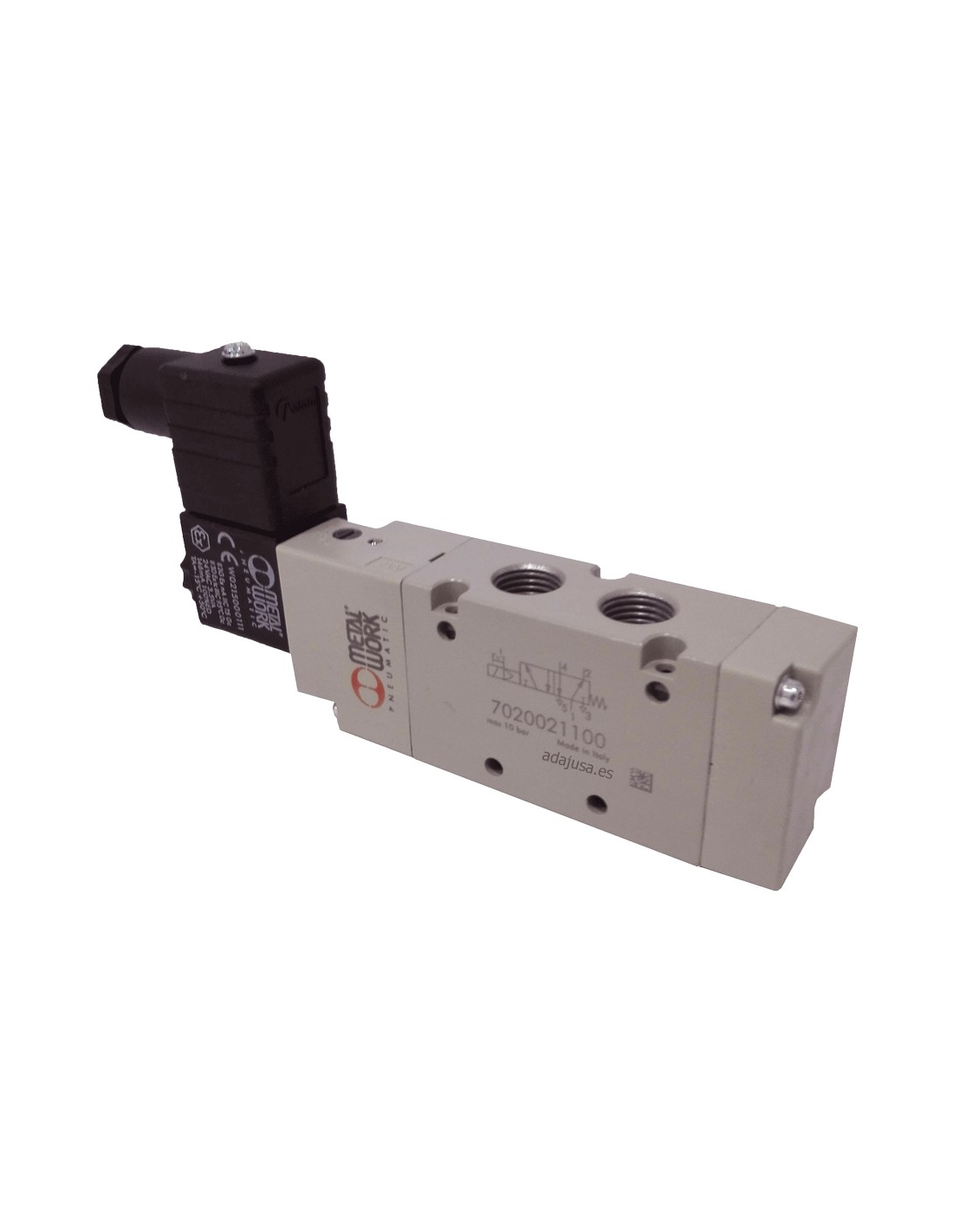

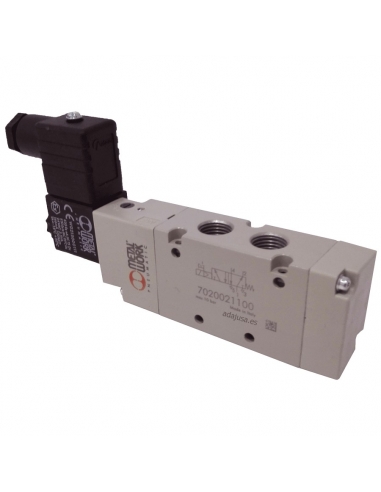

Solenoid valve 1/4 5-way monostable 24Vdc 2W Metal Work

24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work

Solenoid valve connector size 22

1/4 5-way monostable solenoid valve without coil - Metal Work - adajusa.es

Solenoid valve 1/4 5-way monostable 24Vdc 2W Metal Work

€74.38 Tax included

€61.47 tax excl.

1/4" 5-way monostable, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm. 22mm connector

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

1x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.38

1x

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€8.43

1x

solenoid valve 1/4 5 monostable roads - Metal Work - ADAJUSA

Electrovalve 1/4 5-way monostable without coil - Metal Work

€64.57

No queries yet, leave the first!

Pneumatic solenoid valve 1/4 5 way monostable. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve. The coil is not included in the supply.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm.

22 mm plastic connector

The supply includes:

Solenoid valve 1/4 5/2 monostable
Coil 24Vdc 2W
22mm connector

characteristics:

Manufacturer: Metal Work
Ref. solenoid valve: SOV35SOS00-7020021100.
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Voltage: 24Vdc
Consumption: 2W
Operating temperature: -10 ÷ +60
Nominal diameter: 7.5 mm
Conductance C Nl/min · bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min:1100
Monostable TRA/TRR at 6 bar ms: 19/45
Bistable TRA/TRR at 6 bar ms: 21/21
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

electroválvula 1/4-5/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
