Black selector switch with 3 short cam...

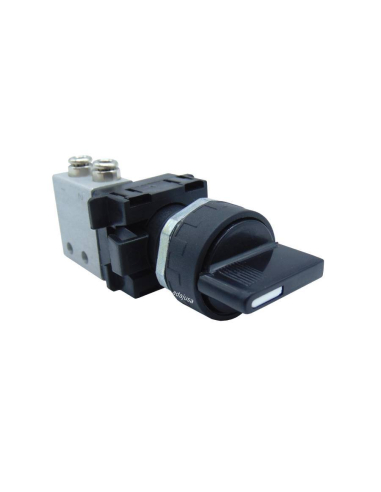

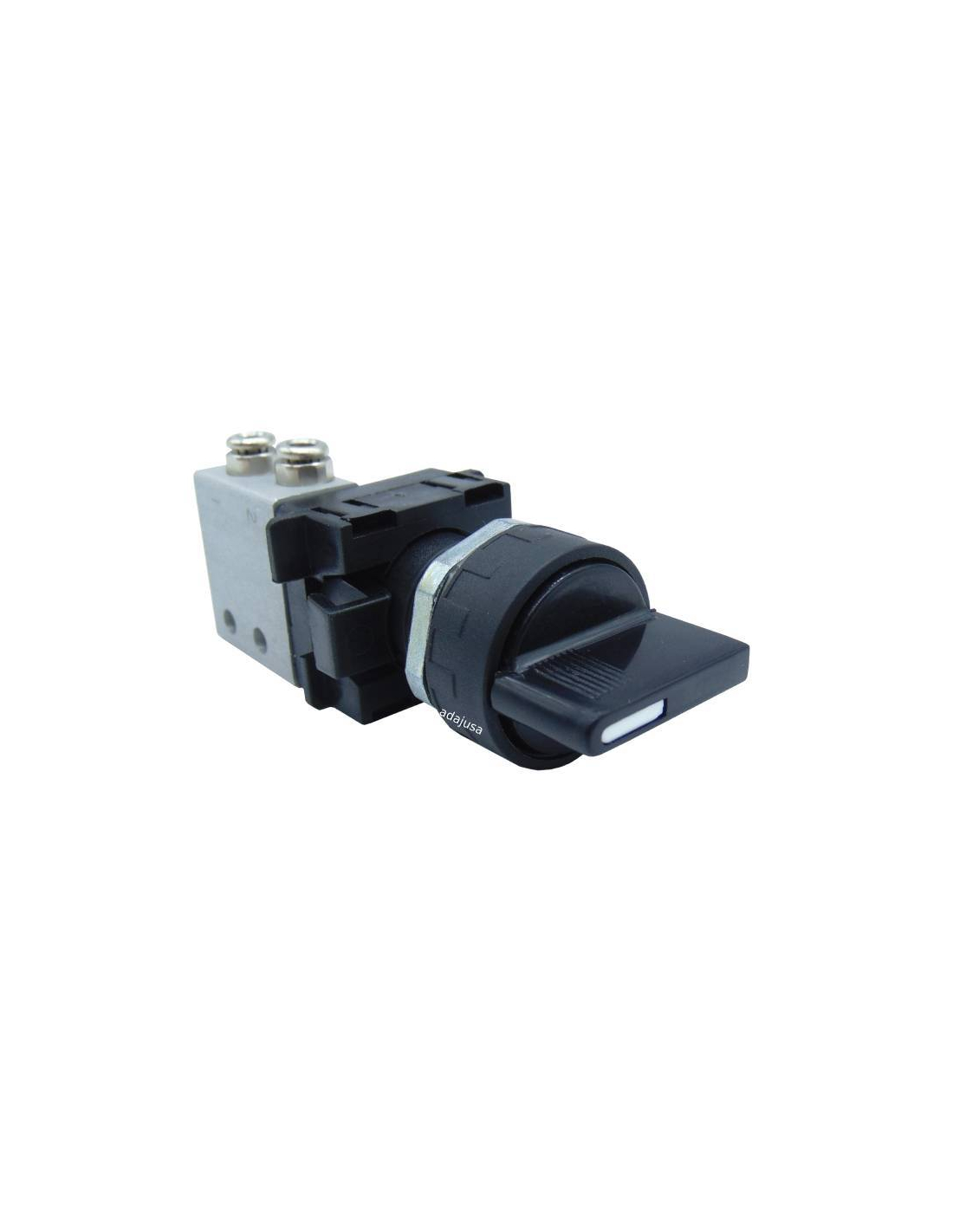

Black selector switch with 3 short cam positions and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 mm- Aig

Black selector switch with 3 short cam positions and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 mm- Aig

Name: Black selector switch with 3 short cam positions and strut valve: 3/2 NC side fittings Ø 4 mm - 3/2 NC side fittings Ø 4 mm- Aig
Brand: Aignep
SKU: PK-SELCO32NC3
Price: 34.485 EUR
Availability: PreOrder

€34.49 Tax included

€28.50 tax excl.

Pneumatic short cam 3 position selector (2-0-1), and normally open end-of-stroke valve closed (NC), fittings located on the side for 4 mm outside diameter pipe.

Logotipo Aignep NORMATIVAMICROVALVULA
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Double adapter for push button valve or selector valve - Aignep

€1.89

Black 3-position short-cam selector - black - 3 positions Aignep

€17.13

Limit switch 3/2 NC pneumatic strut 3/2 NC side fittings diameter 4 mm- Aignep

€15.46

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

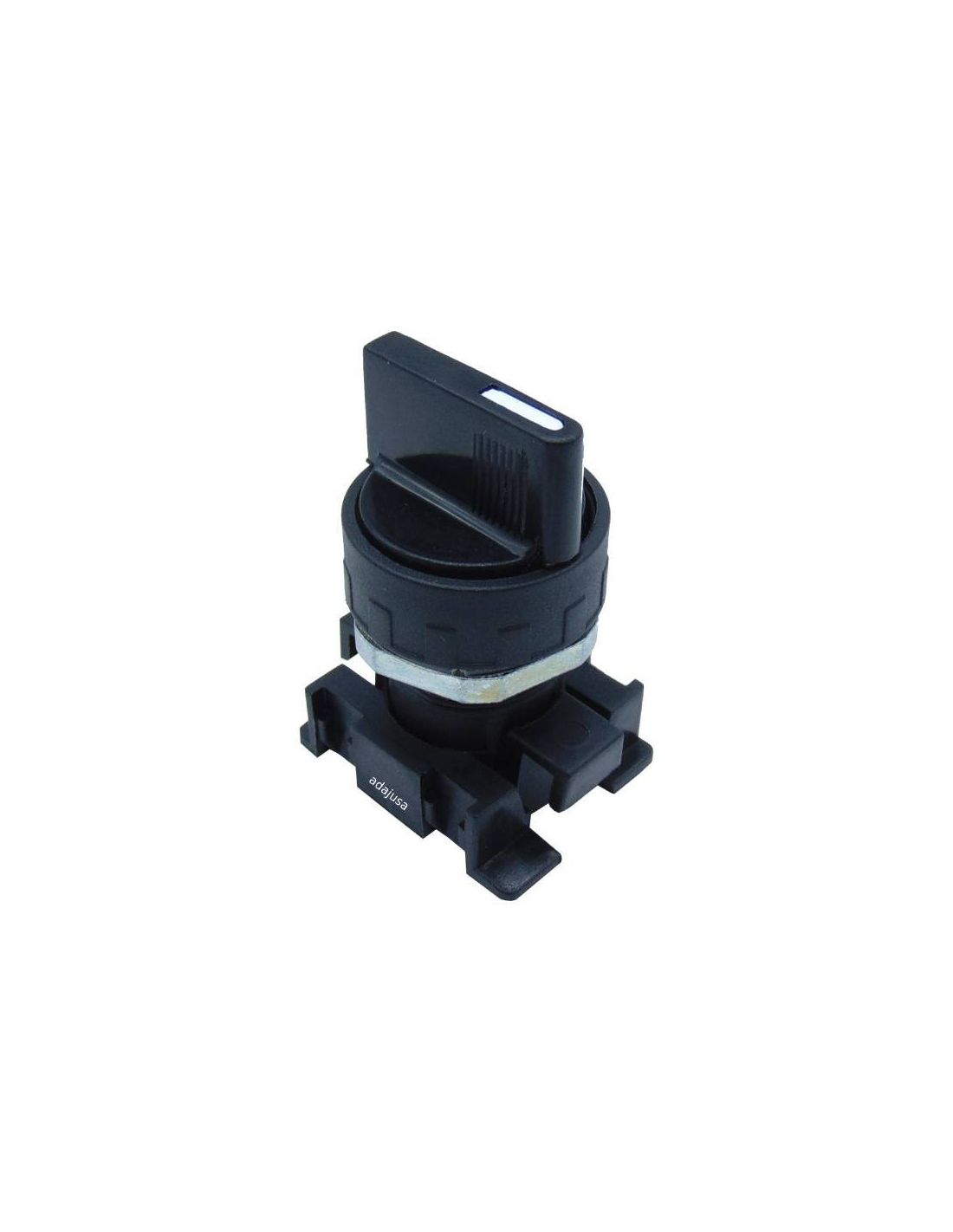

Short cam selector for limit switches, 3 positions (2-0-1). Adapter for the selector included.

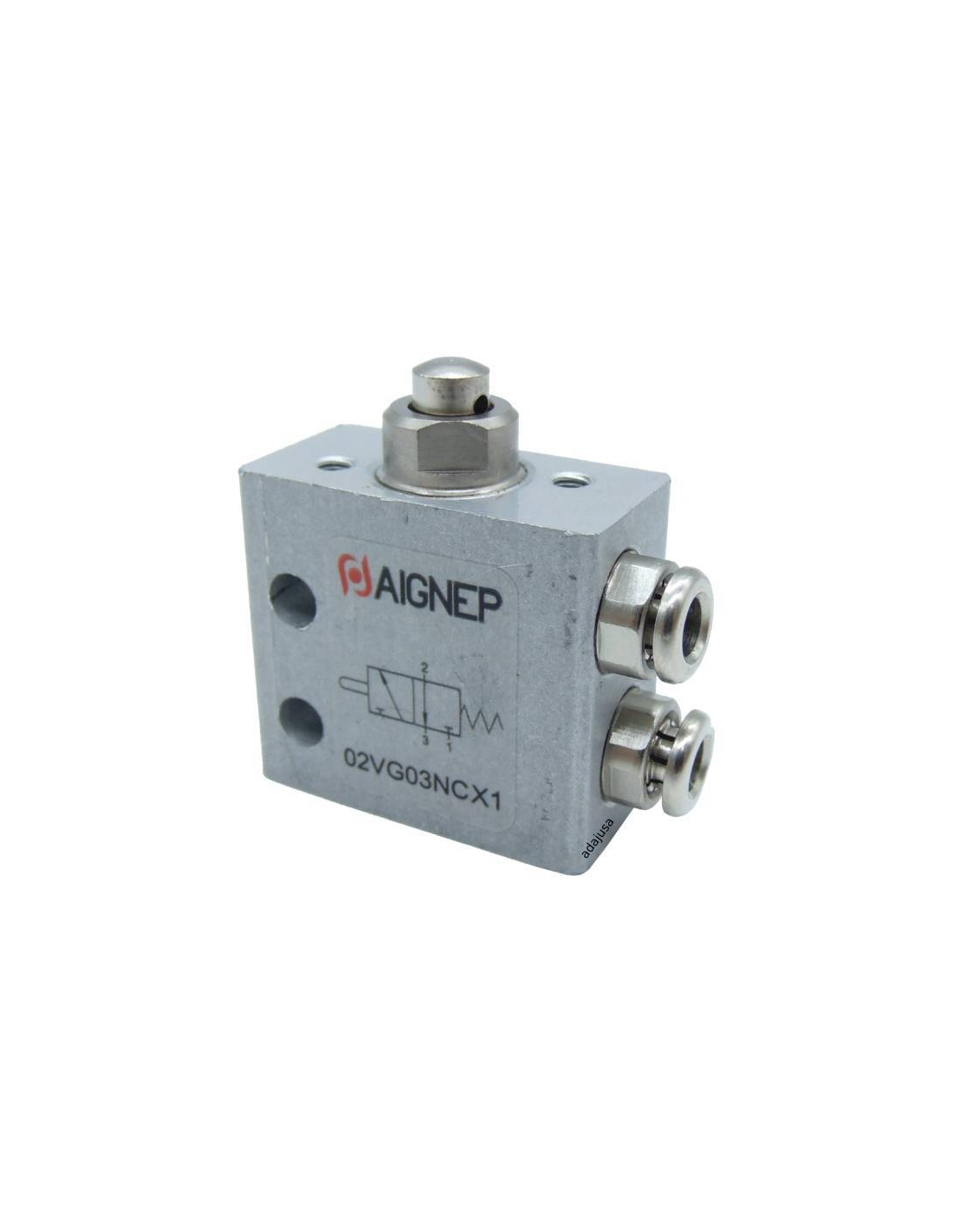

Limit switch pneumatic actuated by metal strut, with integrated quick-connect fittings on the side for 4mm external pipe diameter. The idle state of the limit switch valve is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

Selector body
Valve adapter (supplied with the selector)
NC limit switch valve with fittings on the side Ø 4 mm
Adapter for interface (valve-selector) including 4 nuts.

Valve characteristics:

Manufacturer: Aignep
Valve type: 3/2 Normally open closed (NC).
Type of limit switch actuation: metal strut.
Manufacturer's part number: 02VG03NCX1
Valve Body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Fittings: quick couplings for pipe diameter 4 mm side connection.
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60 °C
Flow rate at 6 bar ΔP 1 bar Nl/min: 100
Installation: in any position.

With the valve adapter it is possible to fit up to two valves at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to be added to the push button

02VG03NCB5

Captura de pantalla 2023-06-02 104407

Material for professional use, install in compliance with the regulations in force at the place of installation.
