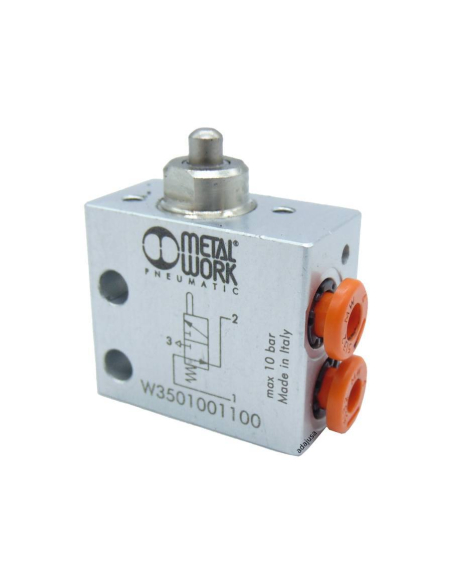

Limit Switch tyre 3/2 NO side fittings diameter 4 - Metal Work

€20.68 Tax included

€17.09 tax excl.

W3501001100

limit switch pneumatic with push-button drive, fittings located on the side for outer diameter tube of 4 mm. The valve type of the limit switch is normally open (NA).

Reference: W3501001100



Logotipo Metal WorkRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch metal embolus drive tire, with integrated quick-connect fittings for 4mm outer diameter tube. Resting state of the valve of the limit switch is normally open (NO), that is, without pressing there is presence of air in the exit, the air can pass, when it is activated, the air stops passing and the air of the outlet circuit communicates with the exhaust.

  • Manufacturer: Metal Work
  • Valve type: 3/2 Normally open (NO).
  • Type of limit switch drive: metal front piston.
  • Manufacturer reference: W3501001100 (VME2-01 NO Ø 4 )
  • Reduced drive force.
  • Signal speed and pressure.
  • Mechanical drive.
  • Material type: metallic.
  • Fittings: fast for tube diameter 4mm side connection.
  • Installation: in any position.
  • Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
  • Working pressure (bar): 0.5 ÷ 10
  • Working temperature (°C): -10° ÷ +60
  • Nominal diameter (mm) 2.5
  • Conductance C (Nl/min · bar): 16.5
  • Critical ratio b (bar/bar): 0.03
  • Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
  • Capacity at 6 bar ΔP 1 bar (Nl/min): 60
  • Strut drive force at 6 bar (N): 8
  • Lubricant recommended: ISO and UNI FD22

Dimensiones final de carrera neumatico metal work lateral


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
