Limit Switch high cam piston tyre 1/8 3/2 NC -...
Limit Switch high cam piston tyre 1/8 3/2 NC - Mindman

Limit Switch high cam piston tyre 1/8 3/2 NC - Mindman

€24.93 Tax included

€20.60 tax excl.

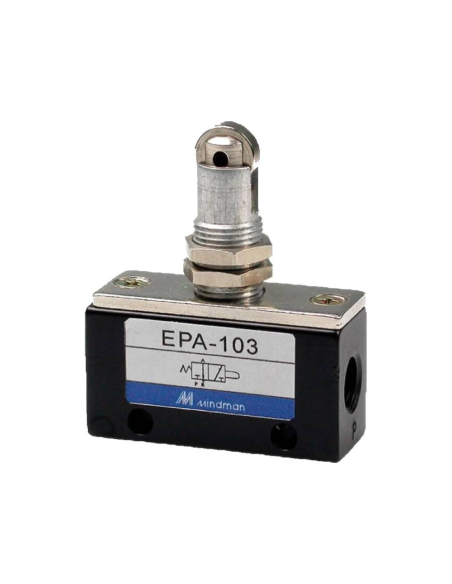

Limit Switch pneumatic,high piston with roller, mechanically operated pneumatic valve, 1/8 thread 3 ways normally closed (NC). The limit switch is driven by a button with a metal roller.

Reference: 281EPA103

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic stroke end with high piston with roller, pneumatic valve of mechanical actuation by pushbutton with metal roller. End-of-stroke connections are 1/8" threaded. The valve is normally closed 3-way (NC), when it is not pressed there is no pressure at the outlet and the outlet is communicated with the exhaust, when pressed, air pressure appears at the outlet.

Technical details:

  • Manufacturer: Mindman.
  • Manufacturer's Reference: EPA-103.
  • Valve type: 1/8-3/2 Monostable.
  • Thread type: G 1/8".
  • Drive type: High piston with roller.
  • Number of tracks: 3.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0÷9 Kgr/cm2.
  • Maximum pressure: 9 Kgr/cm2.
  • Working temperature: -5 to 60oC.
  • Material: Alumio and steel.
  • Weight: 67g.

Dimensiones final de carrera neumático con pulsador roldana Mindman EPA-103
