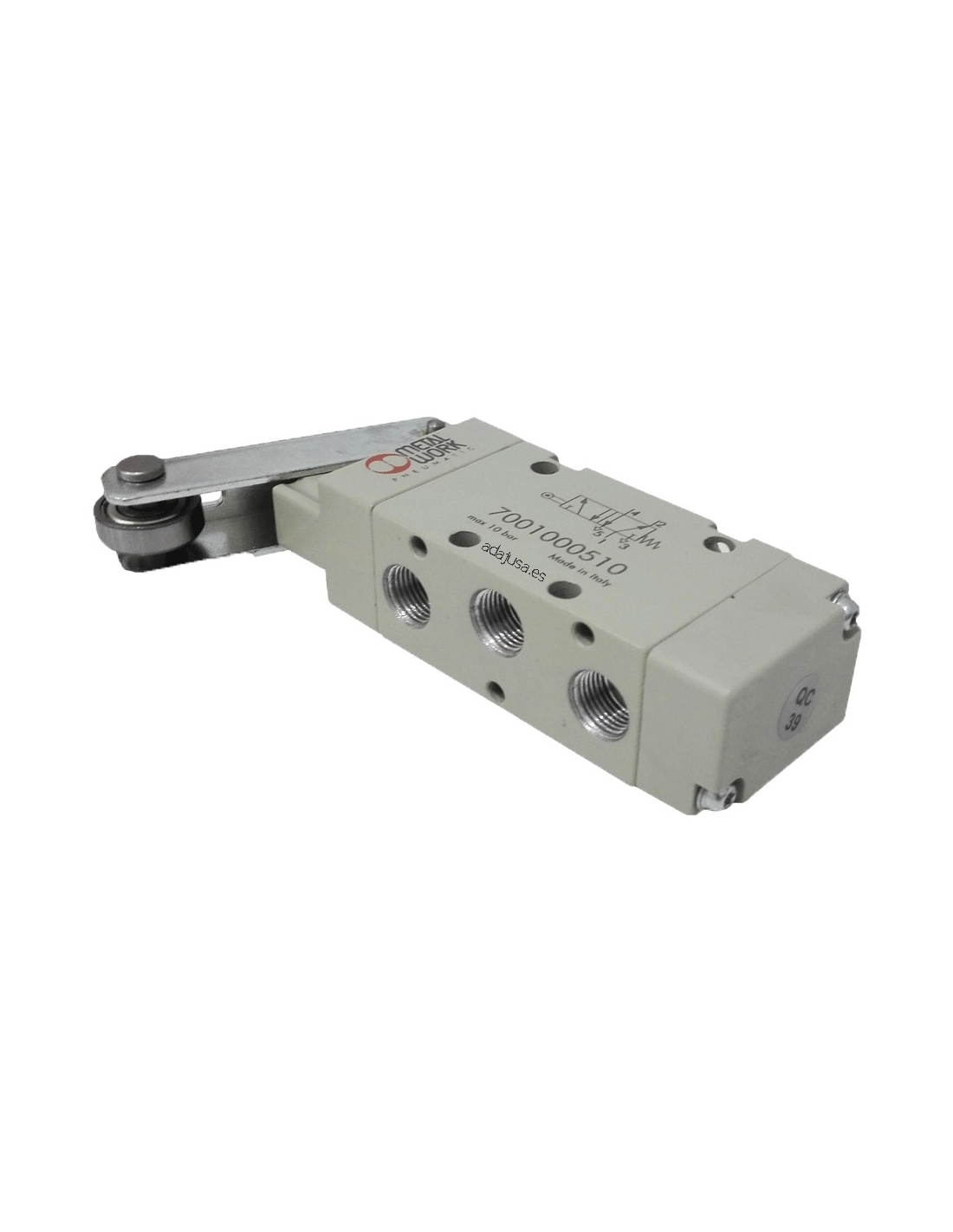

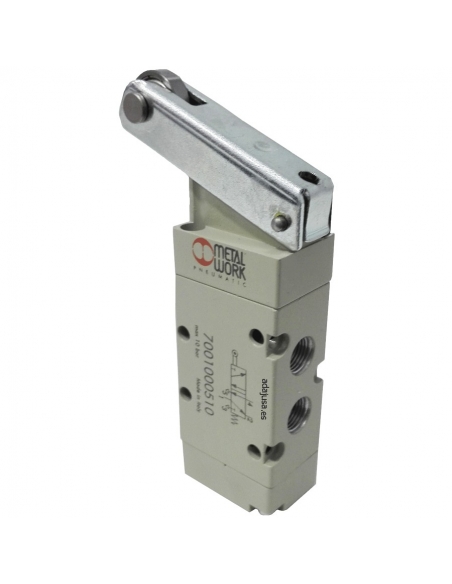

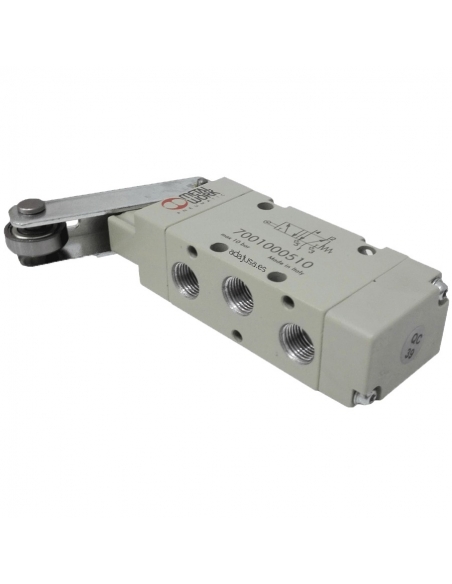

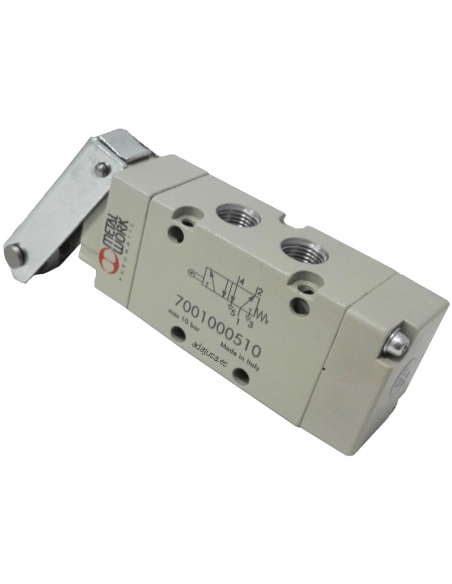

Limit Switch 1/8 5/2 lever roller - Metal Work

€42.05 Tax included

€34.75 tax excl.

7001000510

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is driven by a roller lever.

Reference: 7001000510

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

limit switch pneumaticvalve, pneumatic valve with mechanical drive by lever with metal roller. The connections of the limit switch are by means of a 1/8" thread. The valve is 5-way and 2-position 5/2.

Manufacturer: Metal Work
Reference: MEV 25 BRS OO - 7001000510
Thread valve mouths: 1/8
Drive force of 6 bar:
- Direct control version : 50
- servo-piloted version : 6
Operating pressure:
- direct control version ba: Vacio ÷ 10
- Servo-piloted version ba: 2.5 ÷ 10
Operating temperature °: -10 ÷ +60
Nominal diameter m: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min : 550

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Mechanical valves sheet

Download (478.69KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Limit Switch pneumatic roller 1/8 7001000500 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch mechanical drive 1/8 3-way roller - Metal Work

€38.36 (€31.70 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is driven by a roller lever. Reference: 7001000500 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch pneumatic roller 1/8 3/2 7001000600 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch 1/8 3/2 one-way roller lever - Metal Work

€39.24 (€32.43 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional drive by lever with roller. Reference: 7001000600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Limit Switch pneumatic roller 1/8 5/2 7001000610 | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch 1/8 5/2 one-way roller lever - Metal Work

€42.27 (€34.93 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is unidirectional drive by roller lever. Reference: 7001000610 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 3-way Metal Work strut - ADAJUSA

Pneumatic Limit switchs

Limit Switch 1/8 3-way tyre strut - Metal Work

€27.43 (€22.67 tax excl.)

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 23 TAS NC - 7001000100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 5-way tyre - Metal Work - adajusa.es

Pneumatic Limit switchs

Limit Switch 1/8 5-way strut tyre - Metal Work

€30.47 (€25.18 tax excl.)

limit switch pneumatic drive with pushbutton drive, 1/8" 5-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 25 TAS OO - 7001000110 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Pneumatic stroke end 1/8 3/2 EPA105L | Buy Mindman adajusa

Pneumatic Limit switchs

Limit Switch long cam tire with roller 1/8 3/2 NC - Mindman

€22.35 (€18.47 tax excl.)

Limit Switch long cam tire with roller,mechanically operated pneumatic valve with cam with metal roller, thread 1/8 3 ways normally closed (NC).Reference: 281EPA105L Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit switch servo-driven strut tire 1/8 5/2 monostable with spring return - Aignep | ADAJUSA | price

Limit switch servo-driven strut tire 1/8 5/2 monostable with spring return - Aignep | ADAJUSA | price 2

Pneumatic Limit switchs

Limit switch servo-piloted strut tire 1/8 5/2 monostable with spring-return - Aignep

€45.07 (€37.25 tax excl.)

Limit switch pneumatic of 1/8 5 way and 2 positions, for mounting with emergency push button or similar. Actuated by servo-piloted strut. Series: 01VReference: 01VVV050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch pneumatic lever front roller 1/8 3/2 7001000900 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch 1/8 3/2 lever extendable roller - Metal Work

€80.77 (€66.75 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional lever drive with extendable roller. Reference: 7001000900 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit switch short roller tire 1/8 3/2 NC monostable with spring return - Aignep: ADAJUSA : price

Pneumatic Limit switchs

Limit switch short roller pneumatic 1/8 3/2 NC monostable with spring return - Aignep

€28.42 (€23.49 tax excl.)

Limit switch pneumatic 1/8 3 way and 2 positions, for mounting with emergency push button or similar. Actuated by mechanical spring return roller. Series: 03VReference: 03VR03NC02 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

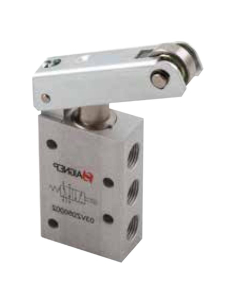

Limit switch long roller tire 1/8 5/2 monostable with spring return Aignep | ADAJUSA | price

Pneumatic Limit switchs

Limit switch long roller tire 1/8 5/2 monostable with spring return - Aignep

€35.66 (€29.47 tax excl.)

Limit switch pneumatic 1/8 5 way and 2 positions, for mounting with emergency push button or similar. The limit switch is operated by means of a lever with roller. Series: 03VPart number: 03VZ050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 3/2 valve for | pushbutton mounting ADAJUSA | price

Pneumatic Limit switchs

Limit Switch 1/8 3/2 NC pneumatic for panel actuators - Metal Work

€50.61 (€41.83 tax excl.)

limit switch pneumatic valve 1/8 3/2 for mounting with emergency pushbutton or similar Reference: 7010001800 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit switch red push button tire 1/8 5/2 monostable with spring return - Aignep | ADAJUSA | price

Pneumatic Limit switchs

Limit switch red push button pneumatic 1/8 5/2 monostable with spring-return - Aignep

€31.76 (€26.25 tax excl.)

Limit switch pneumatic 1/8 5 way and 2 positions, for mounting with emergency push button or similar. The limit switch is actuated by means of the red push button. Series: 03VPart number: 03VH050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch pneumatic roller 1/8 3/2 7001000600 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch 1/8 3/2 one-way roller lever - Metal Work

€39.24 (€32.43 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional drive by lever with roller. Reference: 7001000600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Limit Switch tyre 3/2 NO M5 W3501001110 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch tyre 3/2 NO side fittings diameter M5 - Metal Work

€20.17 (€16.67 tax excl.)

limit switch pneumatic with pushbutton drive, fittings located on the side for M5 outer diameter tube. The valve type of the limit switch is normally open (NA). Reference: W3501001110 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic stroke end 1/8 3/2 EPA-106 | Buy Mindman adajusa

Pneumatic Limit switchs

Limit Switch tyre cams 1 direction 1/8 3/2 NC - Mindman

€27.00 (€22.31 tax excl.)

Limit Switch pneumatic,cam 1 direction, mechanically operated pneumatic valve, 1/8 3-way thread normally closed (NC). The limit switch is driven by a button with a metal roller.Reference: 281EPA106 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 5-way tyre - Metal Work - adajusa.es

Pneumatic Limit switchs

Limit Switch 1/8 5-way strut tyre - Metal Work

€30.47 (€25.18 tax excl.)

limit switch pneumatic drive with pushbutton drive, 1/8" 5-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 25 TAS OO - 7001000110 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit switch pneumatic strut 3/2 NC side fittings diameter 4 mm - Aignep | ADAJUSA : price

Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC side fittings diameter 4 mm- Aignep

€16.67 (€13.78 tax excl.)

Limit switch pneumatic strut pneumatic 3 way and 2 positions, monostable, normally closed (NC) and fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency pushbutton or similar. Series: 02VPart no.: 02VG03NCX1 Representative image for illustrative purposes, the item supplied will correspond to the...

Limit Switch pneumatic 3/2 NC M5 Metal Work | ADAJUSA | price

Limit Switch pneumatic 3/2 NC M5 Metal Work | ADAJUSA | price 2

Pneumatic Limit switchs

Limit Switch tyre 3/2 NC rear fittings diameter M5 - Metal Work

€17.27 (€14.27 tax excl.)

limit switch pneumatic with pushbutton drive, fittings (axial connections) located at the rear for 4 mm outer diameter tube. The valve type of the limit switch is normally closed (NC). Reference: W3501000111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch tyre piston NC 3/2 diameter 4 Metal Work |ADAJUSA | price

Pneumatic Limit switchs

Limit Switch tire piston NC 3/2 diameter 4 - Metal Work

€20.15 (€16.65 tax excl.)

Limit Switch pneumatic,fittings located on the side, for tube outer diameter of 4 mm. The valve type of the limit switch is normally closed (NC). Reference: W3501001401 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 3-way Metal Work strut - ADAJUSA

Pneumatic Limit switchs

Limit Switch 1/8 3-way tyre strut - Metal Work

€27.43 (€22.67 tax excl.)

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 23 TAS NC - 7001000100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 5/2 valve for | push-button mounting ADAJUSA | price

Pneumatic Limit switchs

Pneumatic limit switch 1/8 5/2 for panel actuators - Metal Work

€55.35 (€45.74 tax excl.)

limit switch pneumatic valve 1/8 5/2 for mounting with emergency pushbutton or similar Reference: 7010001900 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Selector 2 metal positions 1 open contact (NA) complete

Metal electric selectors

2-position metal selector 1 complete open contact (NO)

€3.75 (€3.10 tax excl.)

Metallic electric selector with short lever, 2 maintained positions, 1 open contact (NO). The supply includes the complete selector with one open contact.Reference: NYBD21KST Representative image for illustrative purposes, the item supplied will correspond to the indicadas.3.12 specifications.3.12

Pneumatic stroke end 1/8 3/2 MVMC-210-6-3R1 Price Mindman

Pneumatic Limit switchs

Limit Switch pneumatic 1/8 3/2 lever roller - Mindman

€31.35 (€25.91 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is operated by roller lever. The limit switch can be used as normally open (NA) or closed (NC).Reference: 281MVMC21006A3R1 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

H60 1/8 CSA-18-OC support kit Metal Work | ADAJUSA | price

H60 1/8 CSA-18-OC support kit Metal Work | ADAJUSA | price 2

Solenoid valves 1/8

Support Kit H60 1/8 CSA-18-OC - Metal Work

€14.91 (€12.32 tax excl.)

H60 1/8" bracket kit for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0221000191 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

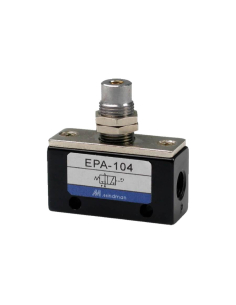

Pneumatic actuator 1/8 3/2 EPA-104 | Buy Mindman adajusa

Pushbuttons and pneumatic actuators

Pneumatic actuator 1/8-3/2 - Mindman

€27.00 (€22.31 tax excl.)

Pneumatic button , mechanically actuated pneumatic valve , 1/8 3-way thread. The limit switch is activated by a manual button with 2 fixed positions.Reference: 281EPA104 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Filter-regulator 1/4 metallic with pressure gauge - Mindman - ADAJUSA

Filter-regulator 1/4 metallic with pressure gauge - Mindman - ADAJUSA 2

Delivery in 3 days.

Filter groups of 1/4 FR-L

Filter-regulator of pressure 1/4 metallic with pressure gauge - Mindman

€29.98 (€24.78 tax excl.)

Filter unit with pneumatic pressure regulator 1/4 metallic, series 200, plastic cup, with pressure gauge of diameter 40 and metal fixing square. Reference:281MAFR200L08ARepresentative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Fixing bracket for Aginep FRL MINI series filtering group : ADAJUSA : price

Accessories for filtration groups

Fixing bracket for filtering group 1/8 and 1/4 FRL MINI series - Aignep

€2.42 (€2.00 tax excl.)

Angle bracket for fixing filtering group and pneumatic regulator 1/8" and 1/4" FRL MINI series. Part number: REG16105000NE Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Rear joint male for diameter cylinder 100 AIRON - adajusa.es

Pneumatic cylinder accessories

Rear joint male cylinder diameter 100

€25.00 (€20.66 tax excl.)

Male rear joint for pneumatic cylinder diameter 100mm.Reference: CM.100Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

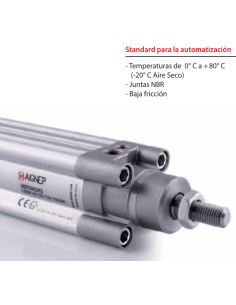

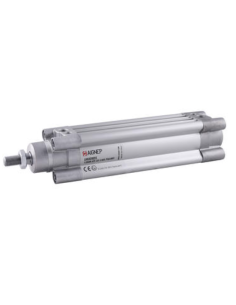

Pneumatic cylinder diameter 100mm stroke 300 standard LH-100-0300 Aignep: ADAJUSA : price
