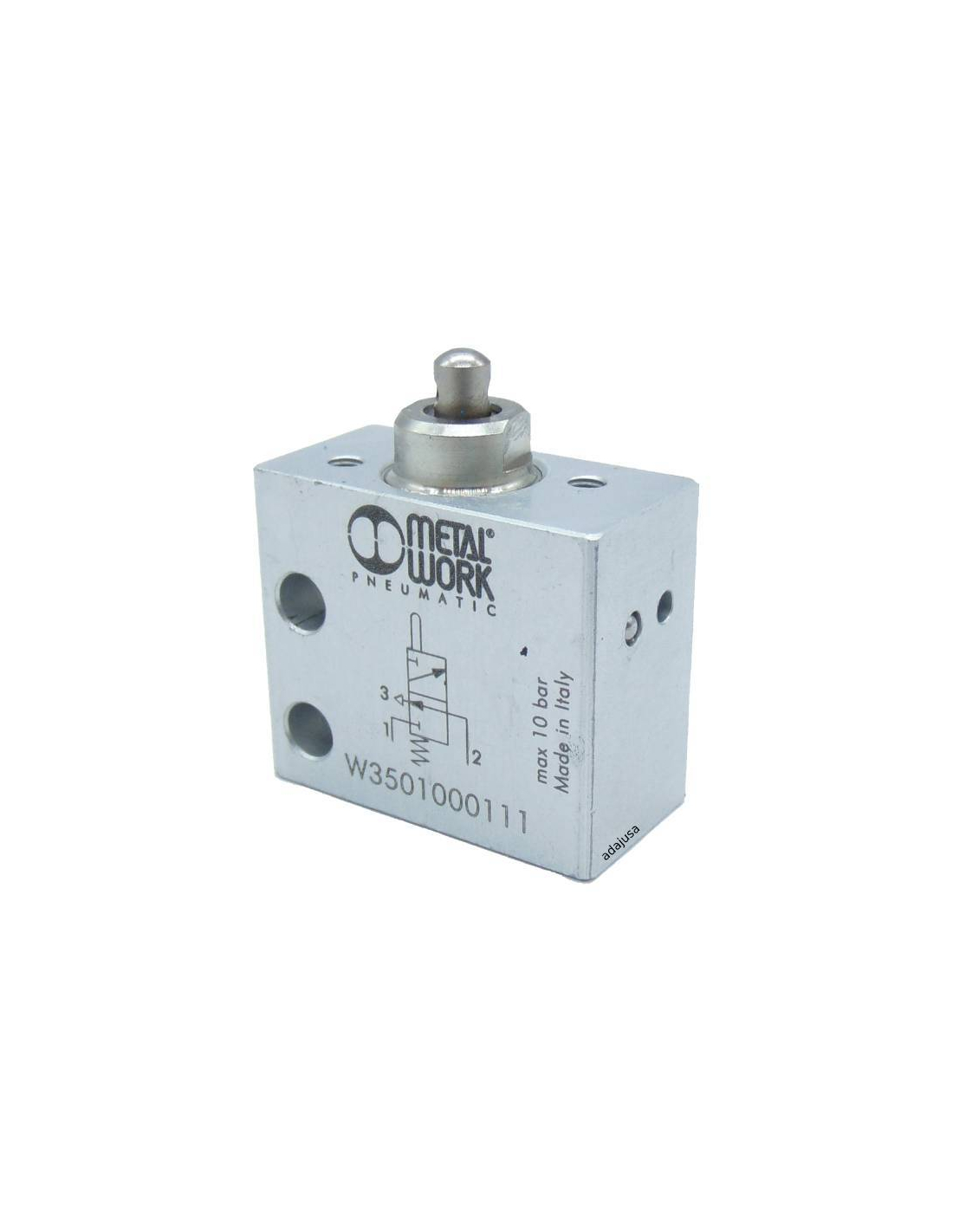

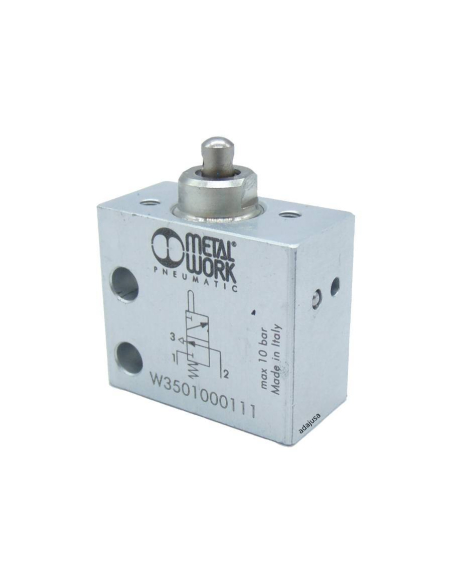

Limit Switch tyre 3/2 NO side fittings diameter M5 - Metal Work

Name: Limit Switch tyre 3/2 NO side fittings diameter M5 - Metal Work
Brand: Metal Work
SKU: W3501001110
Price: 19.5778 EUR
Availability: PreOrder

€19.58 Tax included

€16.18 tax excl.

limit switch pneumatic with pushbutton drive, fittings located on the side for M5 outer diameter tube. The valve type of the limit switch is normally open (NA).

Reference: W3501001110

Logotipo Metal Work Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch metal embolus drive tire, with integrated quick-connect fittings for M5 outer diameter tube. Resting state of the valve of the limit switch is normally open (NO), that is, without pressing there is presence of air in the exit, the air can pass, when it is activated, the air stops passing and the air of the outlet circuit communicates with the exhaust.

Manufacturer: Metal Work
Valve type: 3/2 Normally open (NO).
Type of limit switch drive: metal front piston.
Manufacturer reference: W3501001100 (VME2-10 NO M5 )
Reduced drive force.
Signal speed and pressure.
Mechanical drive.
Material type: metallic.
Fittings: fast for tube diameter M5 side connection.
Installation: in any position.
Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
Working pressure (bar): 0.5 ÷ 10
Working temperature (°C): -10° ÷ +60
Nominal diameter (mm) 2.5
Conductance C (Nl/min · bar): 16.5
Critical ratio b (bar/bar): 0.03
Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
Capacity at 6 bar ΔP 1 bar (Nl/min): 60
Strut drive force at 6 bar (N): 8
Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
