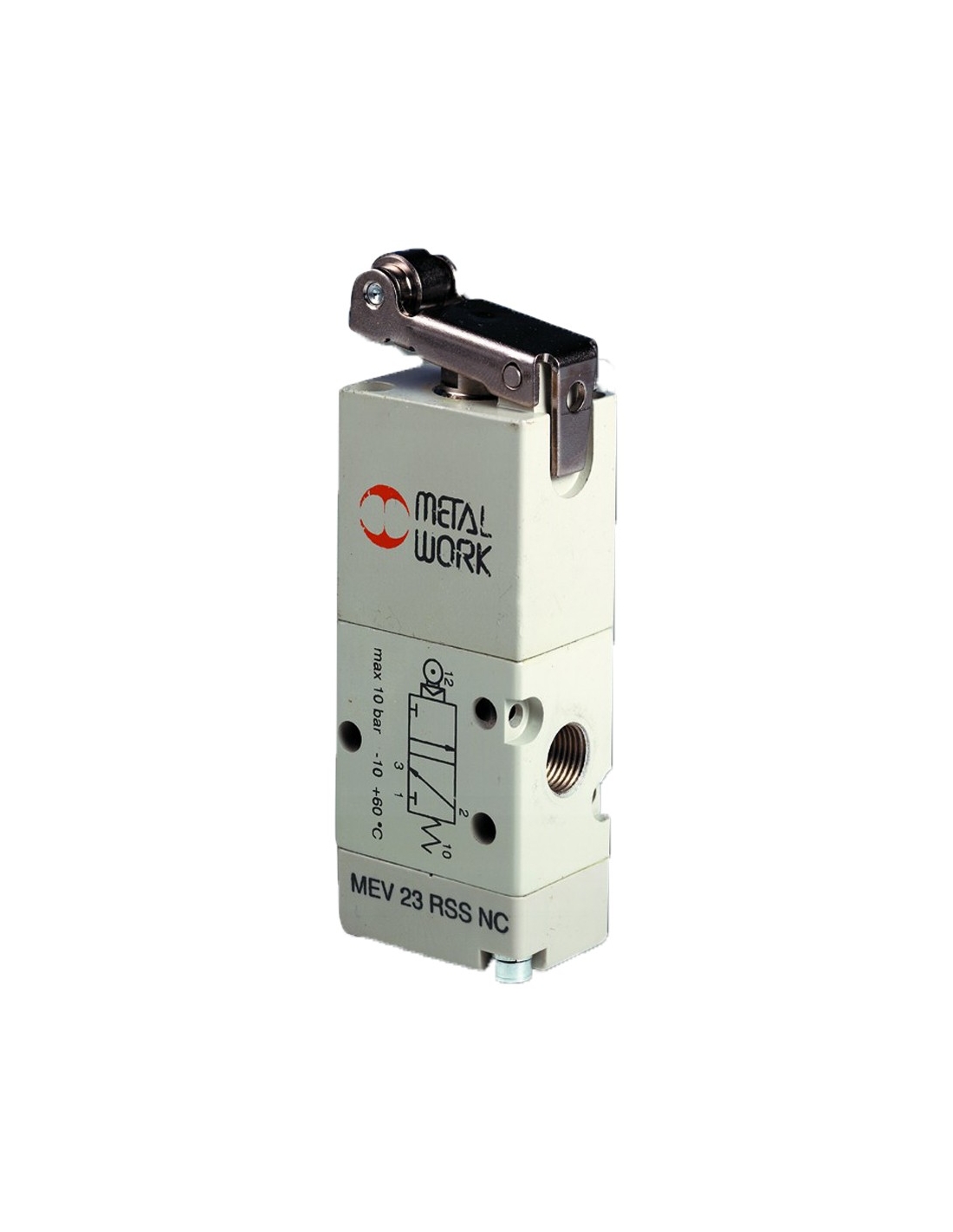

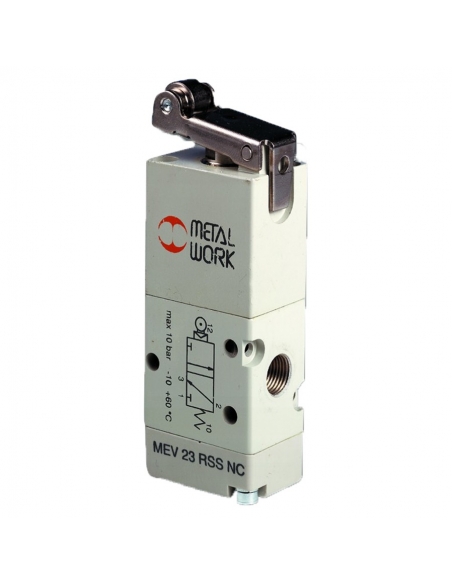

Limit Switch 1/8 3-way servo-piloted roller - Metal Work

€50.06 Tax included

€41.37 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is operated by lever with sensitive roller.

Reference: 7001000400

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch pneumaticvalve, pneumatic valve with mechanical drive by lever with metal roller. The connections of the limit switch are by means of a 1/8" thread. The valve is 3-way and 2-position 3/2.

  • Manufacturer: Metal Work
  • Reference: MEV 23 RRS NC - 7001000400
  • Thread valve mouths: 1/8
  • Drive force of 6 bar:
    • Direct control version : 50
    • servo-piloted version : 6
  • Operating pressure:
    • direct control version ba: Vacio ÷ 10
    • Servo-piloted version ba: 2.5 ÷ 10
  • Operating temperature °: -10 ÷ +60
  • Nominal diameter m: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min : 550

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
